Copy of BIG BOY EVO Series

Solar LED floodlight
BIG BOY EVO Series

The BIG BOY EVO Solar LED Floodlight series with detector is completely autonomous thanks to its internal battery and its associated monocrystalline solar panel. It is made of robust and weather-resistant materials certified IP65. Suitable for securing your isolated gazebo, access to your driveway, parks or garden far from a power outlet, this security lighting model integrates a high-performance motion sensor with a lighting autonomy of more than 15 hours.


100% solar outdoor lighting


Using the IP65 BIG BOY EVO solar floodlight means choosing powerful, reliable and environmentally friendly lighting. The light runs on solar energy. The solar panel and the cable required for installation are included in the pack. You can install this solar floodlight in an outdoor location thanks to its IP65 waterproof rating. This indication certifies that the product is perfectly waterproof against water and dust infiltration. This solar floodlight is suitable for indoor use thanks to its 5-meter offset solar panel. It illuminates over a wide diffusion angle of 160° to offer you a beautiful, uniform and comfortable light for the eyes. Installation remains very simple for a lifespan of more than 50,000 hours without any electricity costs. This type of floodlight with detector is very popular on shop fronts, building facades, parking lots, streets, public squares or even advertising signs.


Save even more with sensor mode


The remote control allows you to select one of the predefined lighting modes according to the characteristics that suit you. The automatic mode offers you full-power lighting from dusk to dawn. With the motion sensor mode, you can choose to activate the light only if movement is detected. Another option: set a standby light at 30% with switching to 100% as soon as a person enters the field of vision. In addition, you have the possibility to configure the duration of the floodlight as well as the intensity of the light according to your preferences. The settings are made remotely with the remote control over a range of up to 20 meters. As a bonus, a single remote control can be linked to several floodlights with the "Match" option.


The BIG BOY EVO solar LED floodlights are available in different powers: 200 W / 350 W / 500 W / 700 W. All models in this series have a full 2-year warranty.


POINTS FORTS
1 -

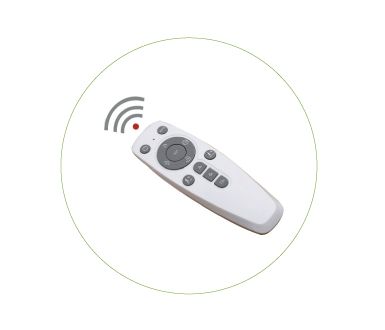

Télécommande radio fréquence 2.4g, portée 20 mètres

The radio frequency remote control allows 360 degree long distance signal transmission, much better performance than infrared sensor remote control).

2 - Motion detector

In addition to normal lighting, it can be safety lighting with several modes: Floodlight completely off + 100% on for 1 minute upon detection.


It can also be constant lighting or standby at 30% + 100% upon detection.

3 -Battery indicator

The small indicator light displays in different colors depending on the battery capacity.

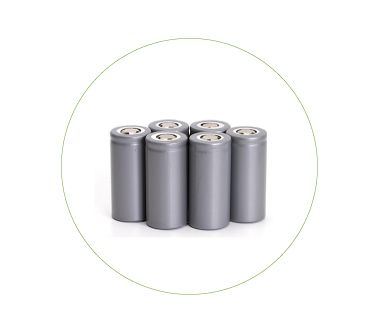

4 -Quality battery

Dernière génération de batterie haute capacité LifePO4

5 -New support design

Quick and easy installation

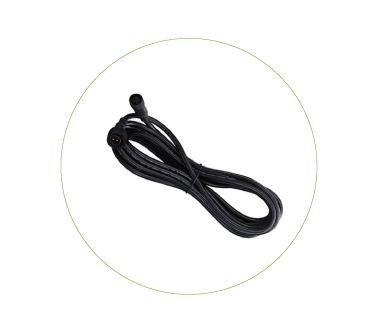

6 -Adapter cable

2*0.75mm² individual cable of 4.5 meters to connect the solar panel and the luminaire, this makes the installation easier and more flexible. Total length between the panel and the spotlight = 5 meters (25cm of existing cable on the spotlight and the panel

Spécifications techniques générales
Angle
Norme
Protection index
Couleur de température
Durée de vie minimum
Fréquence
Material
Longueur du câble
Charging time
   Durée d'éclairage
Maximum recommended installation height
Connection cable
Operating temperature
Mode
Certification
Garantie
Fiche Technique
160°
IP65
IK08
4000 k
50,000 Hours
50 - 60 Hz
Aluminium moulé sous pression
5 mètres
5 - 6 hours of sunshine
>15 hours
6 meters
5 mètres - 0,75mm2
-30℃ / 70℃
- Automatic :
Constant lighting at 100% power from dusk until dawn or complete battery discharge. (light intensity and time range can be changed).
- Programmable ignition time:
4H, 6H and 12H.
Lighting intensity: Variable light output from 25%, 50%, 75% to 100%.
- Mode 0% - 100%: Solar lighting in detection only at 100% of its power for 1 minute when a person is detected.
- Mode 30% - 100%: Constant solar lighting at 30% of its power and 100% in 1 minute detection
This series works automatically at nightfall or manually during the day using its remote control.
CE & ROHS
3 years
Fiche Technique PDF
Angle
160°
Norme
IP65
Protection index
IK08
Couleur de température
4000 k
Durée de vie minimum
50,000 Hours
Fréquence
50 - 60 Hz
Material
Aluminium moulé sous pression
Longueur du câble
5 meters
Charging time
5 - 6 hours of sunshine
Lighting duration
>15 hours
Maximum recommended installation height
6 meters
Connection cable
5 mètres - 0,75mm2
Operating temperature
-30℃ / 70℃
Mode
- Automatique :
Eclairage constant à 100% de puissance de la tombée de la nuit jusqu’à l’aube ou décharge complète de la batterie. ( intensité lumineuse et plage horaire modifiable )
- Temps d’allumage programmable : 4H, 6H et 12H.
Intensité d’éclairage : Puissance lumineuse variable de 25%, 50%, 75% à 100%.
- Mode 0% - 100% :
Éclairage solaire en détection uniquement à 100% de sa puissance pendant 1 minute lorsqu’une personne est détectée.
- Mode 30% - 100% :
Éclairage solaire constant à 30% de sa puissance et 100% en détection 1 minute
Cette série fonctionne automatiquement à la tombée de la nuit ou manuellement la journée grâce à sa télécommande.
Certification
CE & ROHS
Guarantee
3 years
Technical Sheet
Fiche Technique PDF
DETAILS BY POWER

500 Watts
192 pièces
Batterie : 6.4V 18AH

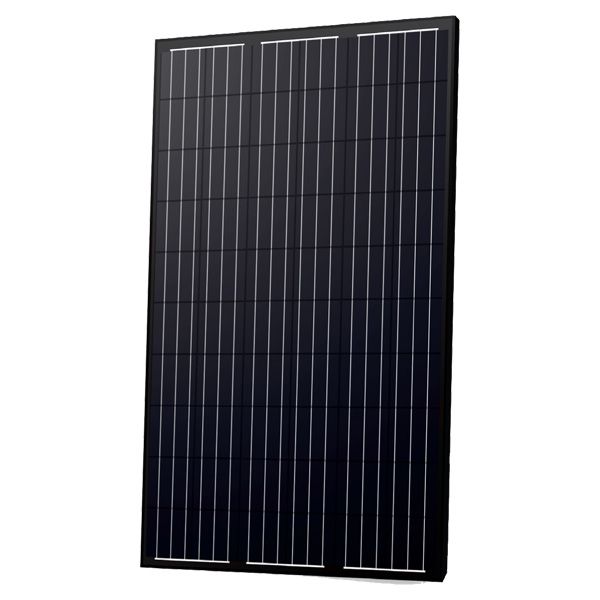

Panneau solaire 10V – 35W
Lampe : 375 x 275 x 56 mm
Panneau : 670 x 350 x 17 mm
Poids : 5,65 kg
Hauteur d'installation max. recommandée : 6 mètres

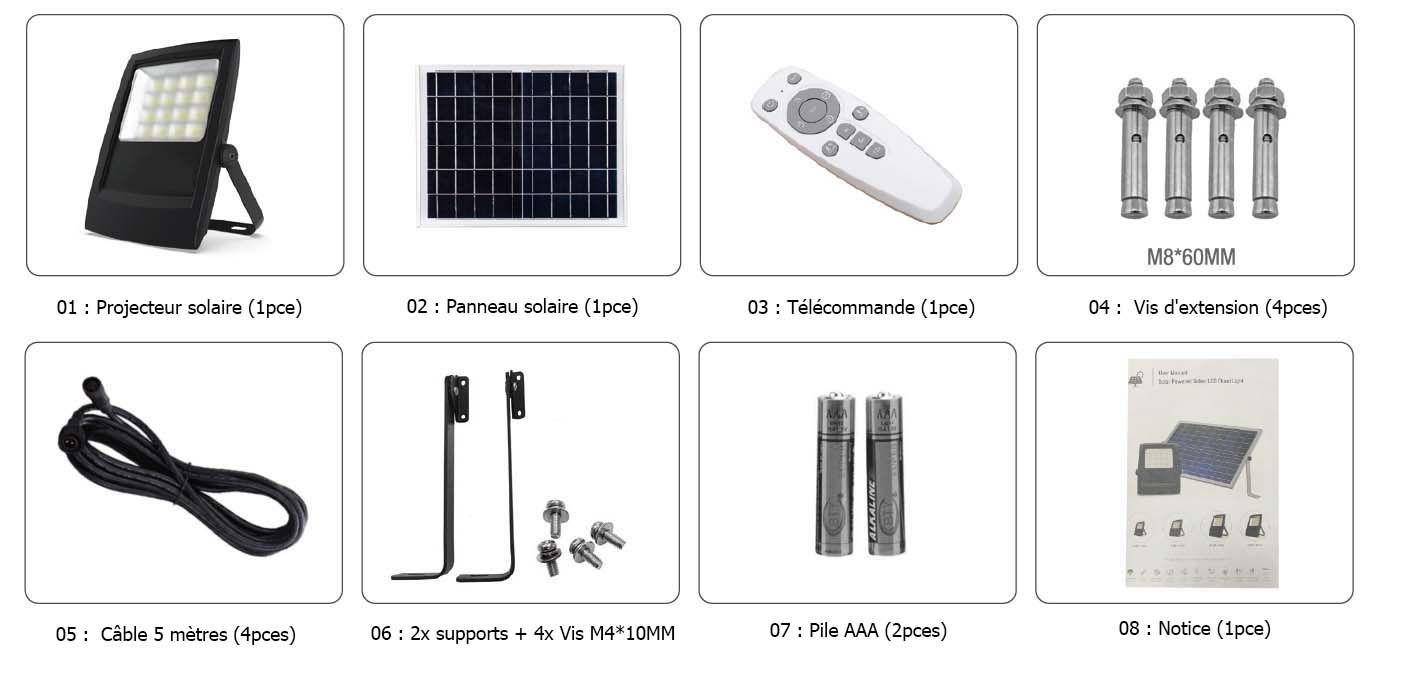

 Le pack comprend

GALLERY

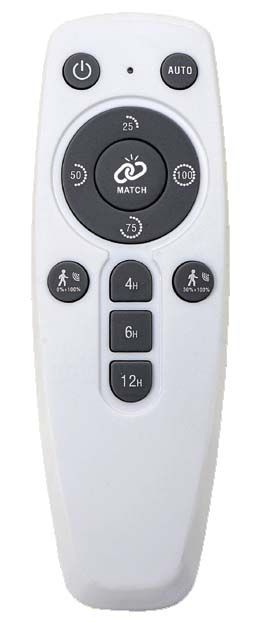

REMOTE
* Manual activation and deactivation, day and night functions.
* Set to turn on at dusk, automatically turn off at dawn.
* Adjust 4 different brightness levels

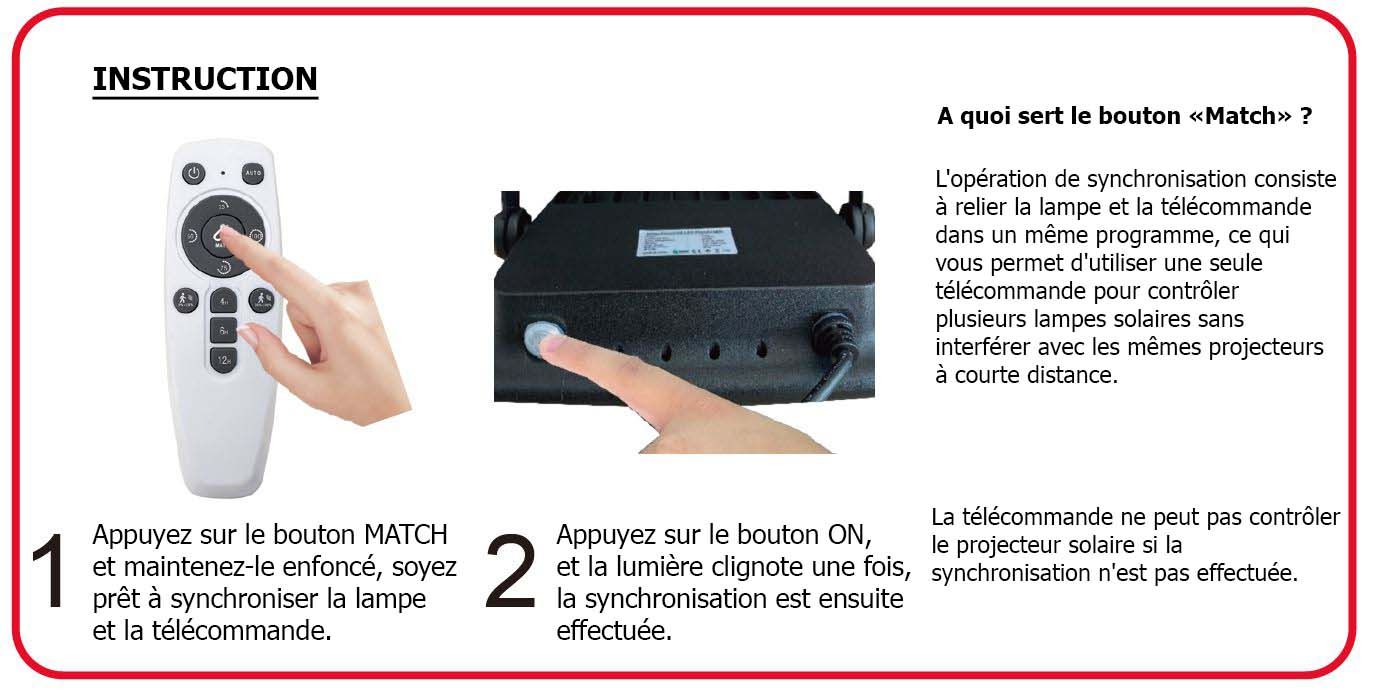

* MATCH Mode- Link different projectors to the remote control to avoid interference
* Réglez la lumière pour qu'elle fonctionne à 100% de sa puissance lorsque le capteur de mouvement est déclenché.
* Set the light to 30% sleep mode and to work at 100% when the motion sensor is triggered.
* Set the light to work at the time of day.
****Default lighting program: 3 hours 100% + 4 hours 50% + 5 hours 30% for 12 hours of operation without motion detector***
