Série STANDARD V3

Mâts / Poteaux pour lampe de rue
Nouveau design
Série STANDARD V3

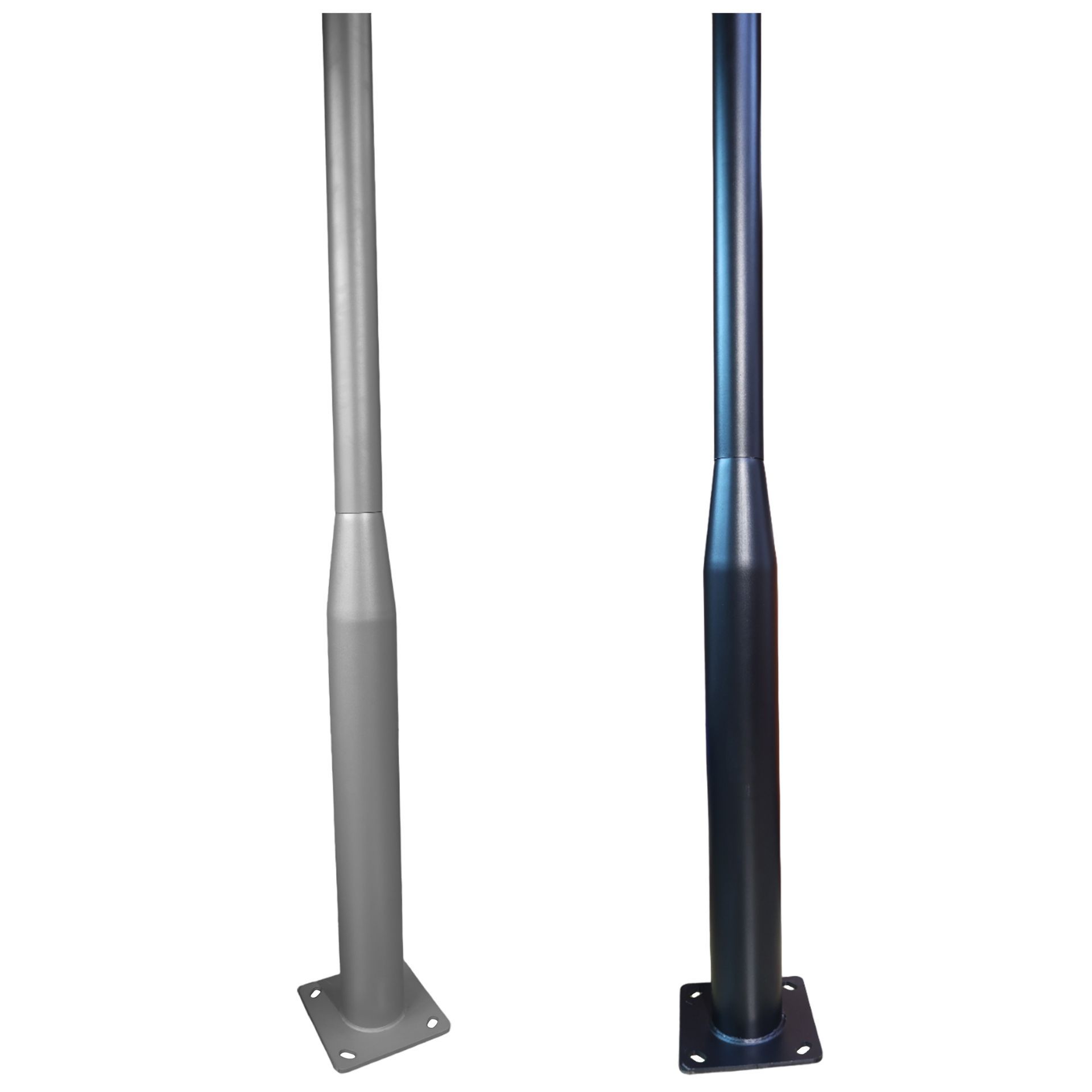

Once equipped with lighting, this mast, 3/4/5/6 meters long for the black model and 3/4 meters for the gray model, can illuminate the street, garden, path or parking lot. Its black color blends discreetly into the landscape, making this support a functional and space-saving product. It is delivered in its original box in the form of parts to be assembled with its manual and the complete set of screws for installation.


Outdoor lamp holder


This pole is designed to accommodate a projector, a spotlight or a lantern. Because it is intended for outdoor access areas, it is made of consolidated aluminum materials that are resistant to humidity, temperature changes and possible shocks. The assembled product weighs a total of 13 kilos for the 3 meters, 18.5 kilos for the 4 meters, 20.5 kilos for the 5 meters and 26 kilos for the 6 meters. It is easily transported and can be installed by a single adult. The fixed crosspiece for placing the lighting is perfectly stable. It is a tube of a standard size that can accommodate different types of outdoor lamps in complete safety.


Easy installation without major work


The post is delivered in 4 parts. The assembly is done by fitting the parts together. Installation is simple. Once you have determined the place where you want to place your outdoor lighting, all that remains is to fix the previously assembled mast. No need to plan major works. The fixing screws necessary to establish the base in the location of your choice are included in the pack. This model is suitable for sealing in a concrete block. In this case, it is preferable to use the appropriate anchor rods.

Spécifications techniques générales
Diamètre tube d'insertion

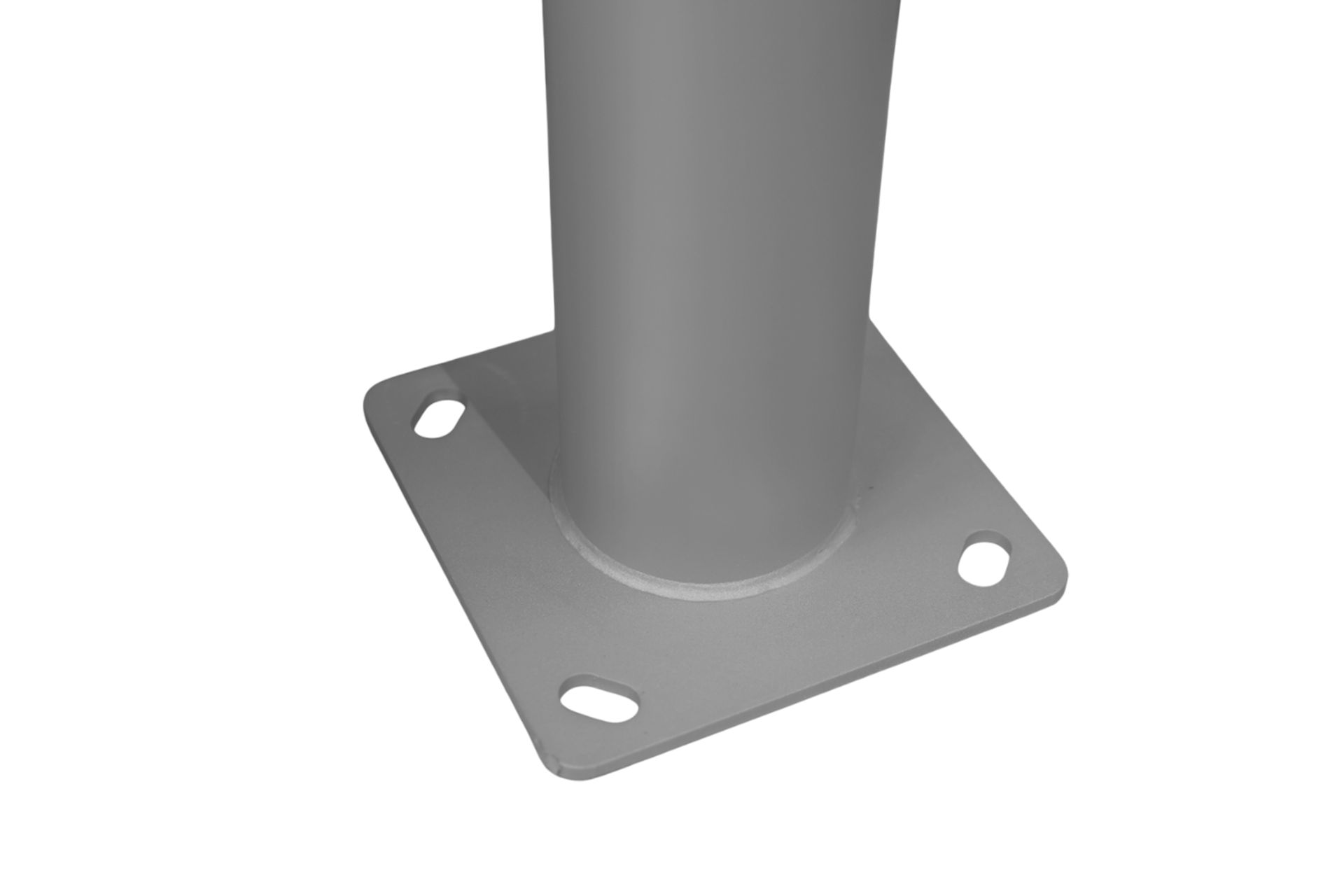

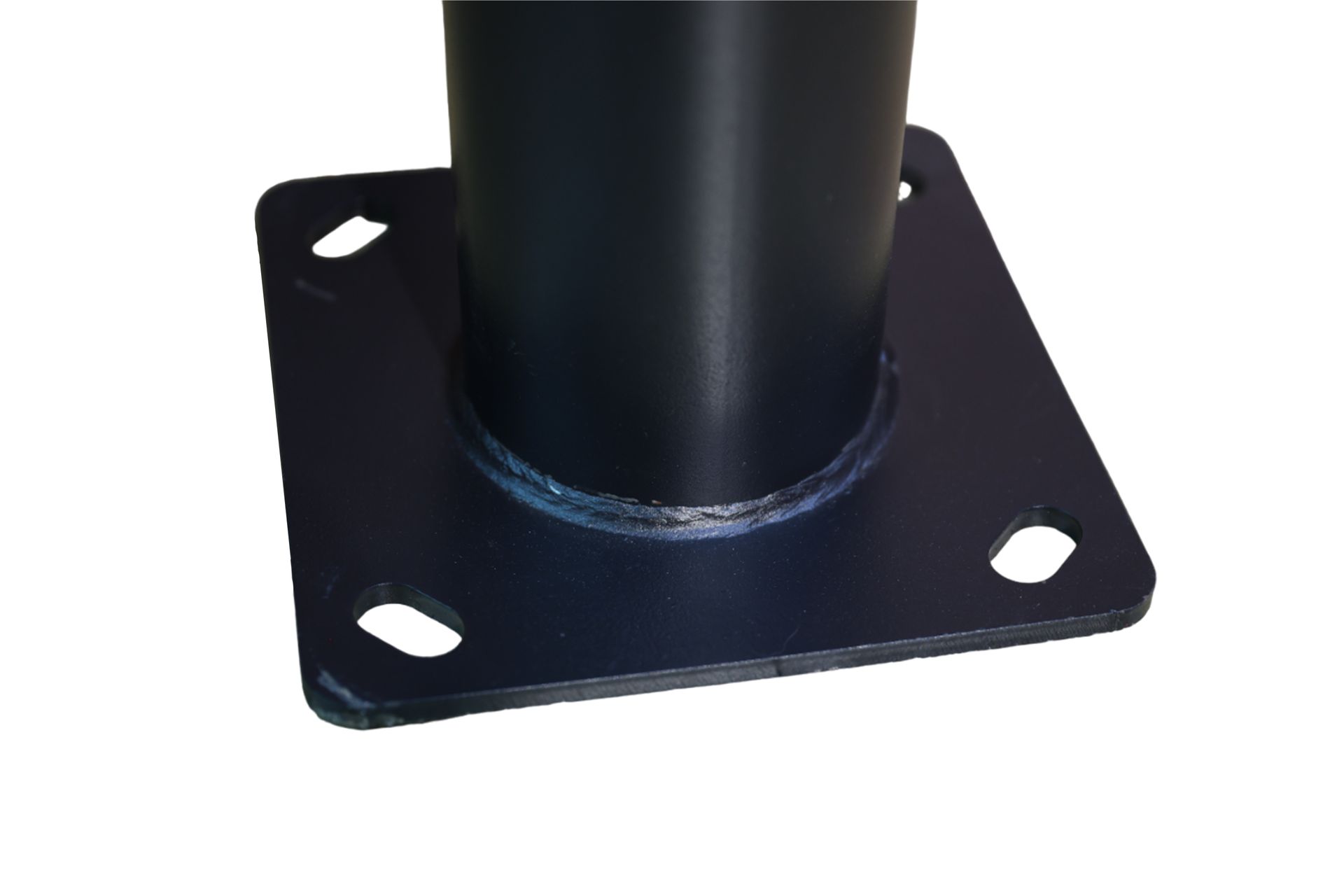

Base de fixation
Diagonal center distance
Material
Color
Certification
Maximum recommended weight
Mât livré en 3 / 4 / 5 parties                              emboitables
Mât 3 mètres
Mât 4 mètres
Mat 5 meters
Mât 6 mètres
Fixing screws Floor fixing screws
Fiche Technique
 76 mm
200 x 200 mm
200 mm
Galvanized steel Q235
 Noir MAT / Gris
CE & RoHS
15kg
Once the parts are fitted together, they will not come apart again.
- 1x Base - 1 meter / Diameter 114 mm
- 2x interlocking tubes - 1 meter / Diameter 76 mm
- 1x Base - 1 meter / Diameter 114 mm
- 3x nestable tubes - 1 meter / Diameter 76 mm
- 1x Base - 1 meter / Diameter 114 mm
- 4x interlocking tubes - 1 meter / Diameter 76 mm
- 1x Base - 1.2 meters / Diameter 114 mm
- 4x nestable tubes - 1.2 meters / Diameter 76 mm
 incluses
Fiche Technique PDF
Diamètre tube d'insertion
 76 mm
Base de fixation
200 x 200 mm
Diagonal center distance
200 mm
Material
Galvanized steel Q235
Color
 Noir MAT / Gris
Certification
CE & RoHS
Maximum recommended weight
15kg
Mast delivered in 3 / 4 / 5 interlocking parts (Once the parts are interlocked, they no longer come apart)

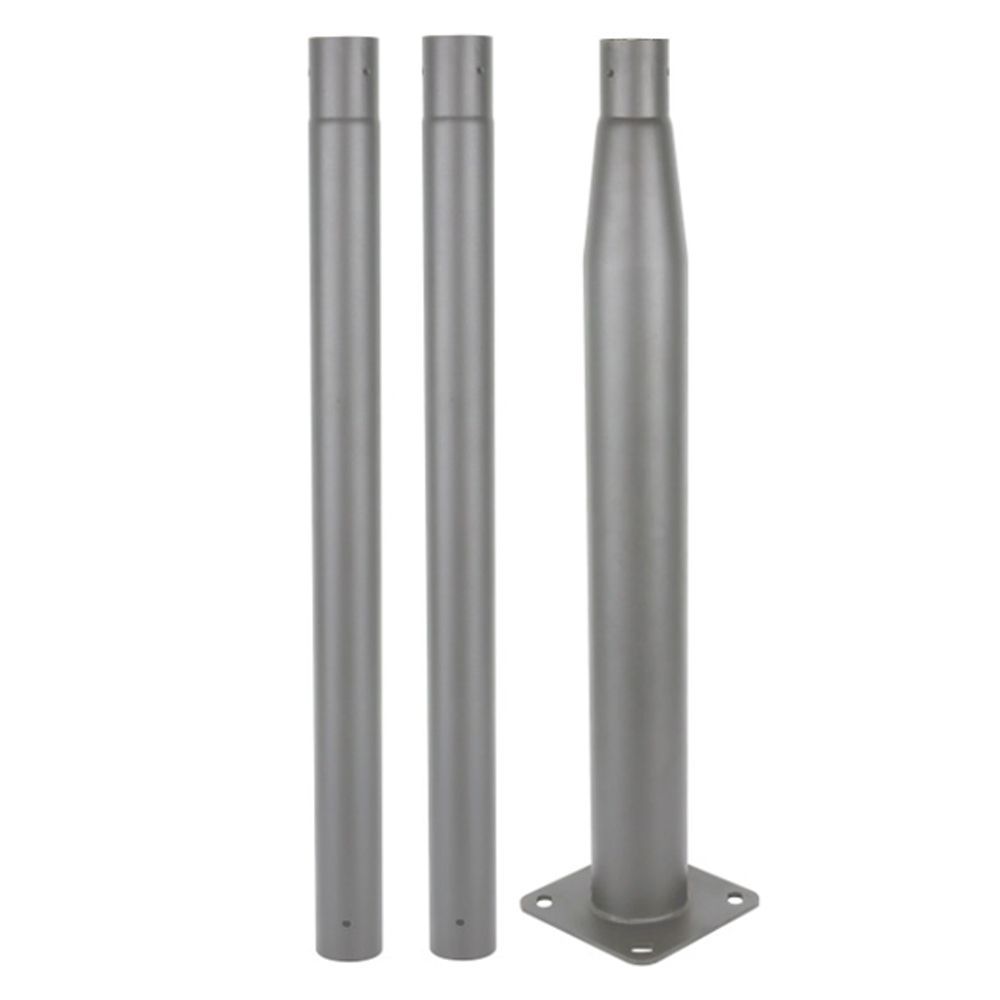

Mat 3 meters
1x Base - 1 meter / Diameter 114mm
2x interlocking tubes - 1 meter / Diameter 76mm
Mat 4 meters
1x Base - 1 meter / Diameter 114mm
3x interlocking tubes - 1 meter / Diameter 76mm
Mat 5 meters
1x Base - 1 mètre / Diamètre 114mm
4x tubes emboitables - 1 mètre / Diamètre 76mm
Mat 6 meters
1x Base - 1.2 meters / Diameter 114mm
4x interlocking tubes - 1.2 meters / Diameter 76mm
Floor fixing screws
Included
Fiche Technique
Fiche Technique PDF

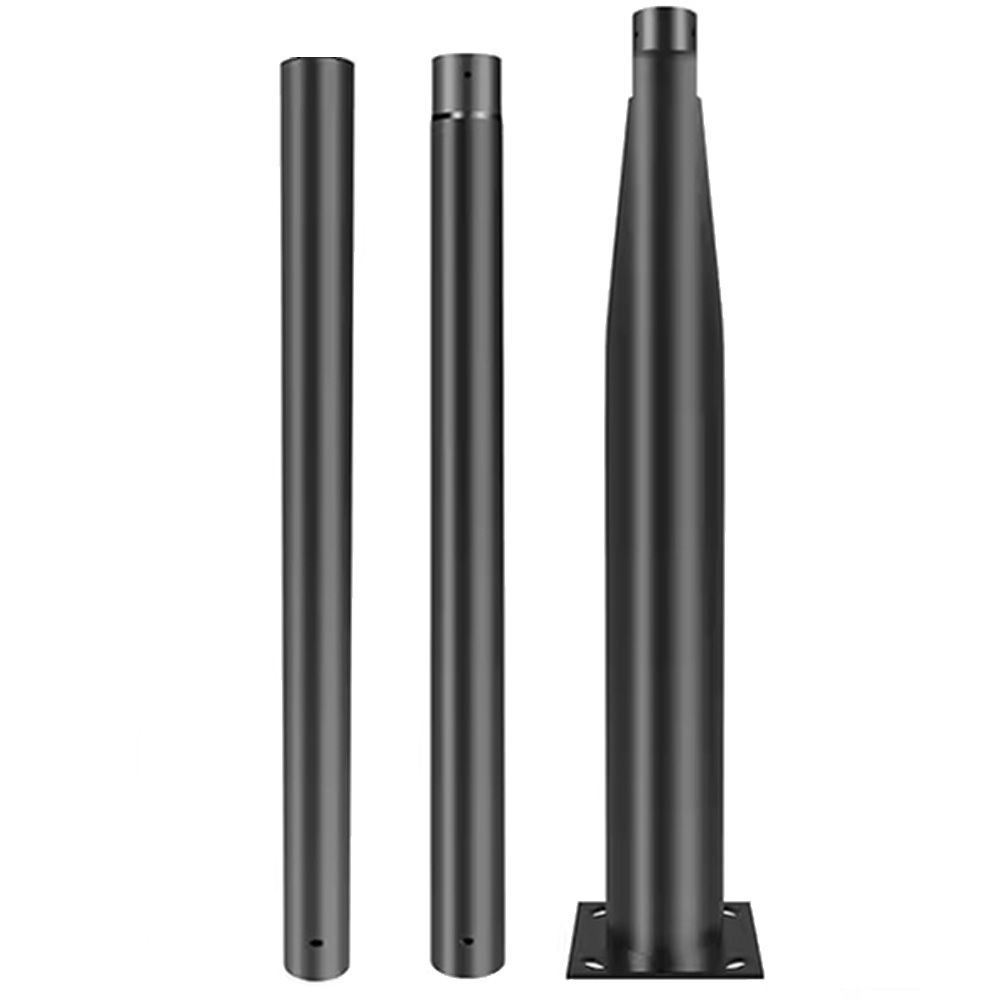

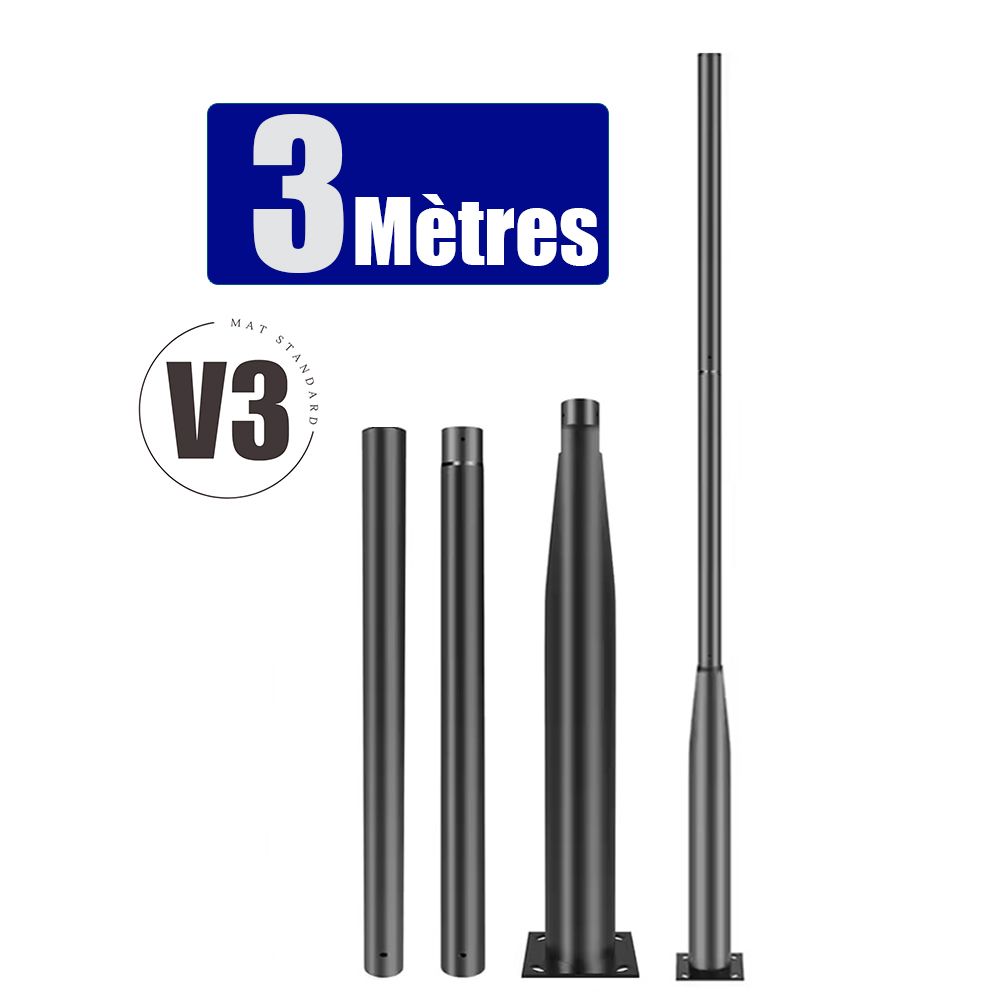

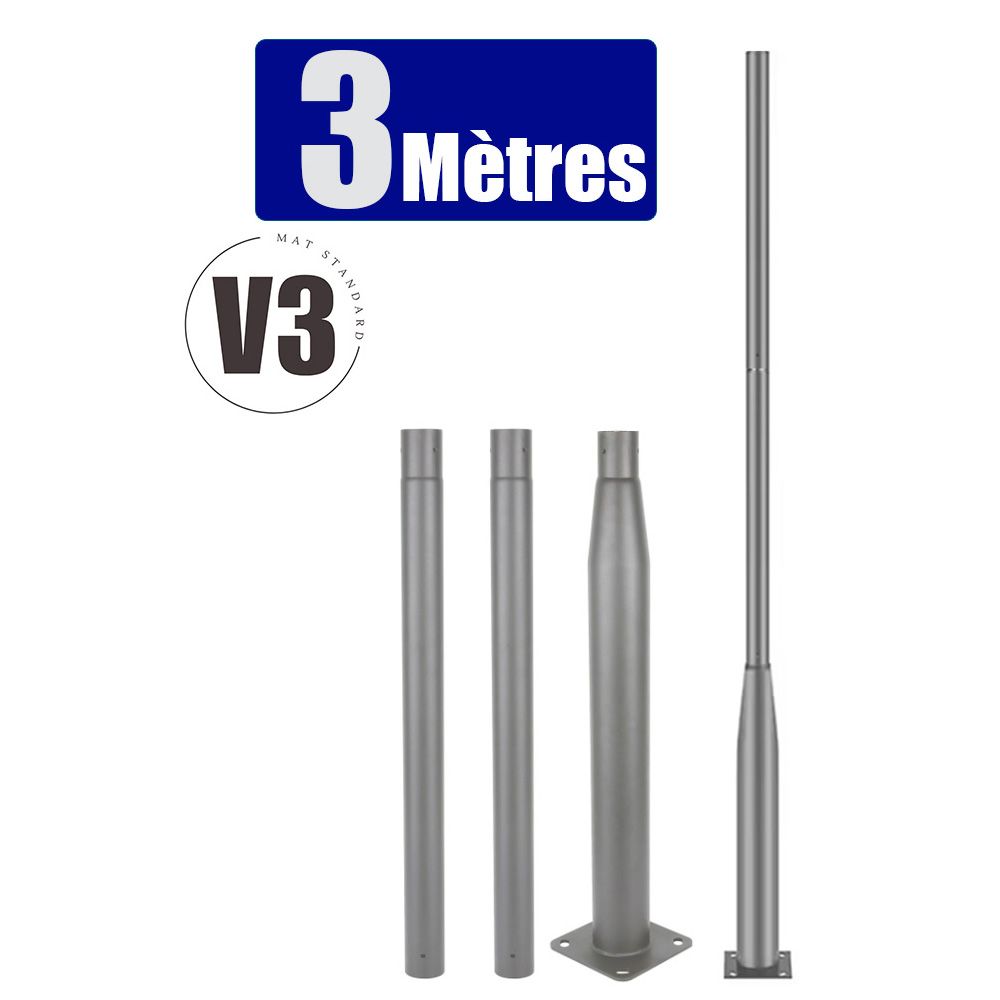

3 meters

Height: 3 meters

Weight: 13kg

Cardboard dimensions

110 x 24 x 23 cm

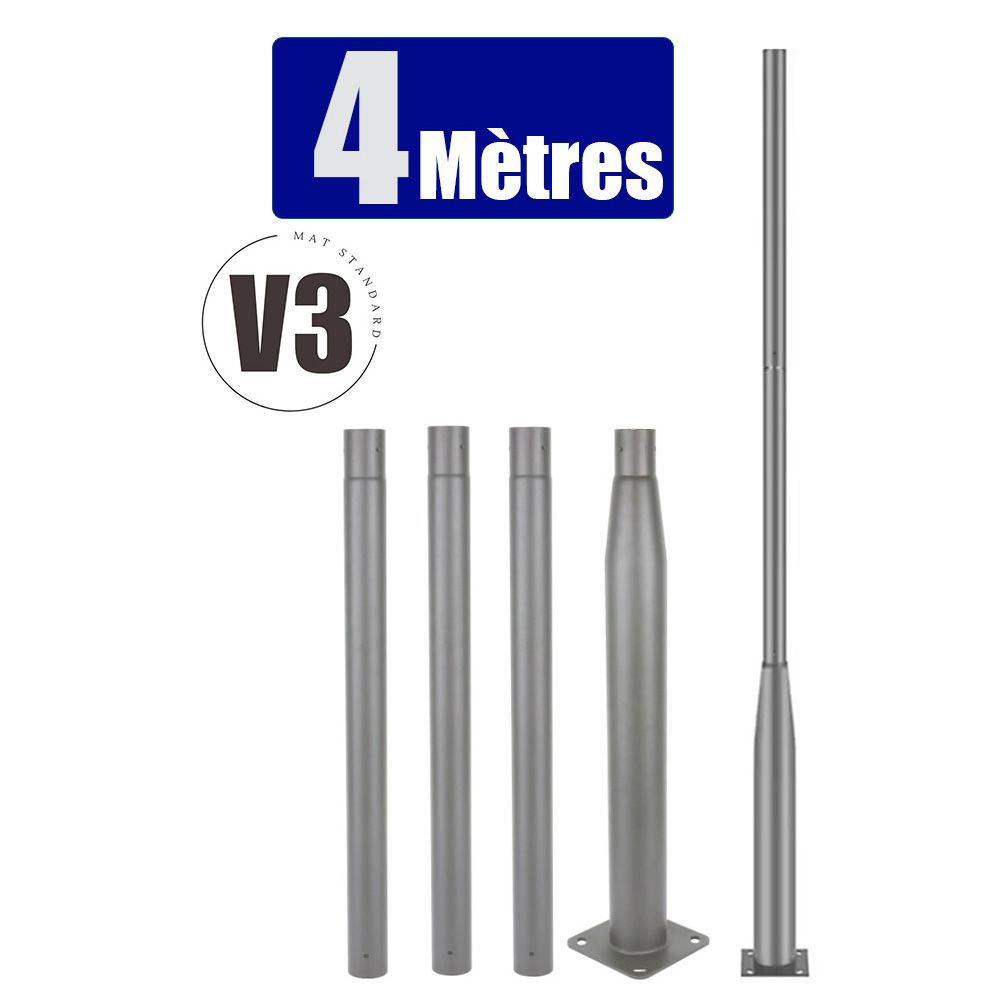

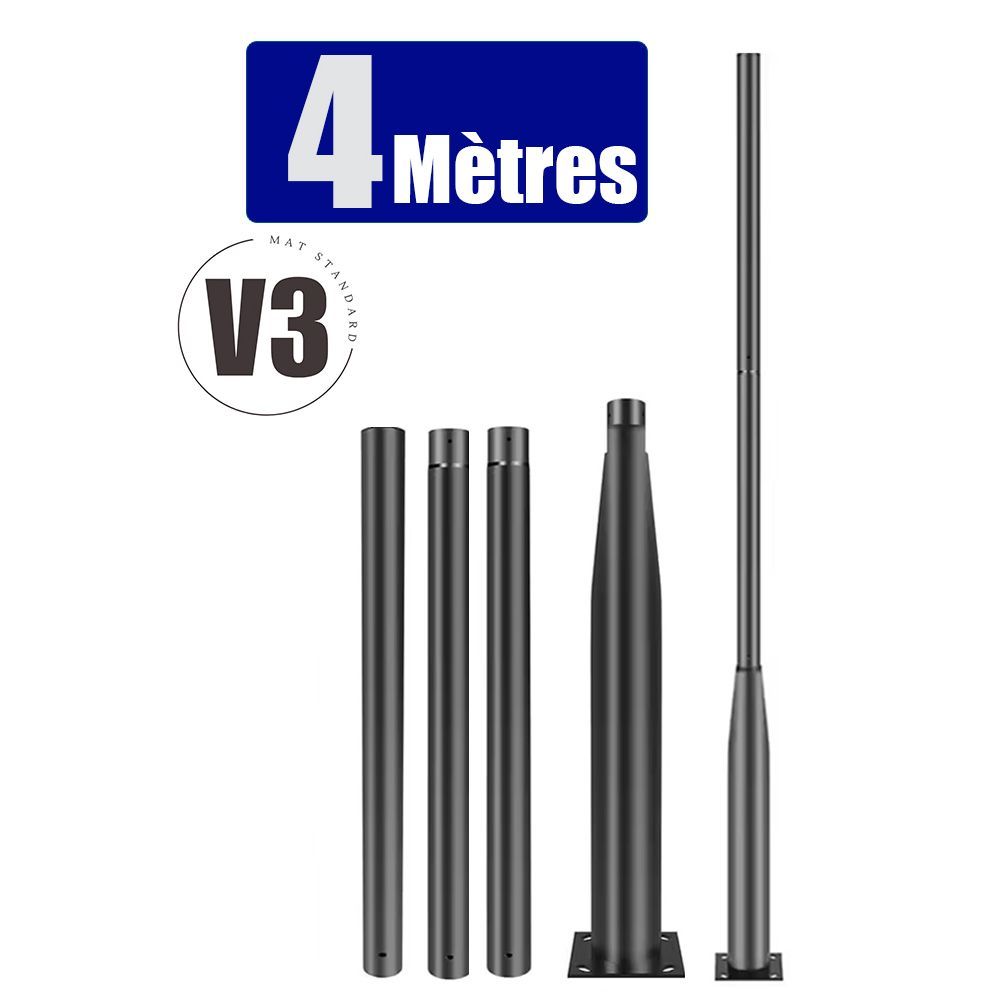

4 meters

Height: 4 meters

Weight: 18.5kg

Cardboard dimensions

111 x 24 x 23 cm

5 meters

Height: 5 meters

Weight: 20.5kg

Cardboard dimensions

111 x 24 x 23 cm

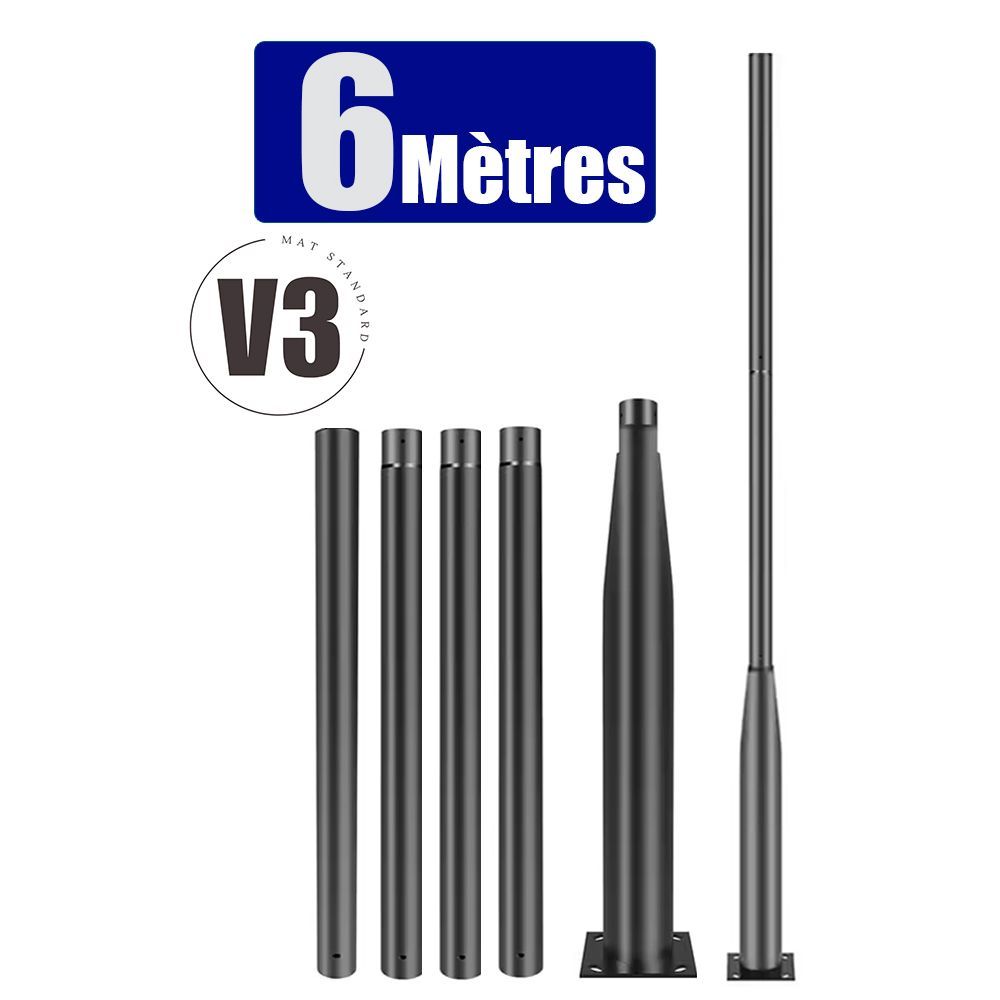

6 meters

Hauteur : 6 mètres

Poids : 26kg

Dimensions carton

132 x 24 x 23 cm
