SECURITY series

Solar LED floodlight - SECURITY series 6000k - Monocrystalline solar panel Infrared detector - Remote control

The SECURITY series solar LED floodlights are equipped with an infrared detector. They are perfect for illuminating and securing outdoor environments such as gardens, parking lots, facades, entrances, etc. The floodlight and its photovoltaic panel are simply installed in a location well exposed to sunlight. When the daylight fades, the light turns on by itself and turns off in the early morning. The detector activates full light when movement is detected within a radius of 8 meters.

Autonomy greater than 30 hours

With a full battery, the SECURITY projector can operate for more than 30 hours. Optimize the life of your lamp by taking advantage of the lighting options offered. Choose the lighting duration that suits you (from 3 to 8 hours), you can then customize the brightness level as you wish. All selections can be made remotely using the multi-function remote control supplied without the pack. The AUTO button activates the automatic lighting mode. Thanks to the integrated infrared motion detector, the lighting controls itself: the light turns on at its maximum to signal movement in the detection zone then returns to its initial level after 60 seconds of calm.

Power and flexibility

The SECURITY solar floodlight has LEDs to provide light output with a color temperature of up to 6000 K. Its high-quality LiFePO4 battery guarantees perfectly uniform and constant brightness in both constant lighting mode and energy-saving mode. The minimum lifespan for this series is over 50,000 hours, or more than 5 years, with no additional costs to be expected for your outdoor lighting system. Ultra-practical. The lighting angle and direction can be configured according to your needs over a 360° angle.

Simplified installation

All the accessories you need to set up the floodlight are delivered together. Allow a charging time of 4 to 6 hours (full sun) to obtain a full charge. Once installed, press the power button located on the body of the lamp and the floodlight will be immediately operational. The recommended installation height for this series of solar floodlights is 5 meters. The product can be fixed on a wall, a facade or a pole depending on the available infrastructure. There is no need to provide any connection other than that of the panel to activate the solar system. SECURITY floodlights are completely autonomous and only need the power supply of the sun's energy to light up your home all year round.

POINTS FORTS

- New modern and simple design with patent protection.

- Super bright, professional lighting distribution with 120°*60° angle, achieving much larger lighting area.

- The specific optical lens makes the output lighting uniform and comfortable.

- The solar panel is 170° adjustable for maximum solar charging flexibility.

- The lamp holder is 360° adjustable to easily define the desired lighting direction and area.

- Optional operation modes by remote control, customized lighting duration and brightness for diversified use.

- Grade A monocrystalline solar panel with laminated glass, large size, 21%+ high conversion for faster charging, 20 years+ lifespan.

- Latest generation LiFePO4 battery of high quality with large capacity, 2000 cycles, with overcharge protection, safe and durable.

- LG brand ABS+PC housing, anti-UV, fireproof, safety guaranteed.

- 5 meters long connection cable with IP67 waterproof connector, strong and durable.

- IP65 waterproof.

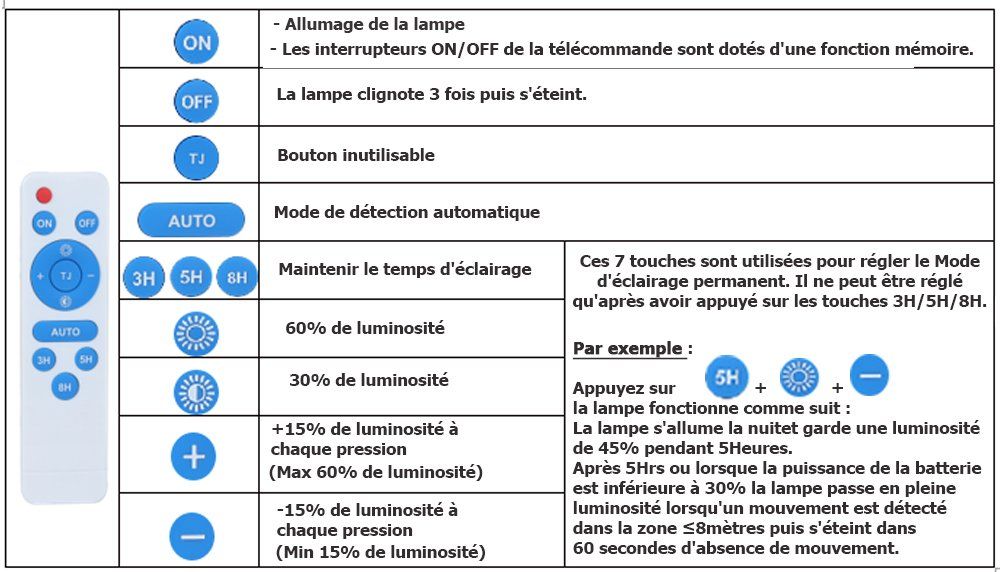

MULTIFUNCTION REMOTE CONTROL

OPERATING MODE

Please press the lamp button first, the lamp will automatically turn on and enter the auto-sensing mode, and the remote control will be activated at the same time.

Then please use the remote control to set the desired working mode.

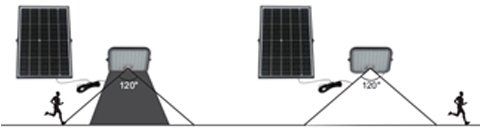

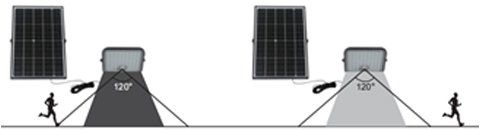

AUTOMATIC DETECTION MODE

Lorsque la puissance de la batterie est supérieure à 30 % :
La lampe s'allume automatiquement la nuit et passe en pleine luminosité lorsqu'un mouvement est détecté dans la zone de détection 8 mètres, puis passe à une luminosité plus faible au bout de 60 secondes d'absence de mouvement.

When the battery power is less than 30%:
The light automatically turns on at night and switches to full brightness when motion is detected within the 8 meter detection zone, then turns off after 60 seconds of no motion.

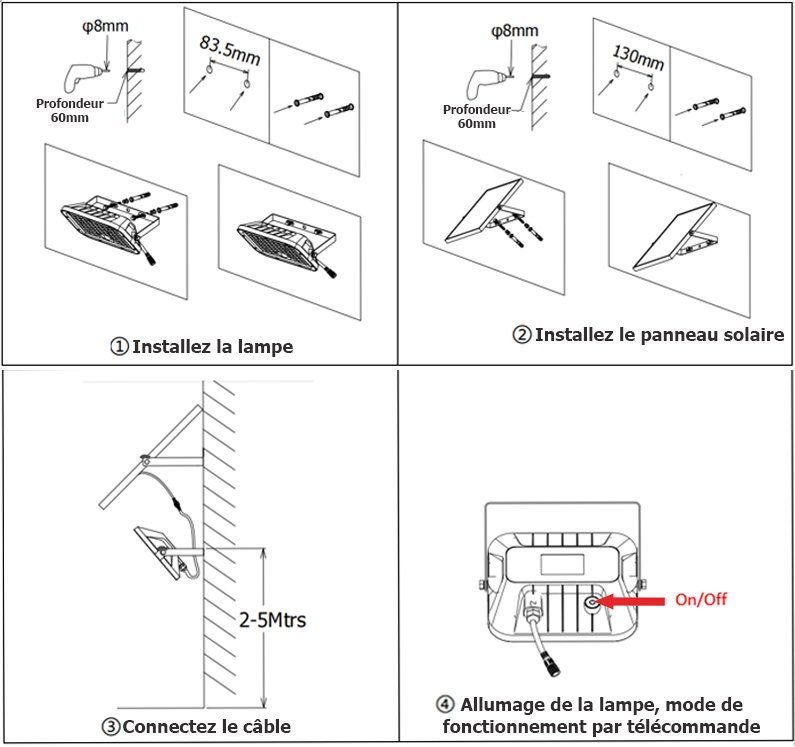

INSTALLATION

Bien préparer la lampe, les accessoires et les outils, confirmer le lieu d'installation et la longueur du fil.


① Percez 2 trous de Φ8mm avec une profondeur de 60mm et un espacement de 83,5mm sur le mur, fixer la lampe sur le mur avec des chevilles d'expansion et des vis.


② Percez 2 trous de Φ8mm d'une profondeur de 60mm et un espacement de 130mm sur le mur, fixez le panneau solaire au mur à l'aide des chevilles d'expansions et des vis.


③ Connectez le fil du panneau solaire à la lampe et vissez-le fermement.

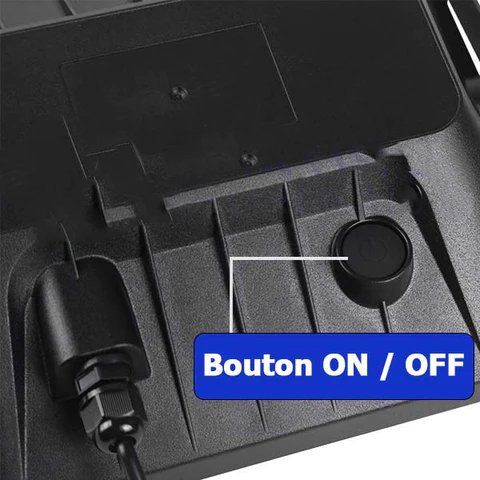

④ Appuyez sur le bouton de la lampe pour activer la télécommande, puis utilisez la télécommande pour régler le mode de fonctionnement souhaité.

Spécifications techniques générales

  • Slide Title

    Écrivez votre légende ici
    Button

  • Slide Title

    Écrivez votre légende ici
    Button
Angle
Angle panneau solaire ajustable
Angle ajustable de la lampe (Support)
Rules
Lighting color
Material
Minimum lifespan
Fréquence
Type de LED
Dimensions
Longueur du câble
Mode
Charging time
Lighting duration
Operating temperature
Storage temperature
Certification
Garantie
Included in the box
Fiche Technique
120° x 60°
170°
360°
IP65
6000k
ABS + PC, support en aluminium, anti-UV et résistant au feu
50,000 Hours
50 - 60 Hz
SMD2835
- Lampe : 144 x 153 x 31.5 mm
- Panneau solaire ajustable : 221 x 186 x 24 mm
5 meters - IP67
- Sensor mode

- Permanent lighting mode

- Brightness and lighting duration adjustment by remote control
4 - 6 Hours in strong sunlight for a full charge
> 30 Heures
-20°C / 60°C
0°C / 45°C
CE & ROHS
 3 ans
1x Lampe / 1x Panneau solaire / 1x Télécommande / 1x Manuel d'utilisation / 4x Vis
Fiche Technique PDF
Angle :
120° x 60°
Adjustable solar panel angle
170°
Adjustable lamp angle (Bracket)
360°
Rules
IP65
Lighting color
6000k
Matériau
ABS + PC, support en aluminium, anti-UV et résistant au feu
Minimum lifespan
50,000 Hours
Fréquence
50 - 60 Hz
Type de LED
SMD2835
Longueur du câble
5 meters - IP67
Charging time
4 - 6 Hours in strong sunlight for a full charge
Lighting duration
> 30 Heures
Operating temperature
-20°C / 60°C
Storage temperature
0°C / 45°C
Certification
CE & ROHS
Poids
1.6kg
Garantie
3 years
Included in the box
1x Lampe / 1x Panneau solaire / 1x Télécommande / 1x Manuel d'utilisation / 4x Vis
Fiche Technique
Fiche Technique PDF
DETAILS BY POWER
Light output 150 watts
Solar panel: 4.5W / 5.5V - Monocrystalline silicon
Battery: LiFePO4 / 18650 / 3.7V 3600mAh / 13.32Wh
Number of LEDs: 44 pieces
Lamp: 144 x 153 x 31.5 mm
Adjustable solar panel: 221 x 186 x 24 mm
Motion detector: 180° / Range 6 meters
Weight: 1.6kg
Reference: SECURITY 150 Watts Series
Rendu lumineux 300 watts
Solar panel: 12.5W / 10V - Monocrystalline silicon
Battery: LiFePO4 / 32700 / 6.4V, 6000mAh / 38.4Wh
Number of LEDs: 90 pieces
Lamp: 199 x 189 x 49 mm
Adjustable solar panel: 254 x 350 x 41 mm
Motion detector: 180° / Range 8 meters
Weight: 1.62kg
Reference: SECURITY 300 Watts Series
