CITY PLUS ULTRA Series

High power LED projector
CITY PLUS ULTRA Series - CCT

The 120° angle in lighting, what is the advantage?


Using a 120° beam angle for a floodlight has several advantages:

1 - Wide coverage: The 120° angle allows for a wider spread of light, allowing a larger area to be illuminated. This can be particularly useful in spaces where uniform illumination is desired, such as meeting rooms, showrooms or retail spaces.

2 - Uniform lighting: With an angle of 120°, the light is distributed more evenly over the illuminated surface. This avoids shadow areas or variations in light intensity, thus providing better visibility and increased visual comfort.

3 - Versatility: A lighting projector with a 120° angle can be used in different configurations and applications. It is suitable for low and high ceilings, as well as indoor and outdoor environments.

4 - Aesthetics: Spotlights with a 120° angle can be integrated discreetly into the environment. They offer an aesthetic appearance and can be used to highlight architectural elements, landscapes or specific objects.

5 - Energy saving:
A floodlight with a 120° angle allows for a wider distribution of light, reducing the number of luminaires needed to illuminate a given area. This can result in significant energy savings, by reducing electricity consumption and operating costs.


--------------------------------------------------


The 150x80° angle in lighting, what is the advantage?


Using a 150x80° beam angle for a floodlight has several advantages:

1 - Wide coverage: This angle allows for a wide spread of light, meaning it can illuminate a larger area. This is especially useful in general lighting applications where you want to illuminate a large room or open area.

2 - Uniform lighting: The 150x80° angle helps provide uniform illumination over a given area. It reduces dark areas and variations in light intensity, thus ensuring better visibility and increased visual comfort.

3 - Versatility: This type of angle is suitable for different types of lighting applications. It can be used in commercial spaces, offices, conference rooms, auditoriums, meeting rooms, exhibition halls, warehouses, etc.

4 - Energy saving: By using a floodlight with a wider beam angle, you can reduce the number of fixtures needed to illuminate a given area. This can result in significant energy savings because you are using fewer fixtures to achieve the same light coverage.

5 - Design flexibility: The 150x80° angle provides flexibility in terms of placement of lighting spotlights. It allows for effective coverage of wall areas and ceiling areas, providing greater freedom in lighting design.

It should be noted that the specific benefits of the 150x80° angle may vary depending on the context of use and specific lighting needs. It is therefore important to consider these factors when choosing a lighting projector.


It should be noted that the ideal beam angle for a floodlight will depend on the specific situation and lighting needs. Narrower or wider angles may be preferable in some cases, depending on the area to be illuminated and the desired lighting goals.


--------------------------------------------------


IP66 protection rating in lighting? The strong points!


The IP66 protection rating is a high level of protection for electrical or electronic equipment , including for lighting luminaires. Lighting luminaires with an IP66 protection rating are designed for use in harsh outdoor environments , such as industrial areas, sports facilities and marine environments.

One of the Main advantages of IP66 protection rating for lighting fixtures is the protection it offers against external elements such as rain, snow, dust and insects . IP66 lighting fixtures are completely protected against dust and can withstand powerful water jets from all directions. This ensures that the luminaires remain functional even in harsh weather conditions, which is particularly important for the outdoor applications.


Another advantage of the IP66 rating for lighting fixtures is that it can extend the life of lamps and electrical components by protecting them from damage caused by exposure to water and dust. This reduces long-term maintenance and replacement costs, which can be a significant advantage for large-scale lighting installations.


Ultimately, the IP66 rating is a high level of protection for lighting fixtures, which can provide increased reliability and durability in harsh outdoor environments.


--------------------------------------------------


IK08 protection index in lighting? More details!


The protection index IK08 refers to the mechanical resistance of a luminaire or electrical equipment to external shocks. This means that the luminaire with a protection rating of IK08 can withstand shocks of 5 joules of energy and is therefore considered relatively robust.


This can be an advantage in environments where there is a risk of shock or vibration, such as industrial areas, car parks, storage areas and public spaces. Luminaires with an IK08 protection rating can withstand impacts such as kicks, punches, vehicle impacts or falling objects without sustaining significant damage.


However, it should be noted that the IK08 protection rating does not guarantee the quality of the lighting as such. It does not refers only to the mechanical resistance of the luminaire. It is therefore important to consider other criteria such as luminous efficacy, colour temperature, light distribution and light source life to choose the appropriate luminaire for each application.


--------------------------------------------------


ADC12 Die-cast Aluminum - Tempered Glass Lens! More details?


When it comes to lighting using ADC12 die-cast aluminum and a tempered glass lens, here are some potential benefits:

1 - Resistance and durability: ADC12 die-cast aluminum is a strong and durable material, offering excellent durability for lighting applications. It can withstand harsh conditions such as shock, vibration, and temperature fluctuations. Additionally, tempered glass is known for its scratch and break resistance, making it a robust choice for the lens.

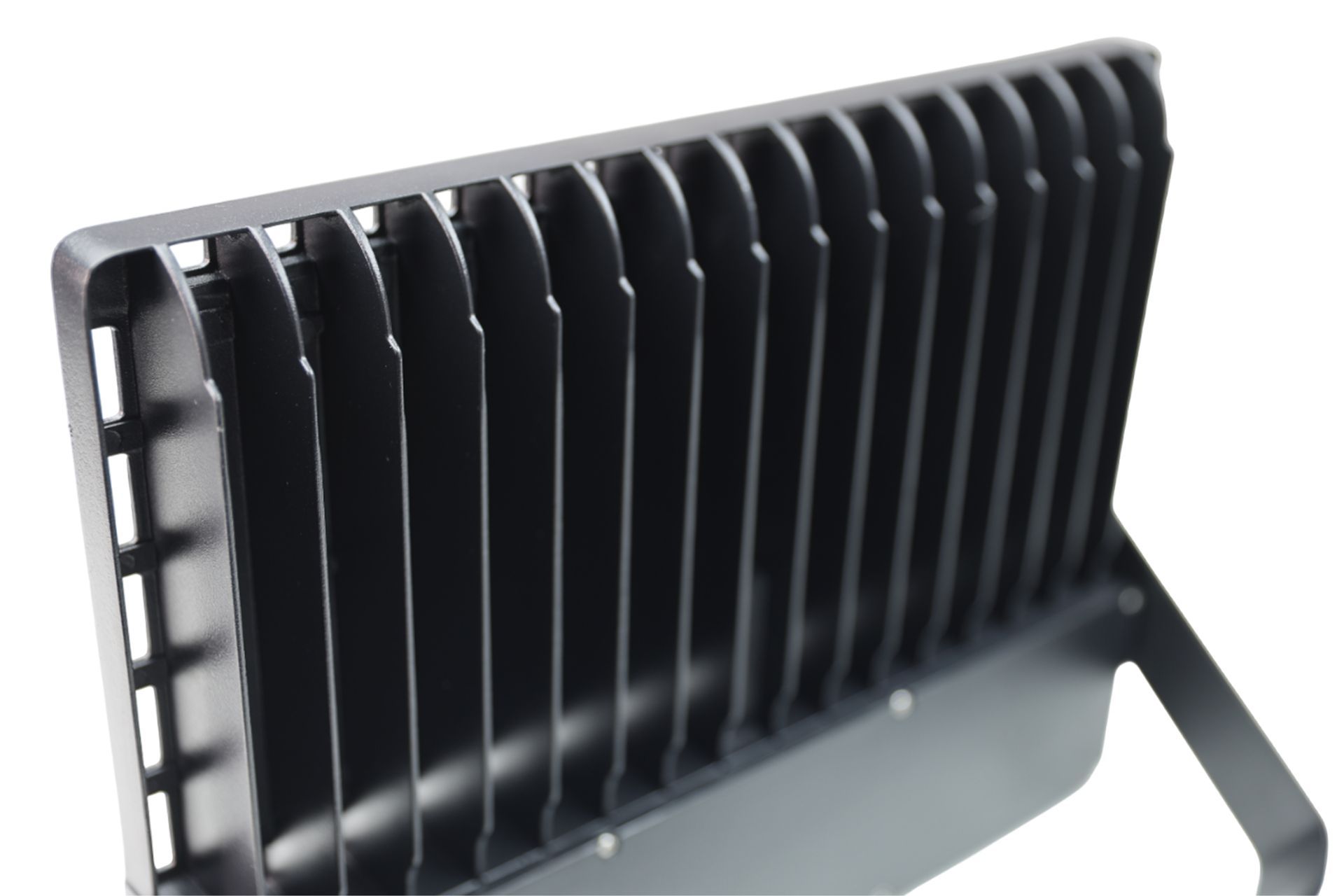

2 - Heat dissipation: Aluminum is a good thermal conductor, which means that it allows for better dissipation of the heat generated by lighting. This helps to keep the temperature of the luminaire at an optimal level, which can extend the life of internal components, such as LEDs or electronic circuits.

3 - Aesthetics and finishing:
Die-cast aluminum allows for complex shapes and high-quality finishes, which offers many aesthetic possibilities. Finishes can vary from matte textures to glossy surfaces and custom colors. Combined with tempered glass, which offers high transparency and optical clarity, this can give lighting an attractive and professional look.

4 - Protection against the elements:
Die-cast aluminum and tempered glass provide effective protection against outdoor elements such as moisture, dust and UV rays. This allows these luminaires to be used in demanding outdoor or indoor environments, such as street lighting applications, parking lots, stadiums, etc.

5 - Optical performance: The tempered glass lens can provide superior optical performance, with high light transmission and precise control of the light beam. This provides better light distribution, reduced unwanted reflections and better precision in shaping the light emitted by the luminaire.

However, it is important to note that the benefits mentioned may vary depending on the specific design of the luminaire, the quality of the materials used and the overall implementation of the product. It is therefore recommended to consult the manufacturer's specifications and do appropriate tests to assess the actual performance of the lighting in a specific context.


--------------------------------------------------


Type of LEDs "Lumileds" - The strong points?


Lumileds LEDs are known to offer several significant benefits when it comes to lighting. Here are some of the key benefits of Lumileds LED types:

1 - Energy efficiency: Lumileds LEDs are renowned for their high energy efficiency. They convert a large portion of electrical energy into light, minimizing energy loss in the form of heat. This saves energy compared to traditional light sources, resulting in reduced electricity consumption and operating costs.

2 - Long life: Lumileds LEDs are designed to have an exceptionally long life. They can operate for thousands of hours without requiring frequent replacement. This reduces maintenance costs and allows for extended use of the luminaire before needing to be replaced.

3 - Sustainability: Lumileds LEDs are resistant to shock, vibration and harsh environmental conditions. They do not contain fragile moving parts, making them more robust than traditional light sources. They are ideal for use in demanding outdoor or industrial environments.

4 - Quality of light: Lumileds LEDs provide superior light quality with excellent color rendition. They produce bright, uniform white light, resulting in better visibility and accurate color reproduction. This is especially important in applications such as architectural lighting, retail lighting, residential lighting, and stage lighting.

5 - Design flexibility: Lumileds LEDs are available in a wide range of formats and wattages, offering great design flexibility for luminaire manufacturers. They can be integrated into different types of luminaires and lighting fixtures, allowing easy adaptation to various applications.

It should be noted that the specific benefits of Lumileds LEDs may vary depending on the specific LED model and series, as well as the conditions of use. It is recommended to consult the manufacturer's specifications and choose the Lumileds LEDs that are suitable for your specific lighting needs.


--------------------------------------------------


CE & ROHS certification for lighting fixtures, what are the advantages?


CE (Conformité Européenne) certification and ROHS (Restriction of Hazardous Substances) certification are two important certifications for lighting fixtures. Here are the benefits associated with these certifications:

1 - CE Certification:

a - Compliance with European standards: The CE certification indicates that the luminaire meets the legal requirements and safety standards in force in the European Union. This guarantees that the product complies with the applicable European directives, which is mandatory in order to market and sell the luminaire on the European market.

b - Access to the European market: CE certification is a legal requirement for many products in Europe. By obtaining this certification, luminaire manufacturers can access the vast European market without encountering regulatory barriers. This helps to expand the product's marketing reach and reach a larger number of potential customers.

c - Product safety assurance: CE certification certifies that the luminaire has been assessed in terms of safety, health and environmental protection. It ensures that the product does not pose unacceptable risks to users and consumers. This strengthens customer confidence in the quality and safety of the luminaire.

2 - ROHS Certification:

a - Compliance with the restriction of hazardous substances: ROHS certification certifies that the luminaire complies with the European ROHS directive, which aims to restrict the use of certain hazardous substances in electrical and electronic equipment. These substances include lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs). ROHS certification ensures that the luminaire complies with these restrictions, thereby reducing the environmental impact and health risks associated with these substances.

b - Environmental protection: By meeting the requirements of ROHS certification, the luminaires help reduce the amount of harmful substances present in electronic waste. This helps preserve the environment by limiting pollution and encouraging more sustainable waste management practices.

c - Responsible branding: ROHS certification demonstrates the manufacturer's commitment to sustainability and environmental protection. It helps communicate to customers and consumers that the luminaire has been manufactured using environmentally friendly materials, reinforcing the company's responsible and sustainable brand image.

In summary, CE and ROHS certifications for luminaires provide benefits such as compliance with European standards, access to the European market, product safety, compliance with hazardous substance restrictions, and environmental protection. These certifications are essential to meet legal requirements, ensure product quality and safety, and build customer confidence.


Spécifications techniques générales
Norme
RA
Protection à l'impact
Lighting color
Tension d’alimentation
Minimum lifespan
Fréquence
Material
Longueur du câble
Type de LED
Operating temperature
Storage temperature
   Matériau
Type de LED
Minimum lifespan
Operating temperature
Storage temperature
Humidité
Certification
Guarantee
Fiche Technique
IES file
IP66
> 70
IK8
3000k / 4000k / 6000k
100-277V
50,000 Hours
50 -60 HZ
ADC12 Die-cast Aluminum - Tempered Glass Lens
50 cm
Lumileds
-40°C / 45°C
-40°C / +90°C
Aluminium moulé sous pression
Epistar
50,000 Hours
-20℃ /+50℃
-40℃ / 50℃
95%
CE & ROHS
5 years
Fiche Technique PDF
Fiche Technique PDF
Rules
IP66
RA
> 70
Protection à l'impact
IK8
Lighting color
3000k / 4000k / 6000k
Tension d’alimentation
100-277V
Minimum lifespan
50,000 Hours
Fréquence
50 - 60 HZ
Matériau
ADC12 Die-cast Aluminum - Tempered Glass Lens
Longueur du câble
50 cm
Type de LED
Lumileds
Operating temperature
-40°C / 45°C
Storage temperature
-40°C / +90°C
Humidité
95%
Certification
CE & ROHS
Garantie
5 years
Technical Sheet
Fiche Technique PDF
IES FILE
Fiche Technique PDF
DETAILS BY POWER

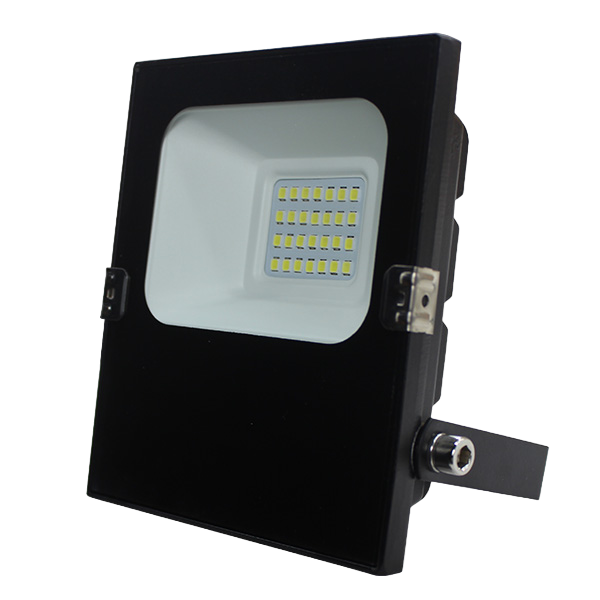

20 Watts
28 pièces
140 Lumens/Watt
2800 Lumens
Dimensions du produit
128 x 110 x 38 mm
Dimensions de l'emballage
180 x 155 x 60 mm
Angle 120°
Poids 2.85 kg

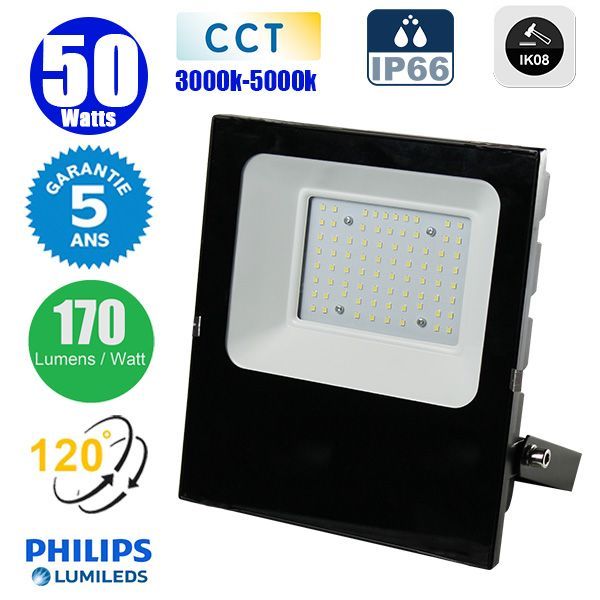

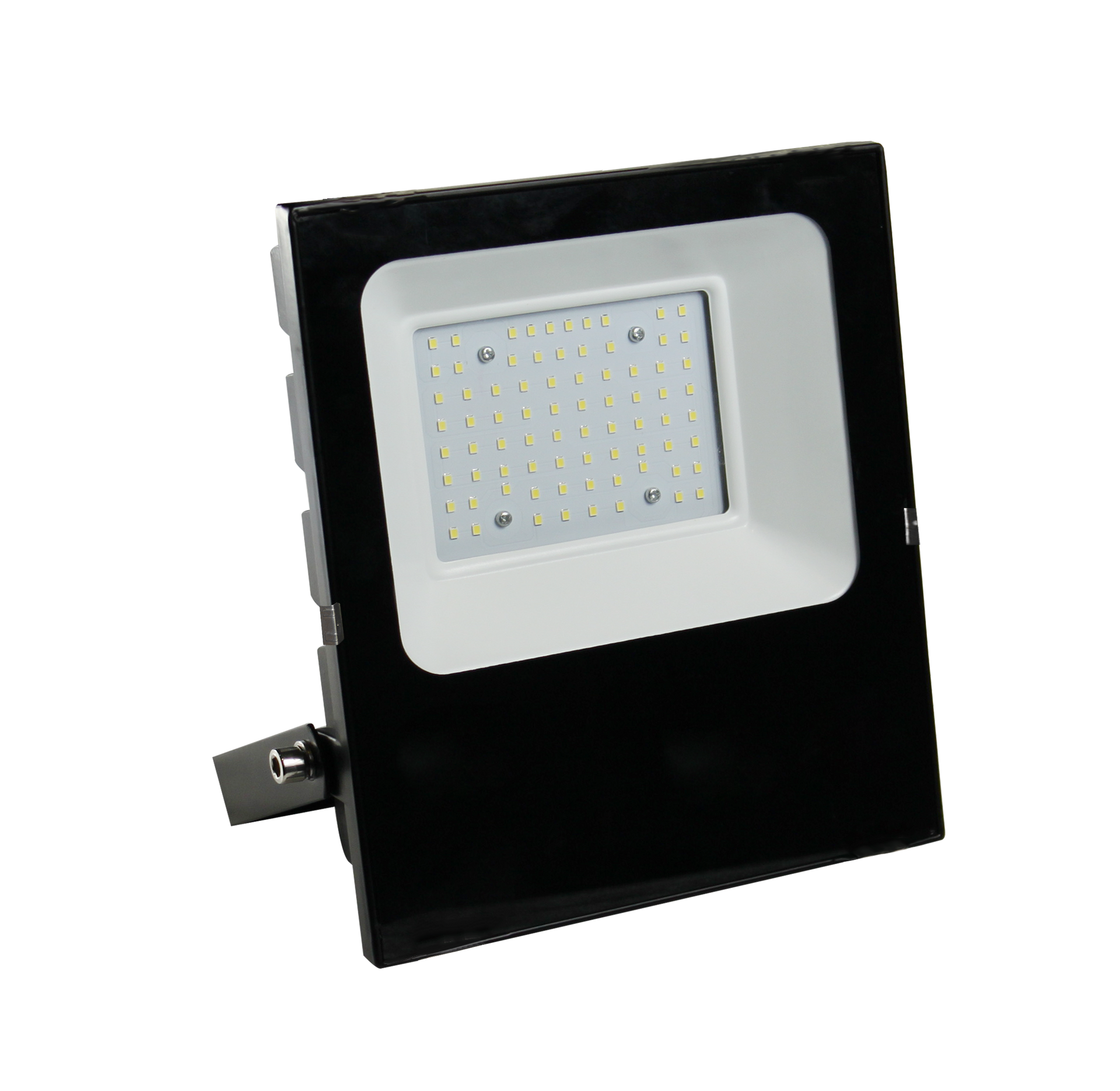

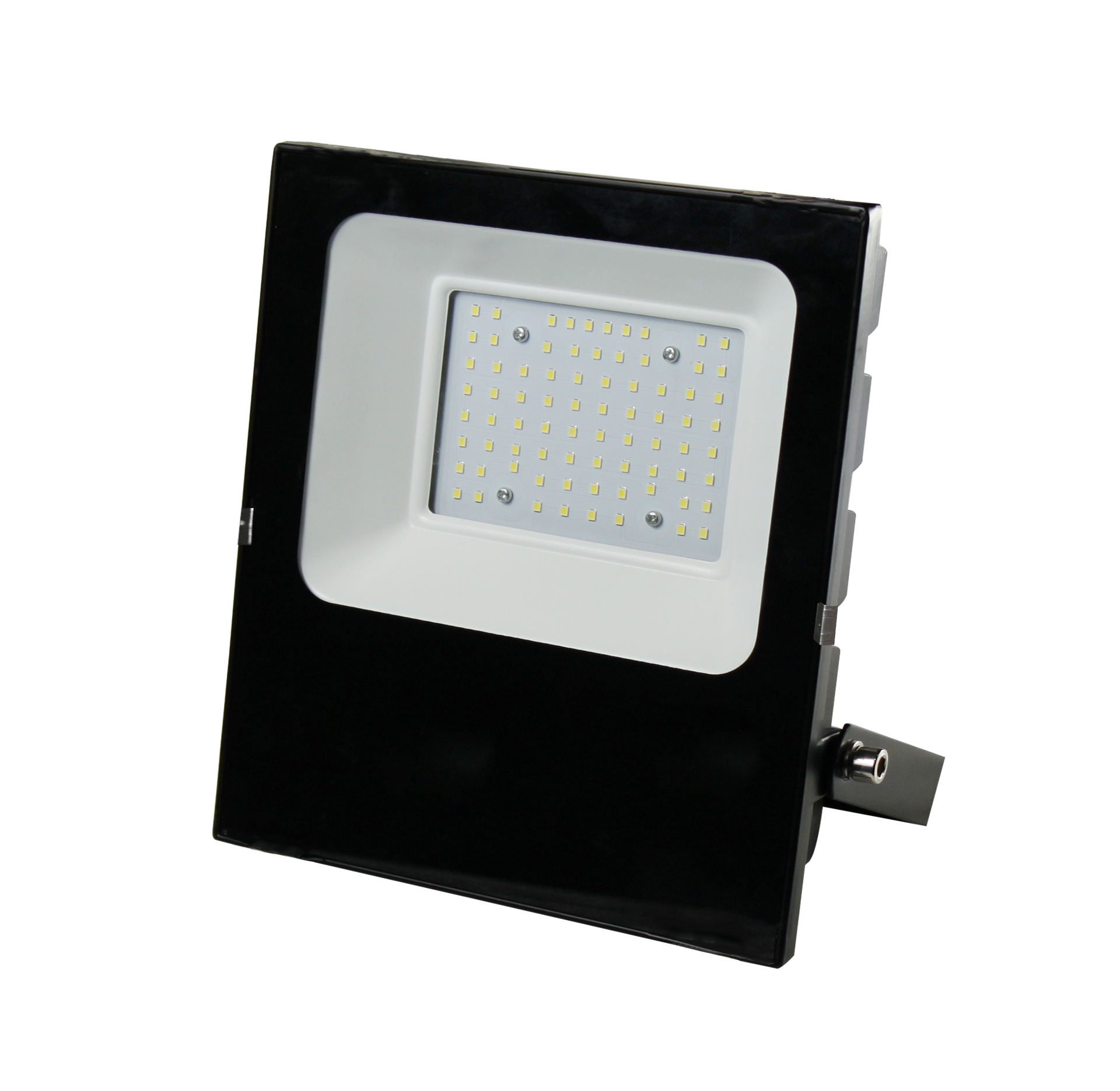

50 Watts
98 pieces
170 Lumens/Watt
8500 Lumens
Product dimensions
240 x 200 x 45 mm
Packaging dimensions
315 x 240 x 68 mm
Angle 120°
Weight 1.38 kg

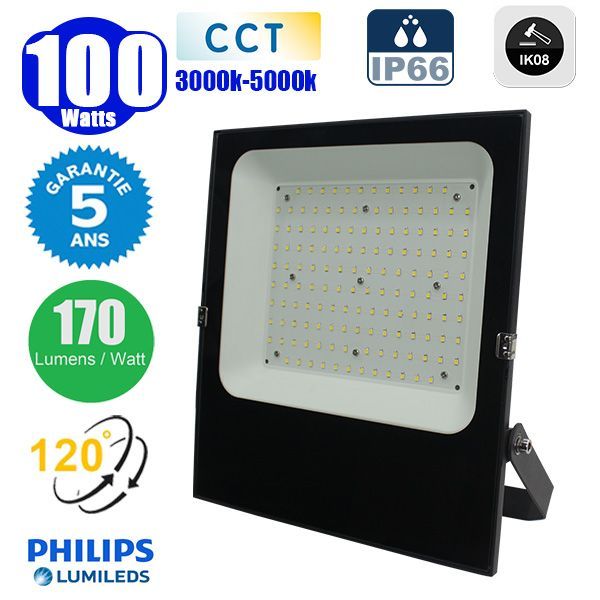

100 Watts

196 pieces
170 Lumens/Watt
17,000 Lumens
Product dimensions
280 x 250 x 45 mm
Packaging dimensions
365 x 290 x 60 mm
Angle 120°
Weight 2 kg
100 Watts – 150°x80°
196 pieces
150 Lumens/Watt
15,000 Lumens
Product dimensions
400 x 305 x 45 mm
Packaging dimensions
455 x 440 x 110 mm
Angle 150°x80°
Weight 3.8 kg

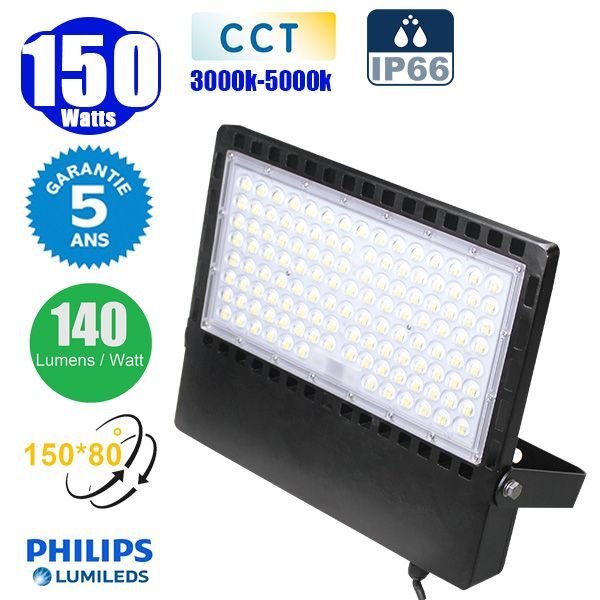

150 Watts – 150°x80°
294 pieces
150 Lumens/Watt
22,500 Lumens
Product dimensions
400 x 305 x 45 mm
Packaging dimensions
455 x 440 x 110 mm
Angle 150°x80°
Weight 4 kg

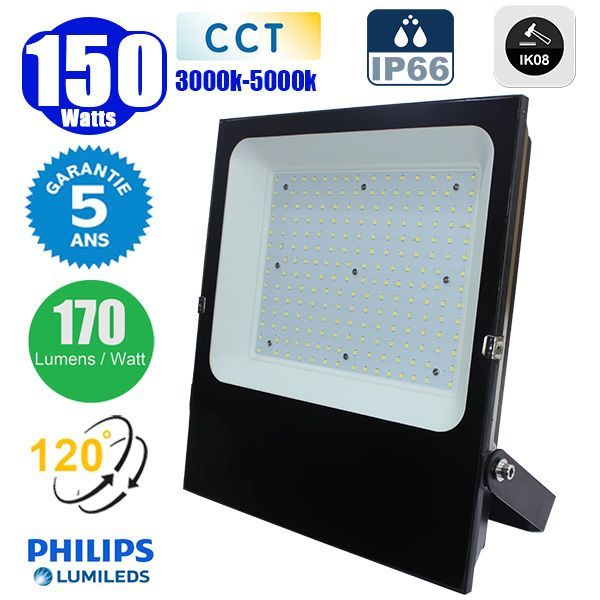

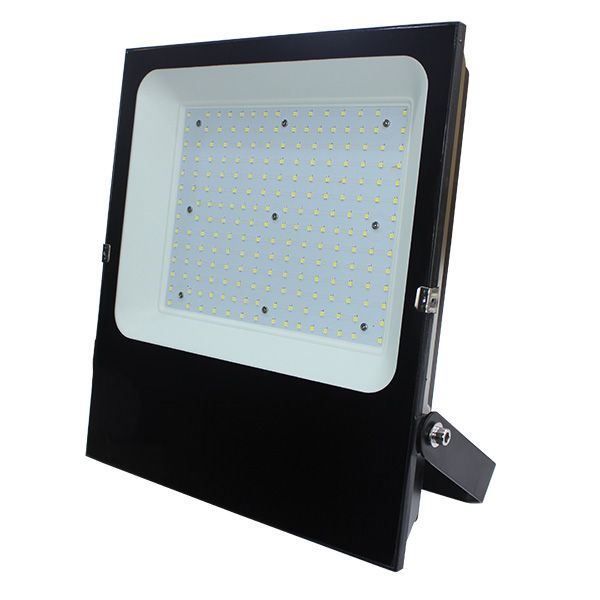

150 Watts

294 pieces
170 Lumens/Watt
25,500 Lumens
Product dimensions
346 x 312 x 54 mm
Packaging dimensions
432 x 365 x 82 mm
Angle 120°
Weight 3.35 kg

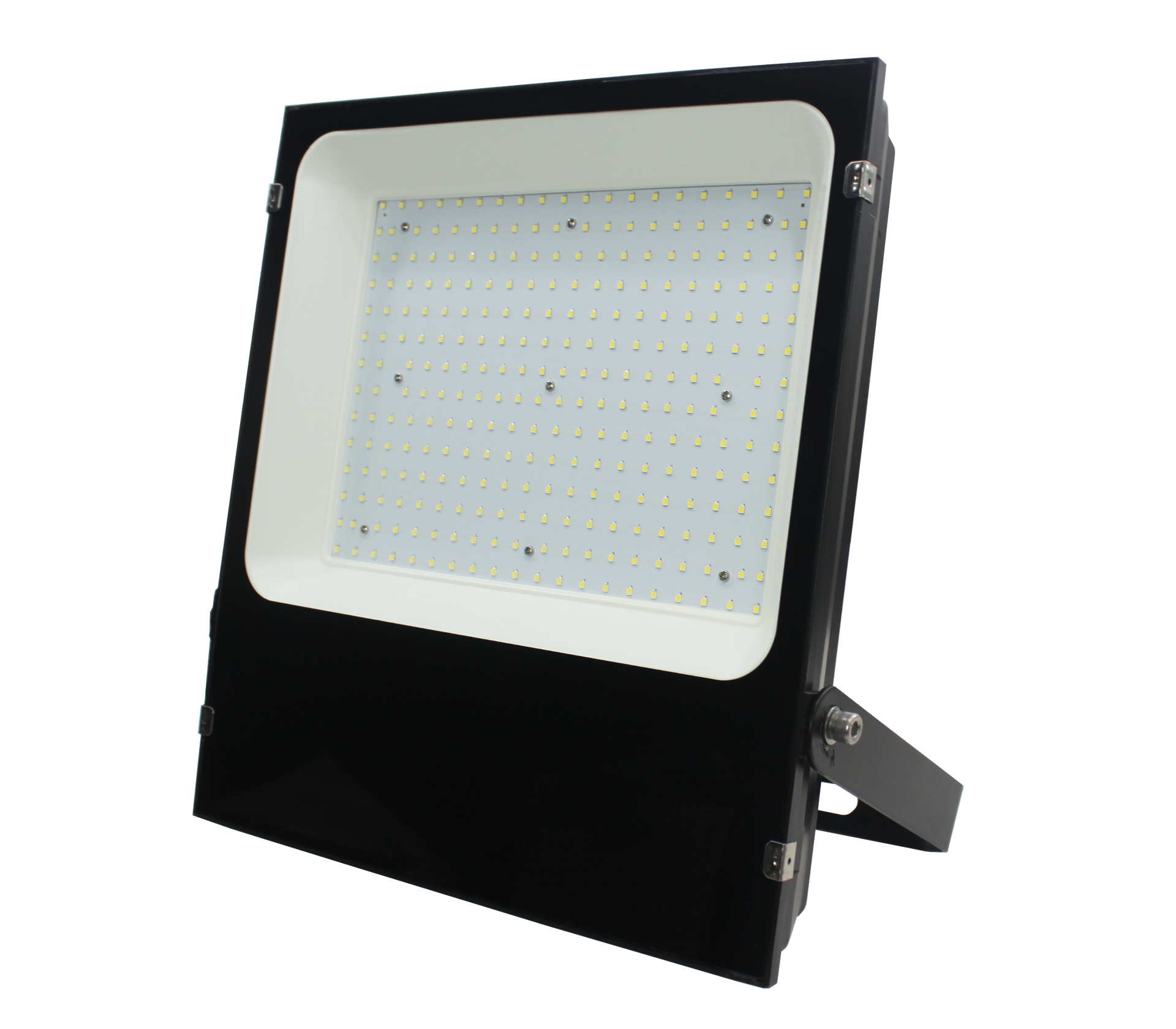

200 Watts
400 pieces
170 Lumens/Watt
34,000 Lumens
Product dimensions
380 x 350 x 63 mm
Packaging dimensions
481 x 419 x 100 mm
Angle 120°
Weight 4.2 kg

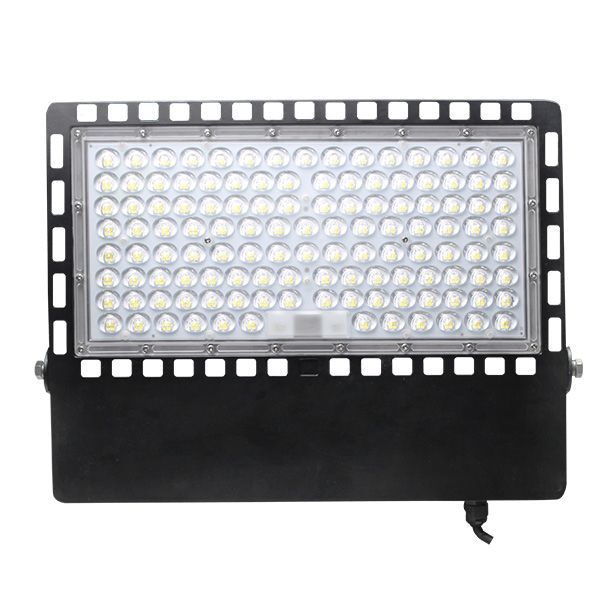

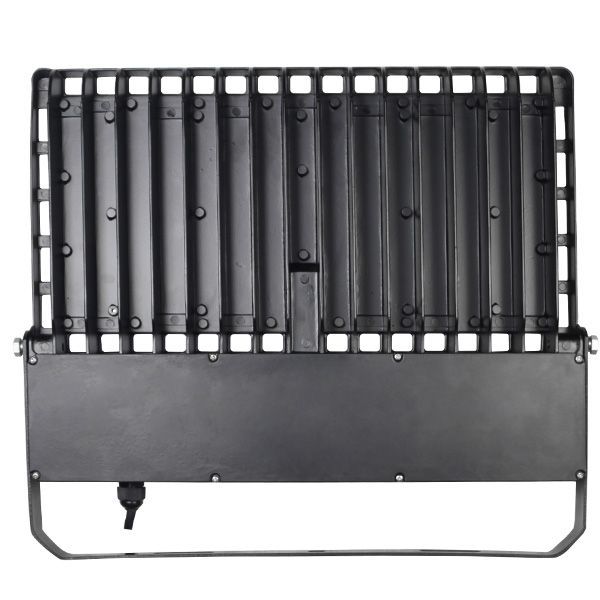

200 Watts – 150°x80°
242 pièces
150 Lumens/Watt
30 000 Lumens
Dimensions du produit
400 x 305 x 45 mm
Dimensions de l'emballage
455 x 440 x 110 mm
Angle 150*80°
Poids 4.46 kg

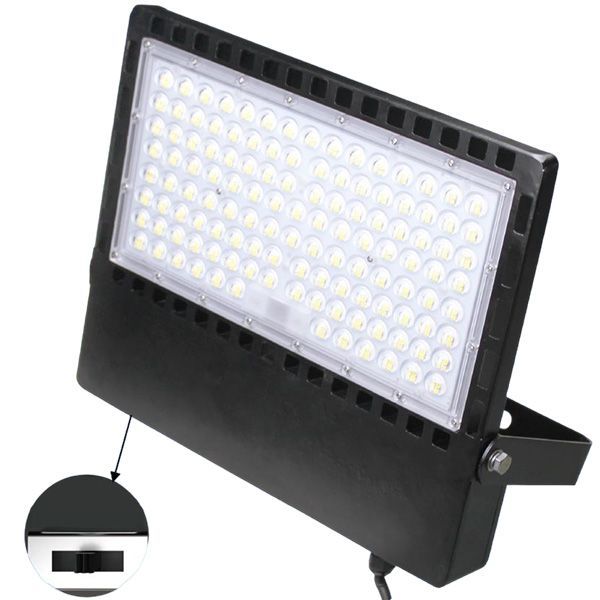

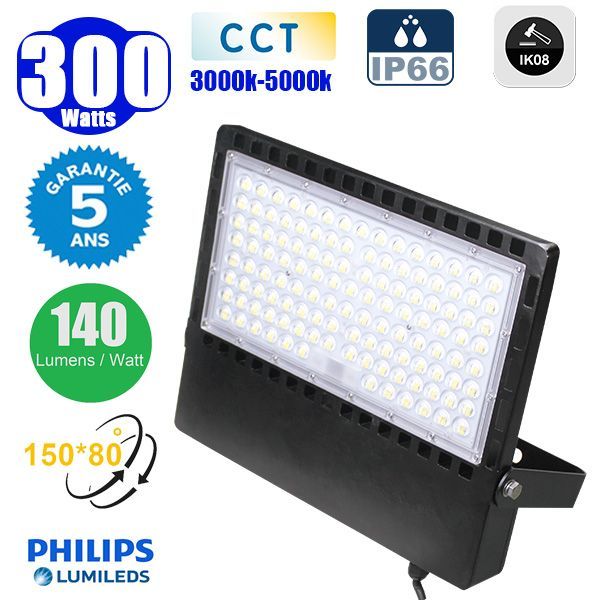

300 Watts – 150°x80°
242 pieces
150 Lumens/Watt
45,000 Lumens
Product dimensions
400 x 305 x 45 mm
Packaging dimensions
455 x 440 x 110 mm
Angle 150*80°
Weight 4.46 kg

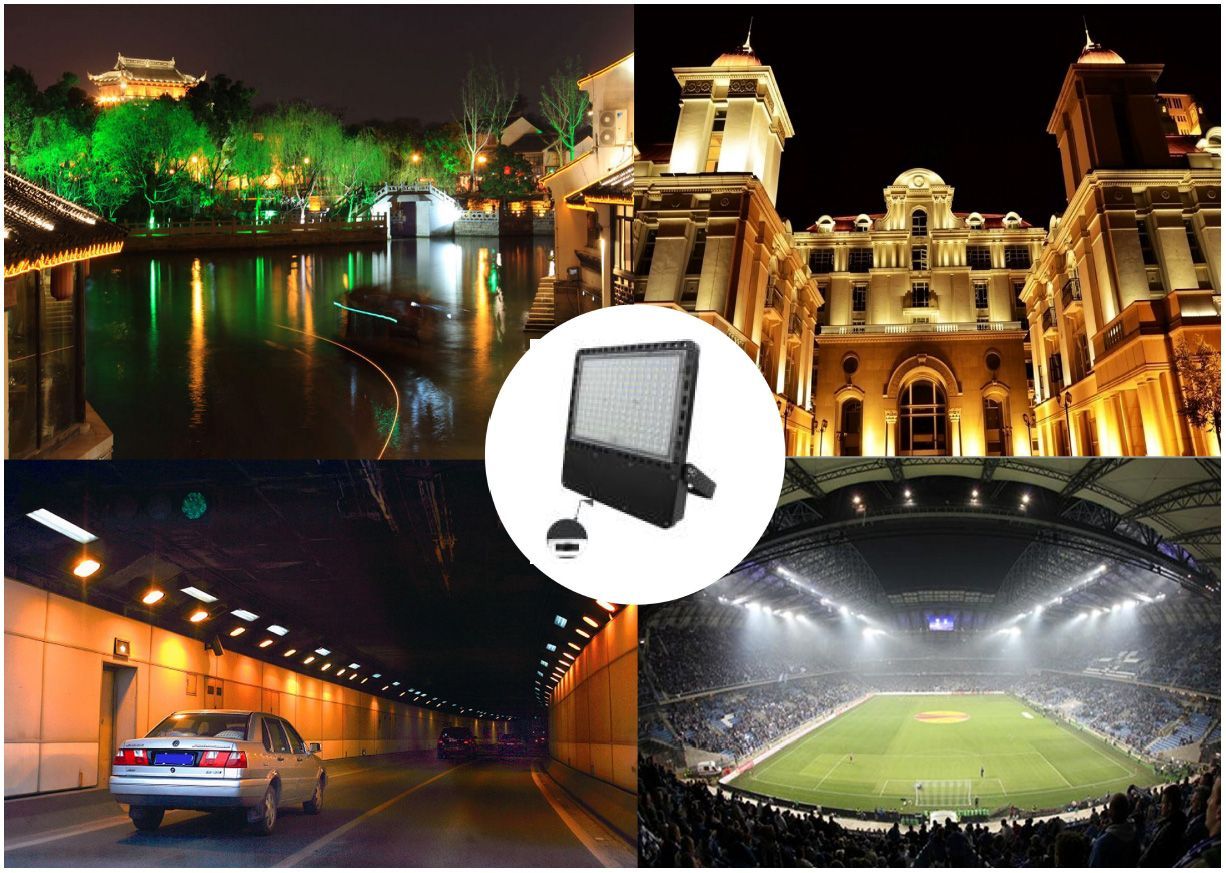

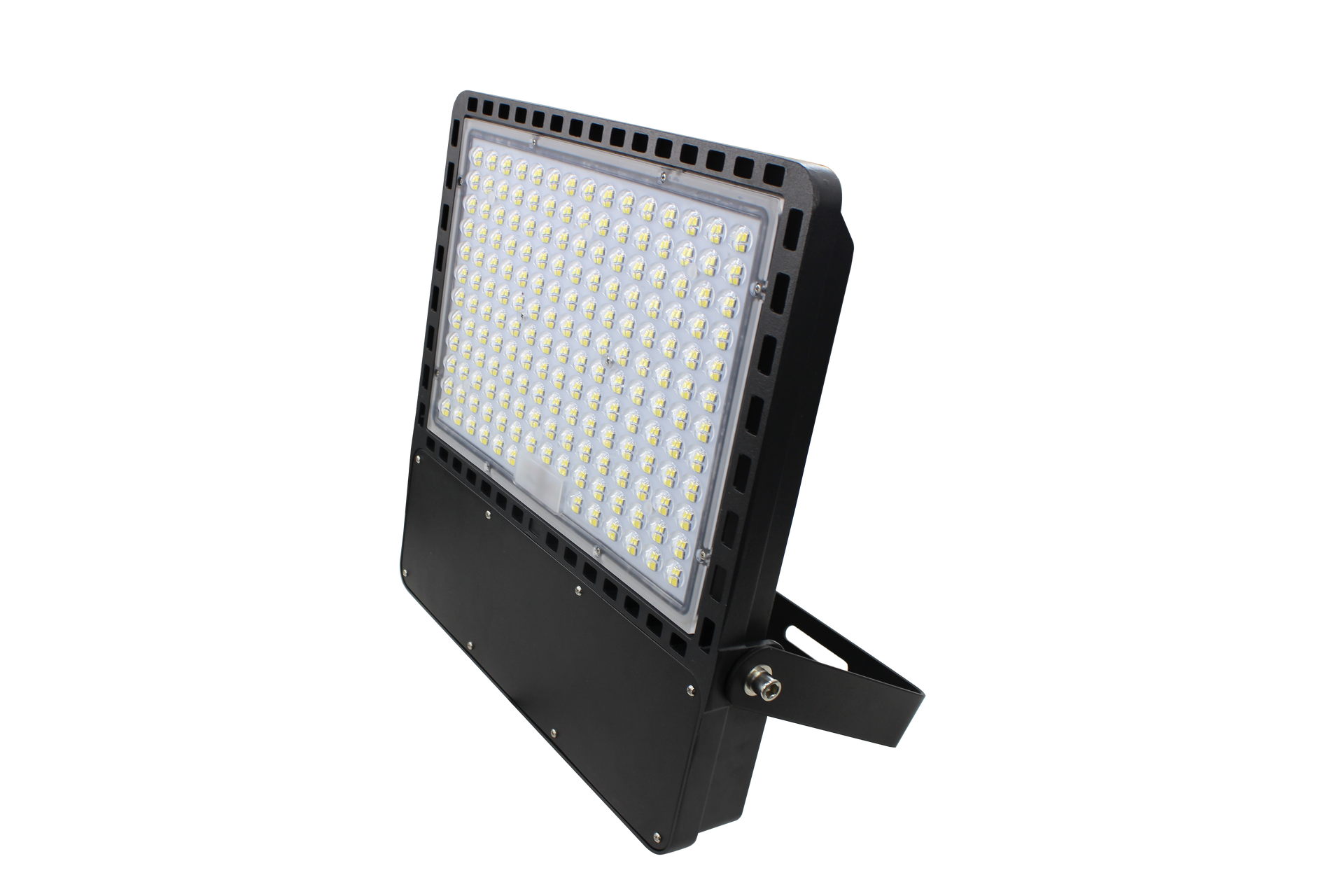

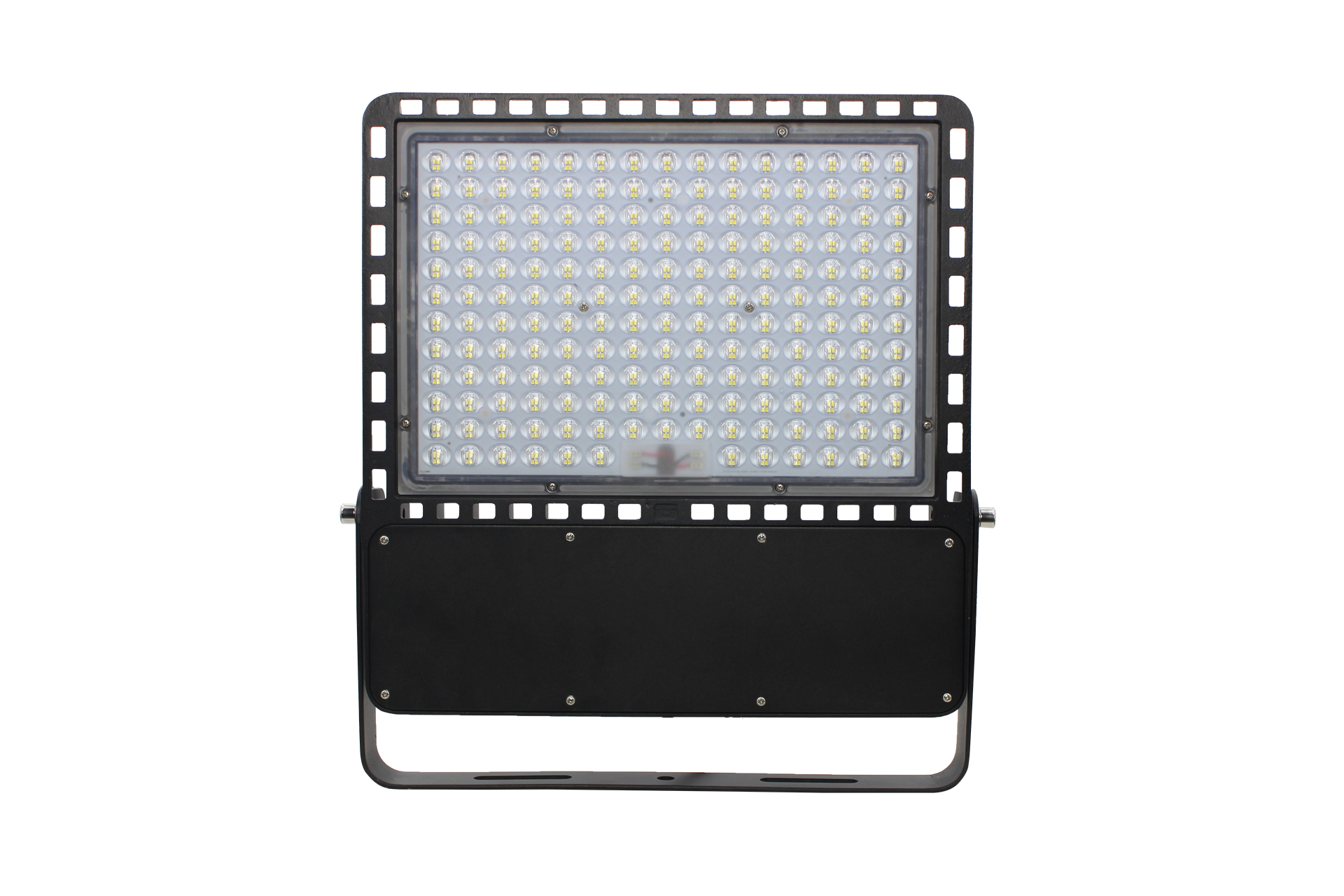

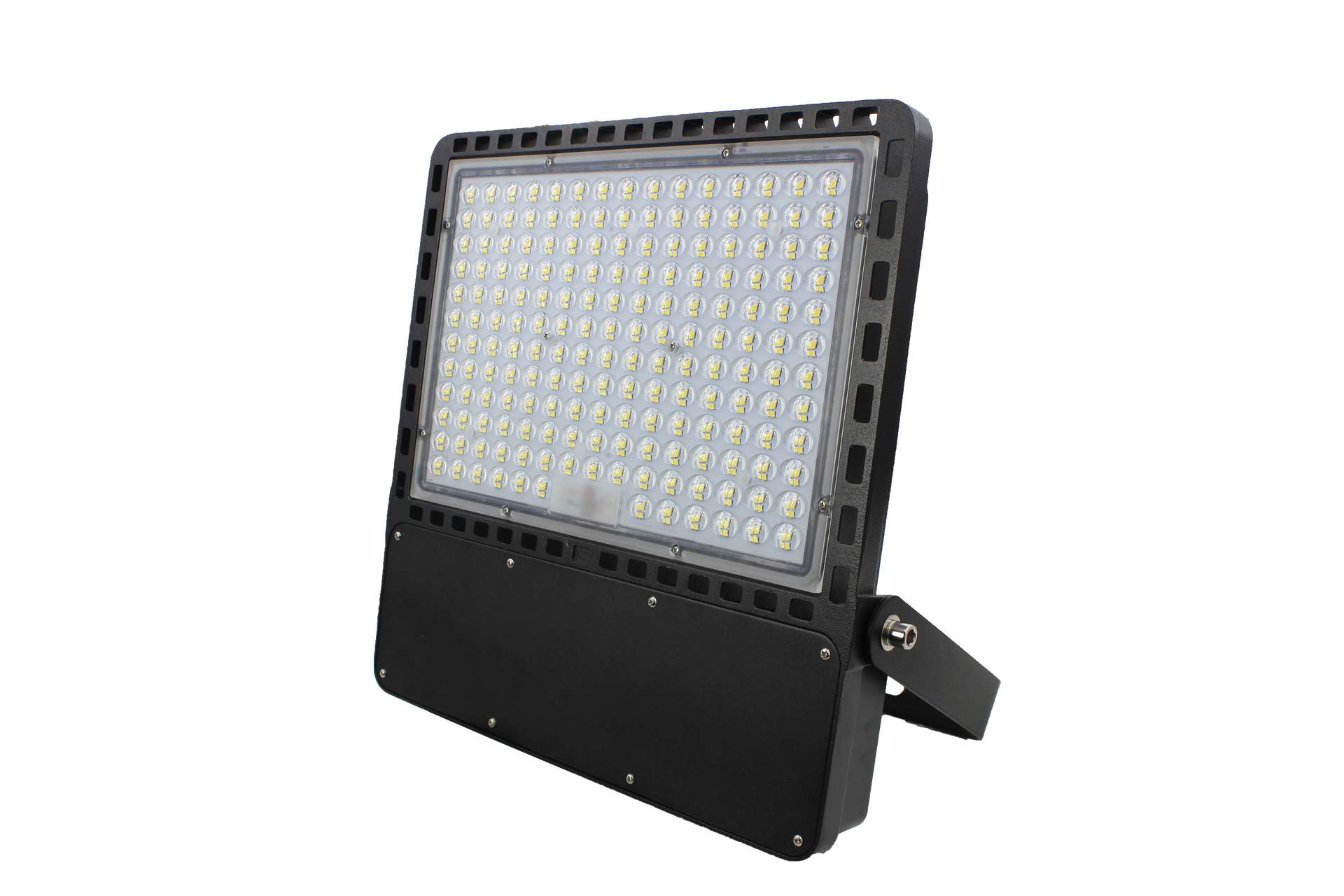

400 Watts – 150°x80°

354 pieces
150 Lumens/Watt
60,000 Lumens
Product dimensions
463 x 408 x 62 mm
Packaging dimensions
525 x 460 x 95 mm
Angle 150*80°
Weight 7.3 kg
