Série CITY PLUS EVO V2

Wired LED projector
CCT
CITY PLUS EVO V2 Series

ADJUSTABLE temperature color!

1 Projector, 3 temperature colors!
- Warm white 3000K
- Neutral white 4000K
- Cool white 6500k

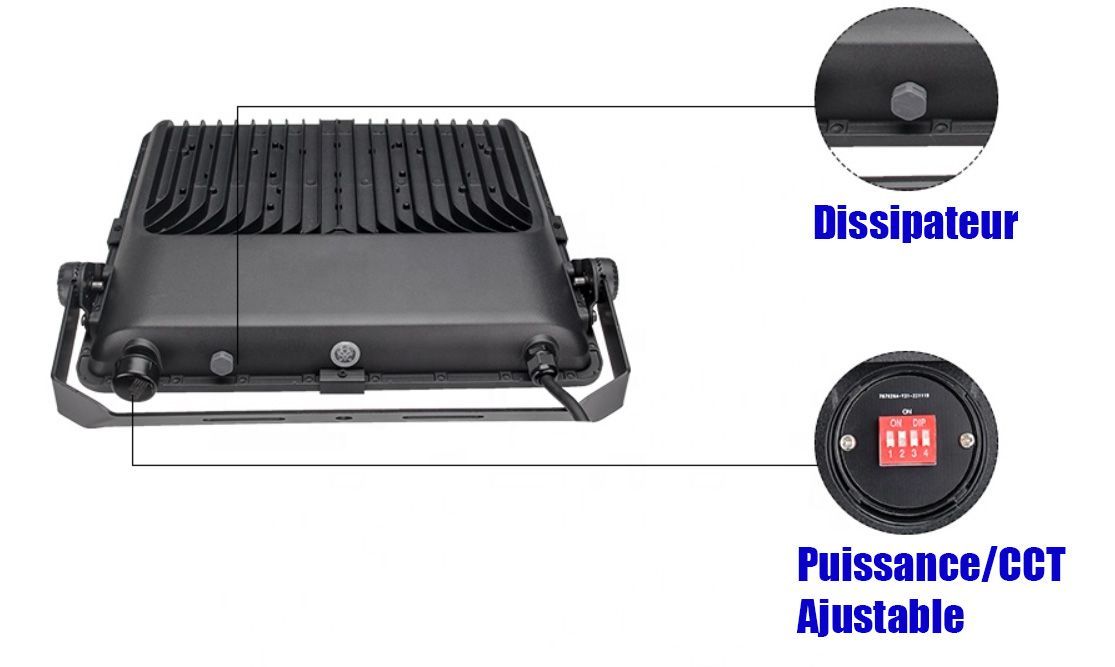

Adjust the lighting color as you like directly with the adjustable button!

What are the advantages of the 90° angle for a lighting projector?

A 90 degree angle for a lighting projector has several advantages:

Wide coverage:
A 90 degree angle allows for a wider area to be covered, effectively illuminating a larger space. This makes it an ideal choice for applications where overall, uniform illumination is required, such as lighting a room or outdoor space.

Uniform lighting: When the light beam has a 90-degree angle, it emits light more evenly across the entire illuminated area. This reduces shadows and improves visibility, which can be essential in environments such as warehouses, parking lots or meeting rooms.

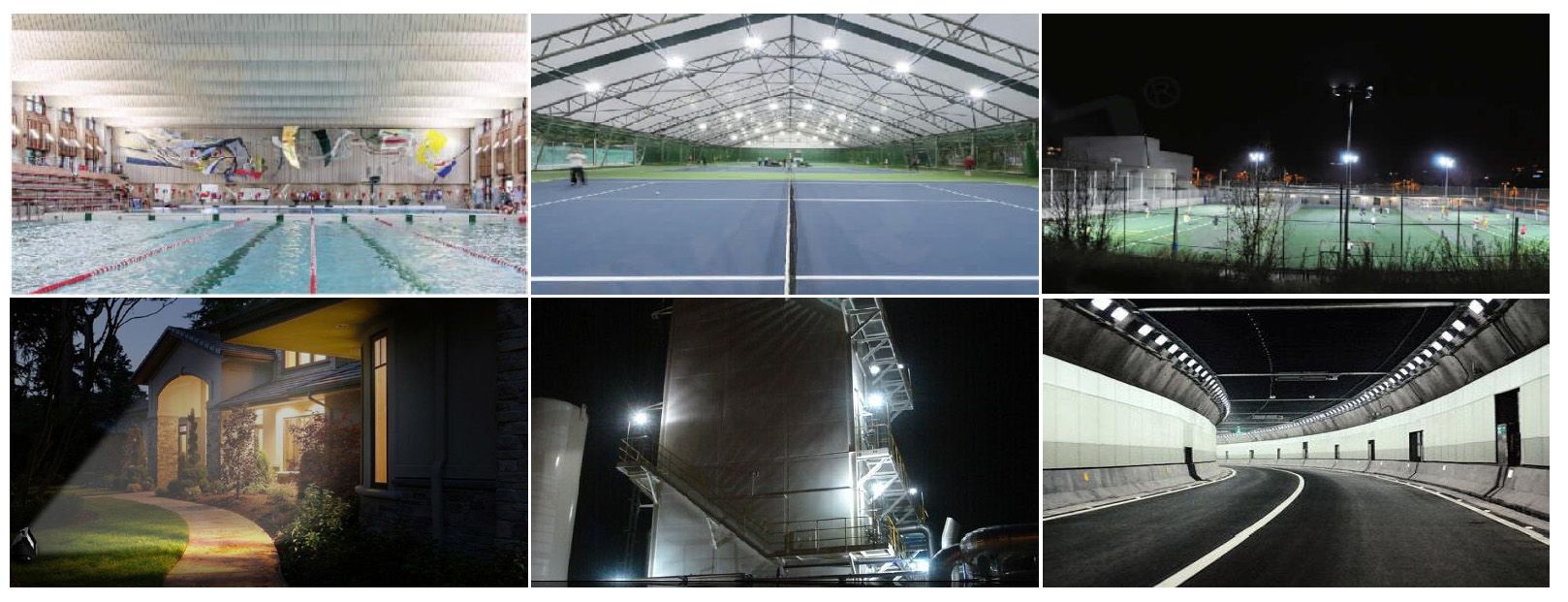

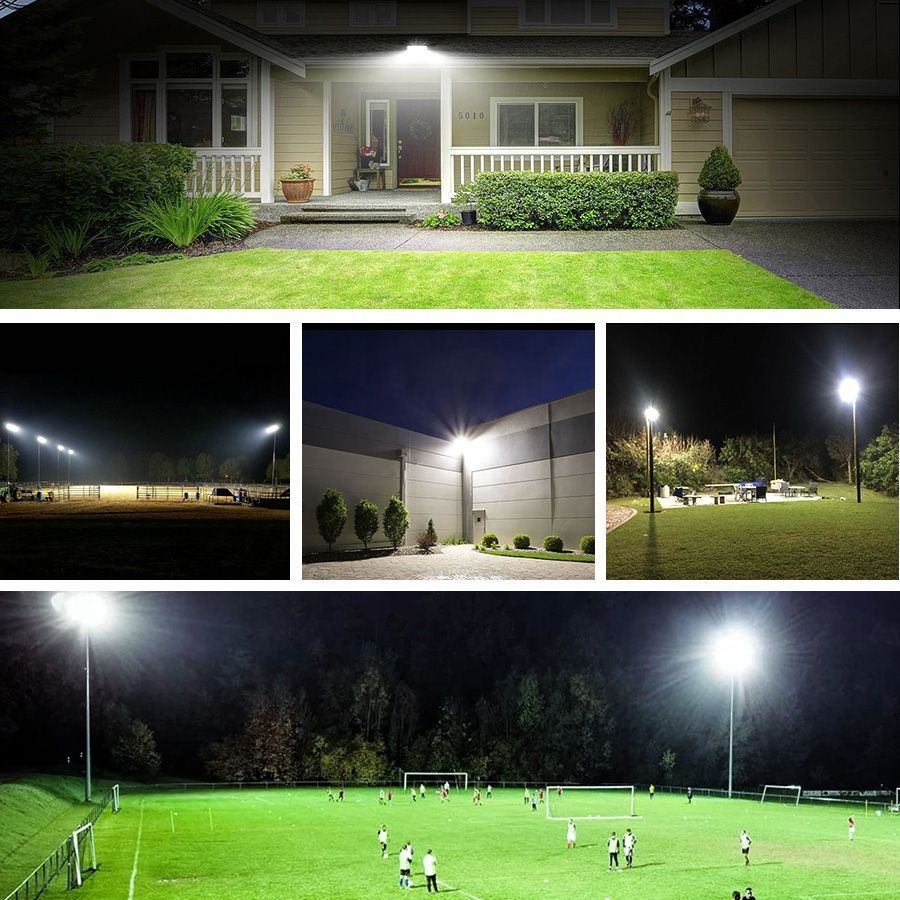

Adaptability: Floodlights with a 90 degree angle are versatile and can be used in many applications, as they can illuminate both large spaces and smaller areas.

Energy saving: Compared to floodlights with a narrower angle, a 90-degree floodlight may require fewer luminaires to cover the same area, which can result in reduced energy consumption and therefore long-term savings.

Fewer hot spots: A wider beam angle better distributes the heat emitted by the light source. This can help reduce the concentration of heat in one spot, which can be useful for some applications, especially in enclosed spaces.

Better light diffusion: 90 degree angle projectors are often used with diffusers to distribute the light even better and avoid glare. This can be particularly beneficial in environments such as offices, retail or schools.

However, it is important to note that the choice of lighting angle will always depend on the specific needs of each project. In some cases, a different angle may be preferable to achieve more targeted illumination or to meet specific lighting requirements. It is therefore essential to consider the technical specifications, location and intended use before choosing the right type of lighting projector.


--------------------------------------------------


IK08 protection index in lighting? More details!


The protection index IK08 refers to the mechanical resistance of a luminaire or electrical equipment to external shocks. This means that the luminaire with a protection rating of IK08 can withstand shocks of 5 joules of energy and is therefore considered relatively robust.


This can be an advantage in environments where there is a risk of shock or vibration, such as industrial areas, car parks, storage areas and public spaces. Luminaires with an IK08 rating can withstand impacts such as kicks, punches, vehicle impacts or falling objects without suffering significant damage.

However, it should be noted that the IK08 protection rating does not guarantee the quality of the lighting as such. It only refers to the mechanical resistance of the luminaire. It is therefore important to take into account other criteria such as luminous efficacy, colour temperature, light distribution and the service life of the light source to choose the right luminaire for each application.


--------------------------------------------------


What is 4KV surge protection?


4KV (kilovolt) overload protection:



Protection of electronic components:

Power surges can damage sensitive electronic components in lighting fixtures, such as control circuits, LEDs and lighting drivers. 4KV surge protection helps limit these surges to a safe level, preventing costly damage and premature equipment failure.



Increased durability:

By protecting the projector from surges, the overall product life can be extended. Projectors with this protection can withstand unexpected voltage fluctuations and provide more stable and reliable performance over a longer period of time.



Reduced maintenance costs:

Lighting fixtures equipped with 4KV overload protection are less likely to experience surge-related failures. This translates into reduced maintenance costs as there is less risk of premature equipment replacement.



Increased security:

Power surges can also cause safety hazards such as electrical sparks, fires or electric shocks. 4KV surge protection helps minimize these risks by keeping the voltage at a safe and controlled level.



Compliance with safety standards:

Many countries and organizations have specific standards for electrical safety. Including 4KV surge protection in a lighting fixture can help comply with these standards and obtain the necessary certifications for placing on the market.



Adaptability to unstable environments:

In some areas where the power grid may be subject to frequent voltage fluctuations, 4KV overload protection is particularly beneficial to ensure proper operation of the projector and to protect electrical installations from potential surges.



It is essential to consider overload protection when selecting a lighting fixture, especially if the location has the potential for frequent power surges or if equipment reliability and durability are high priorities.


--------------------------------------------------


IP66 protection rating in lighting? The strong points!


The IP66 protection rating is

a high level of protection for electrical or electronic equipment,

including for lighting luminaires. Lighting luminaires with an IP66 protection rating are

designed for use in harsh outdoor environments,

such as industrial areas, sports facilities and marine environments.


One of the

Main advantages of IP66 protection rating

for lighting fixtures is the

protection it offers against outdoor elements such as rain, snow, dust and insects.

IP66 lighting fixtures are completely

protected against dust

and can

withstand powerful water jets

from all directions. This ensures that the luminaires

remain functional even in harsh weather conditions,

which is particularly important for the

outdoor applications.


Another advantage of the IP66 rating for lighting fixtures is that it

can extend the life of lamps and electrical components by protecting them from damage caused by exposure to water and dust. This reduces long-term maintenance and replacement costs

, which can be a significant advantage for large-scale lighting installations.


Ultimately, the IP66 rating is a high level of protection for lighting fixtures, which

can provide increased reliability and durability in harsh outdoor environments.


--------------------------------------------------


Philips LUMILEDS LED, what exactly is it?


Philips Lumileds LEDs are renowned for their quality and high performance, making them a popular choice for floodlights. Here are some of the benefits of Philips Lumiled LEDs for a floodlight:



High luminous efficiency:

Philips Lumileds LEDs offer superior luminous efficacy, meaning they produce more light relative to the amount of energy consumed. This results in better energy savings and lower operating costs.



Long life:

Philips Lumileds LEDs are designed to be durable and have an exceptionally long lifespan, often exceeding 50,000 hours of use. This significantly reduces the need for maintenance and frequent bulb replacement, which is particularly beneficial for floodlights installed in hard-to-reach locations.



Reliability and stability:

Philips Lumileds LEDs are manufactured to strict quality standards, ensuring their reliability and stability in terms of light performance. They have low brightness degradation over time, which helps maintain a constant light output throughout their lifetime.



High quality of light:

Philips Lumileds LEDs produce high-quality light with accurate colour rendering. This is essential for projectors used in applications where faithful colour reproduction is required, such as in museums, theatres or television studios.



Design flexibility:

Philips Lumileds LEDs are available in a variety of sizes, shapes and configurations, giving lighting designers great flexibility to create tailor-made products to meet the specific needs of each project.



Low heat emission:

Philips Lumileds LEDs generate less heat than traditional light sources such as incandescent lamps or halogen lamps. This reduces the risk of overheating the projector and contributes to better thermal management, which further extends their lifespan.



Environmentally friendly:

Philips Lumileds LEDs do not contain mercury or other harmful substances, making them environmentally friendly. In addition, their energy efficiency helps reduce the overall carbon footprint by reducing electricity consumption.



In summary, Philips Lumileds LEDs offer significant advantages in terms of energy efficiency, durability, quality of light and reliability for lighting fixtures. They are an attractive option for commercial, industrial, residential and outdoor applications, where luminaire performance and longevity are essential.


--------------------------------------------------


CCT: Color Changing Temperature, what are the advantages for lighting projectors?


CCT, or Color Changing Temperature, is a feature of LED lighting fixtures that allows you to adjust the color temperature of the light emitted by the light source. Here are some important benefits of CCT for lighting fixtures:



Adaptability:

The ability to adjust the color temperature of the light allows lighting spotlights to adapt to different situations and lighting needs. For example, in a commercial environment, a higher color temperature (cool white) can be used to create a dynamic and stimulating atmosphere, while a lower color temperature (warm white) may be preferred in relaxation and rest areas.



Artistic flexibility:

For lighting designers and entertainment professionals, the CCT function offers great artistic flexibility. They can adjust the color temperature to achieve specific effects, unique moods and captivating staging.



Color rendering:

Different color temperatures can affect the perception of colors in a space. The right color temperature can improve color rendering, which is crucial in areas such as retail, museums, and exhibition spaces where color accuracy is essential.



Visual comfort:

The ability to adjust color temperature can improve visual comfort for occupants of a space. For example, in an office, a color temperature closer to natural light (neutral white) can reduce eye strain and improve concentration.



Versatility:

The lighting floodlights with CCT function are versatile and can be used in various applications including indoor and outdoor spaces, event stages, offices, retail, hotels, etc.



Energy saving:

By adjusting the color temperature to specific lighting needs, it is possible to optimize energy efficiency and reduce electricity consumption, particularly by opting for lower color temperatures when less intense light is required.



Personalized atmosphere:

The CCT feature allows you to create personalized ambiances based on the preferences of the occupants or users of a space, which can help improve their overall experience.



In summary, the CCT function offers great flexibility and many advantages for lighting fixtures. It allows easy adaptation to specific needs, improves lighting quality, offers creative options for lighting designers, and helps improve visual comfort and energy efficiency of lighting installations.


--------------------------------------------------


CB, CE, SAA, RoHS certification for wired lighting projectors, what are the advantages?


The certifications you mentioned (CB, CE, SAA, RoHS) bring several benefits for wired lighting fixtures. Here's what each of these certifications means and the benefits they offer:



CB Certification (International Safety Certification):

CB certification is an international electrical safety certification system. Obtaining this certification means that the product has been tested and assessed for compliance with international electrical safety standards. The benefits of CB certification include global recognition of compliance with safety standards, making it easier to enter different international markets without having to repeat safety tests.



CE marking (European Conformity):

The CE marking indicates that the product complies with the safety, health and environmental protection requirements of the European Union (EU). For wired lighting fixtures, this means that the product meets the electrical safety standards and other relevant EU regulations. The main benefit of CE certification is that it allows the product to be legally marketed in EU countries and other countries that recognize the CE marking.



SAA certification (Standards Australia):

SAA certification is specific to Australia. It indicates that the product complies with electrical safety standards and other regulations in Australia. Obtaining this certification is essential if you want to sell your wired lighting fixtures in the Australian market.



RoHS (Restriction of Hazardous Substances) Directive:

The RoHS Directive aims to restrict the use of certain hazardous substances in electrical and electronic equipment. Adherence to the RoHS Directive ensures that wired lighting fixtures do not contain excessive amounts of substances such as lead, mercury, cadmium, hexavalent chromium and other restricted substances. This helps reduce the negative environmental and health impacts associated with these substances.



In summary, these certifications offer the following benefits for wired lighting fixtures:



Easy access to international markets thanks to CB certification.


Compliance with electrical safety standards and other regulations for marketing in the EU via CE marking.


Compliant with Australian Standards for sale in Australia through SAA certification.


Reduction of hazardous substances and environmental impacts through RoHS compliance


Spécifications techniques générales
Lumens/watt
Angle
Rules
RA
PF
SDCM
Protection à l'impact
Adjustable lighting color
Tension d’alimentation
Minimum lifespan
Fréquence
Material
Longueur du câble
   Type de LED
Operating temperature
Humidité
Certification
Garantie
Fiche Technique
IES file
140 Lumens/watt

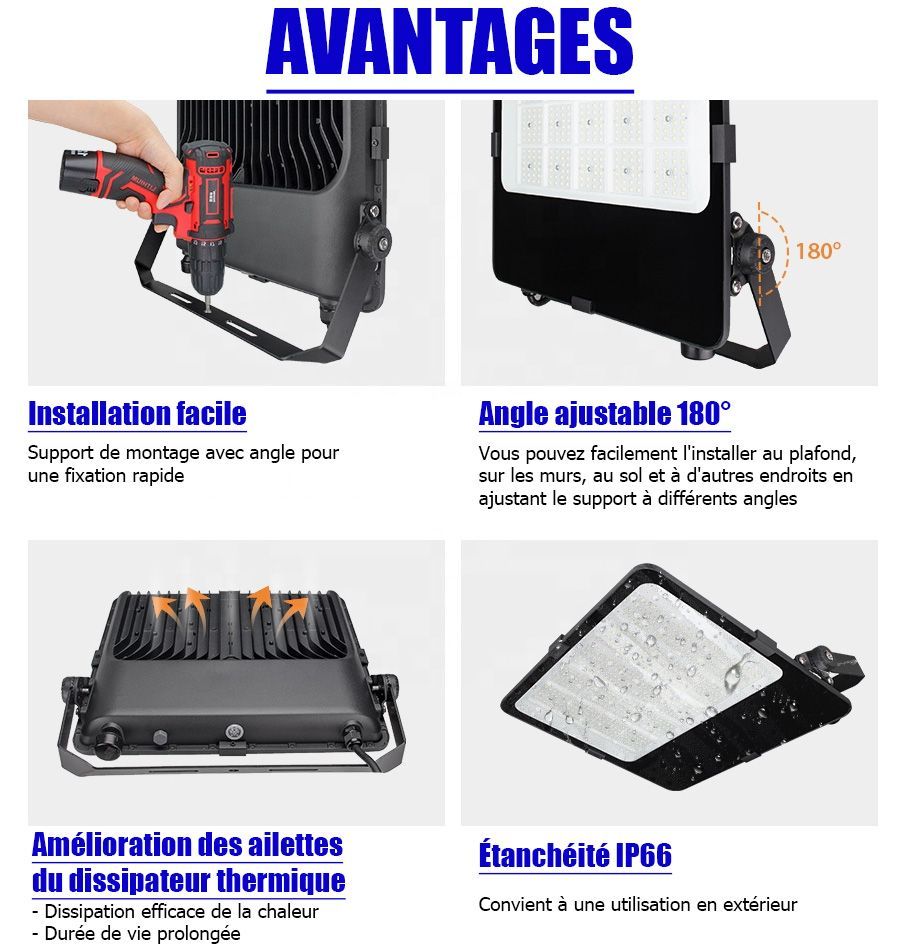

90° (Support adjustable 180°)
IP66
> 80
0.9
< 6
IK8
3000k / 4000k / 6000k
100-277V
50,000 Hours
50 -60 HZ
Aluminium, Verre / PC
1 m

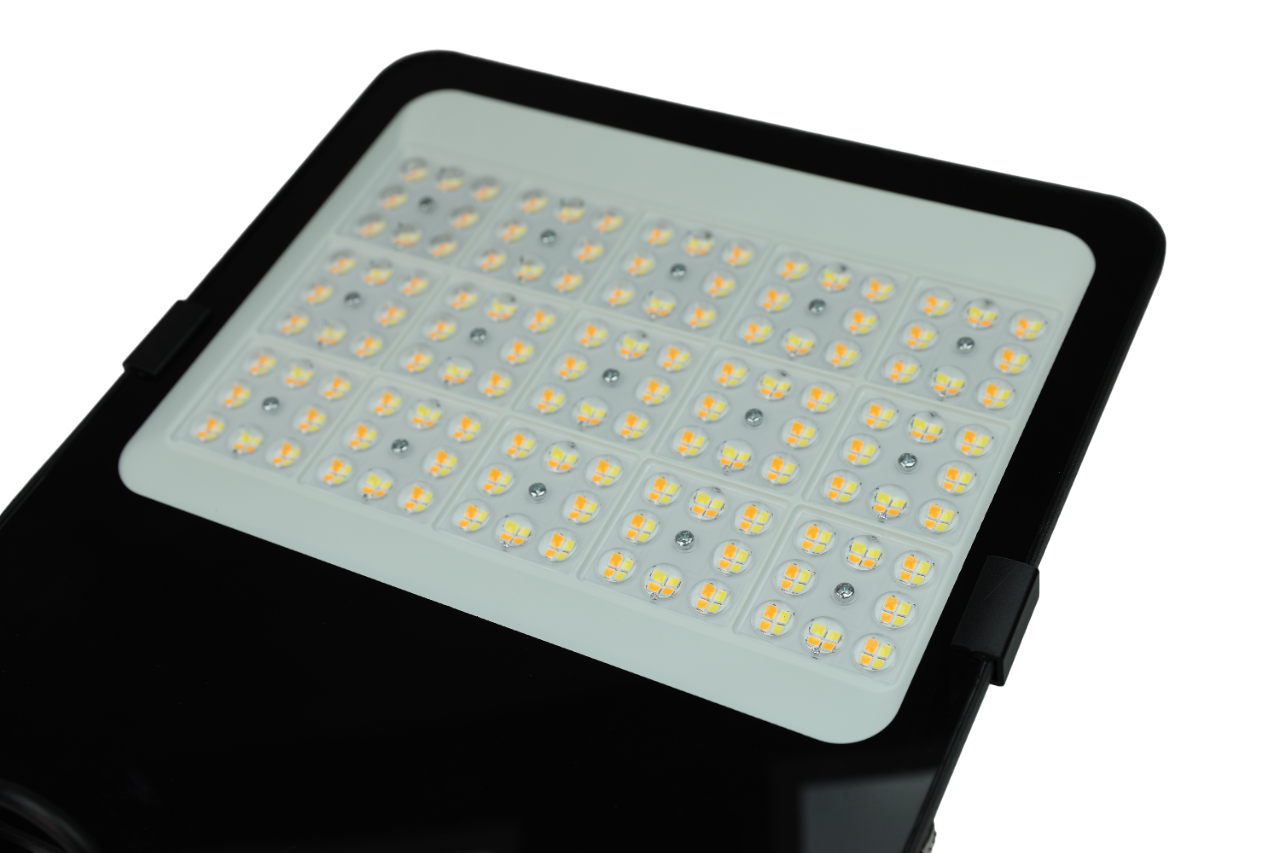

Lumileds 2835
-40°C / 45°C
10% to 90% RH
CB, CE, SAA, RoHS
5 years
Fiche Technique PDF
Fiche Technique PDF
Lumens/watt
140 Lumens/watt
Angle
90° (Support adjustable 180°)
Rules
IP66
RA
> 80
PF
0.9
Protection à l'impact
IK8
Adjustable lighting color
3000k / 4000k / 6000k
Tension d’alimentation
100-277V
Minimum lifespan
50,000 Hours
Fréquence
50 - 60 HZ
Material
Aluminium, Verre / PC
Longueur du câble
1 m
Type de LED
Lumileds 2835
Operating temperature
-40°C / 45°C
Humidité
10% to 90% RH
Certification
CB, CE, SAA, RoHS
Garantie
5 years
Technical Sheet
Fiche Technique PDF
IES FILE
Fiche Technique PDF
DETAILS BY POWER

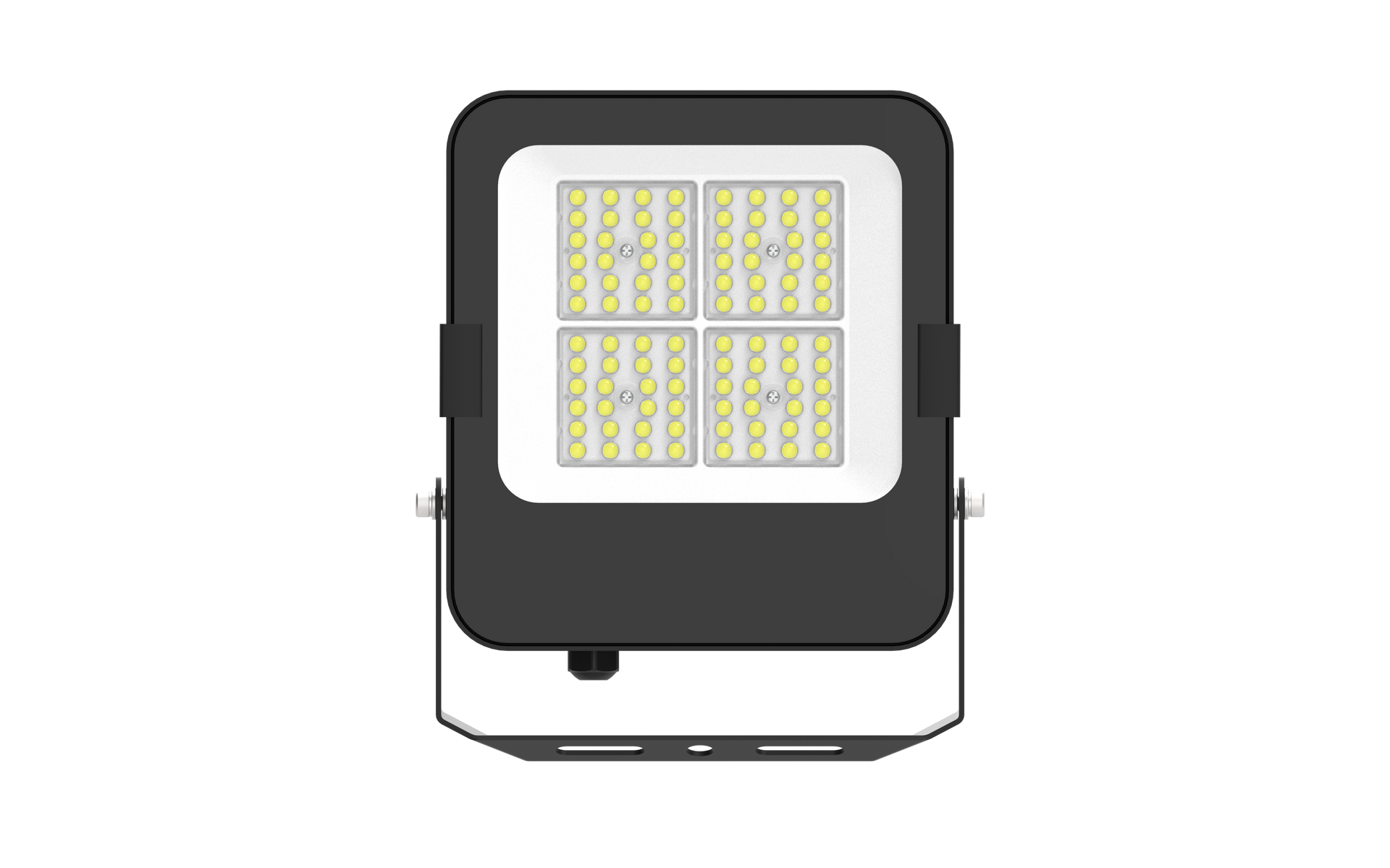

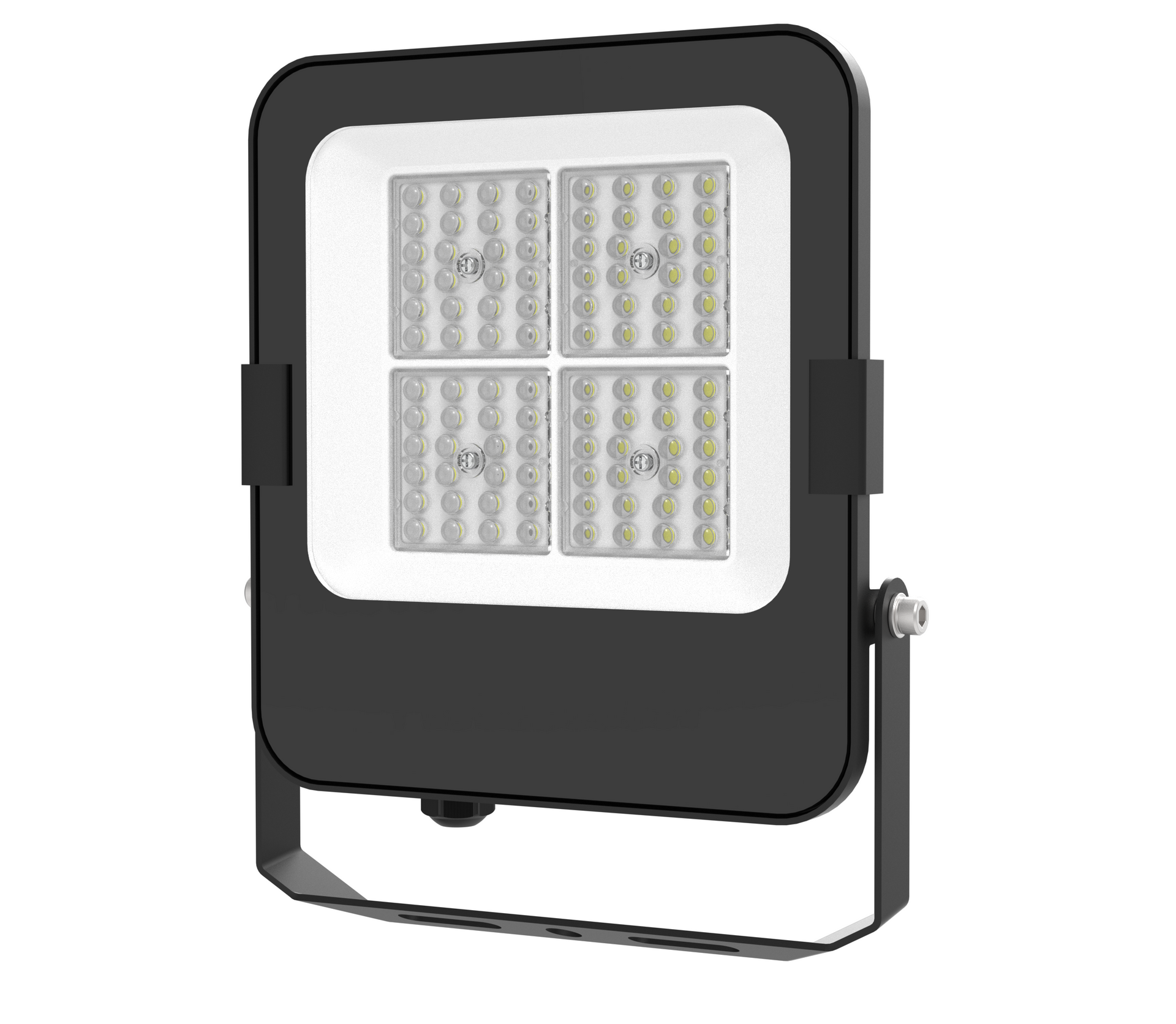

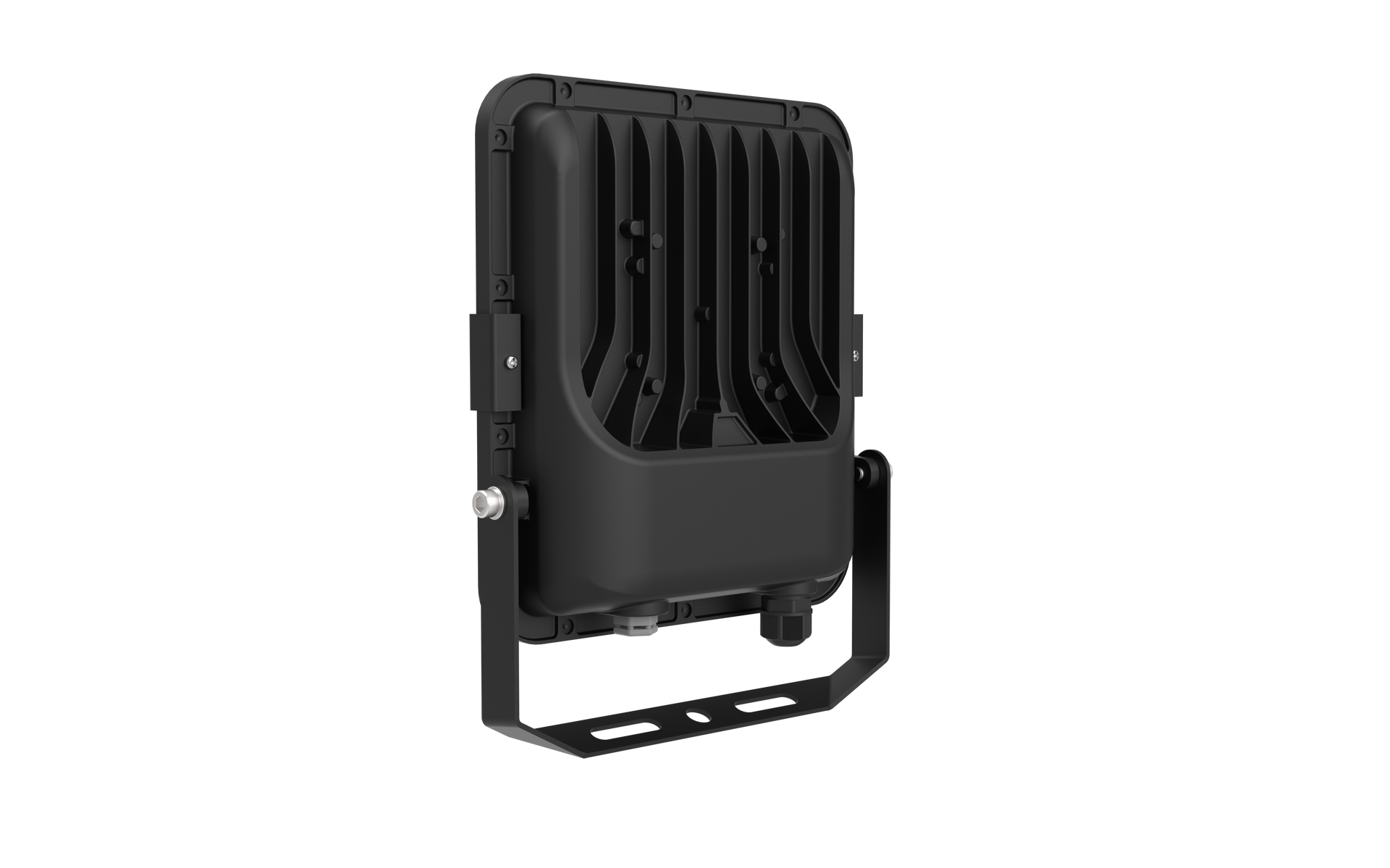

50 Watts - Adjustable
20W : 2800 Lumens
30W : 4200 Lumens
50W : 7000 Lumens
64 / 96 pièces
Dimensions du produit
252 x 213 x 43,5 mm
Dimensions de l'emballage
480 x 320 x 285 mm
Poids 1.1 kg

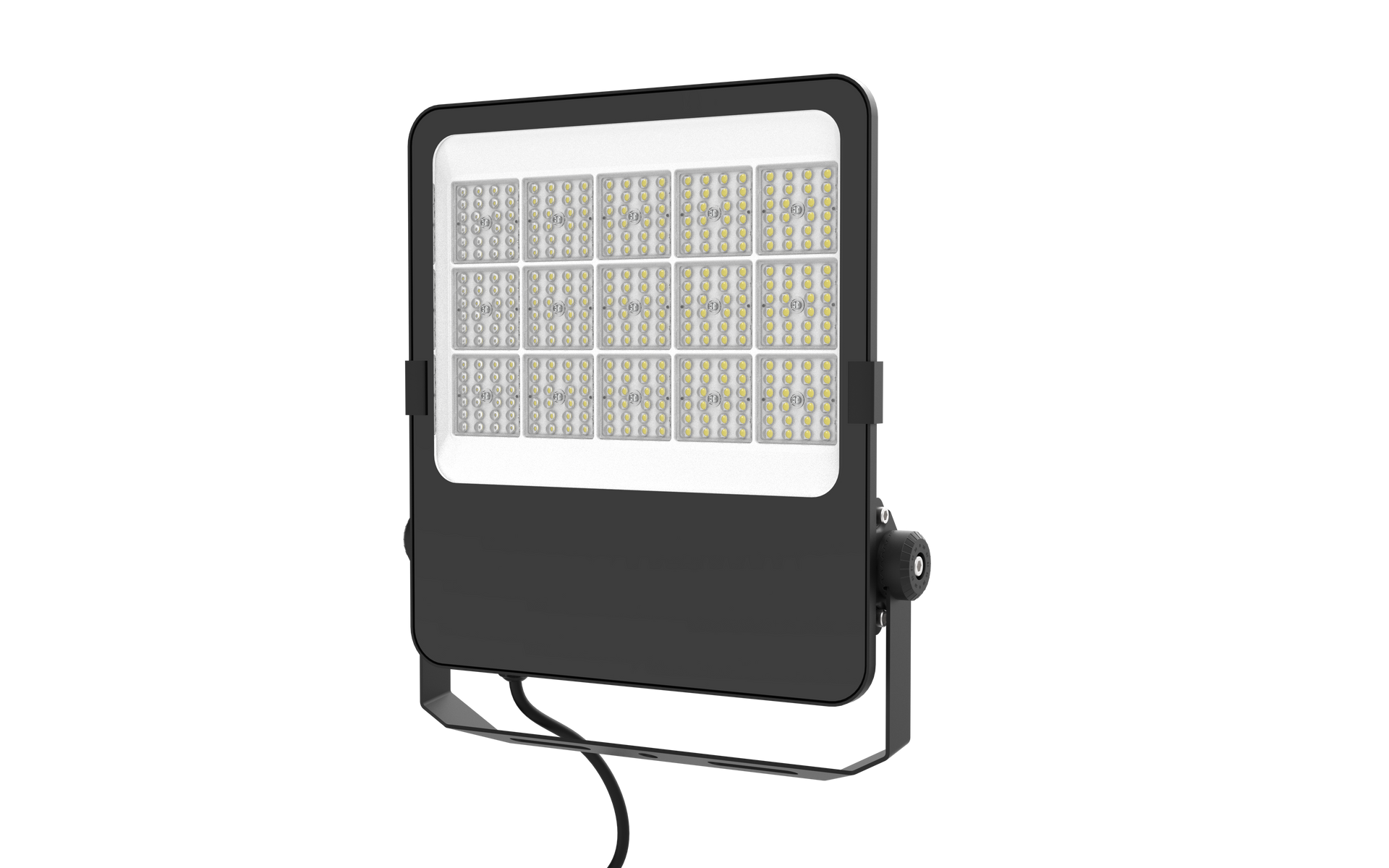

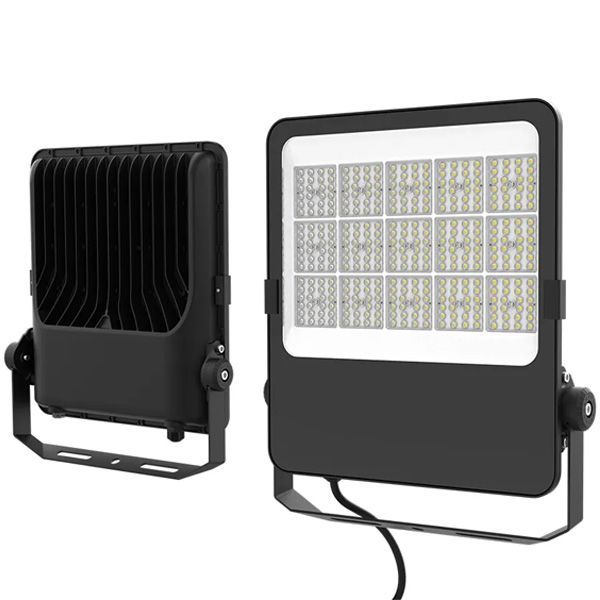

200 Watts - Adjustable

100W: 14,000 Lumens
150W: 21,000 Lumens
200W: 28,000 Lumens
360 pieces
Product dimensions
412 x 360 x 54 mm
Packaging dimensions
450 x 420 x 80 mm
Weight 4.5 kg

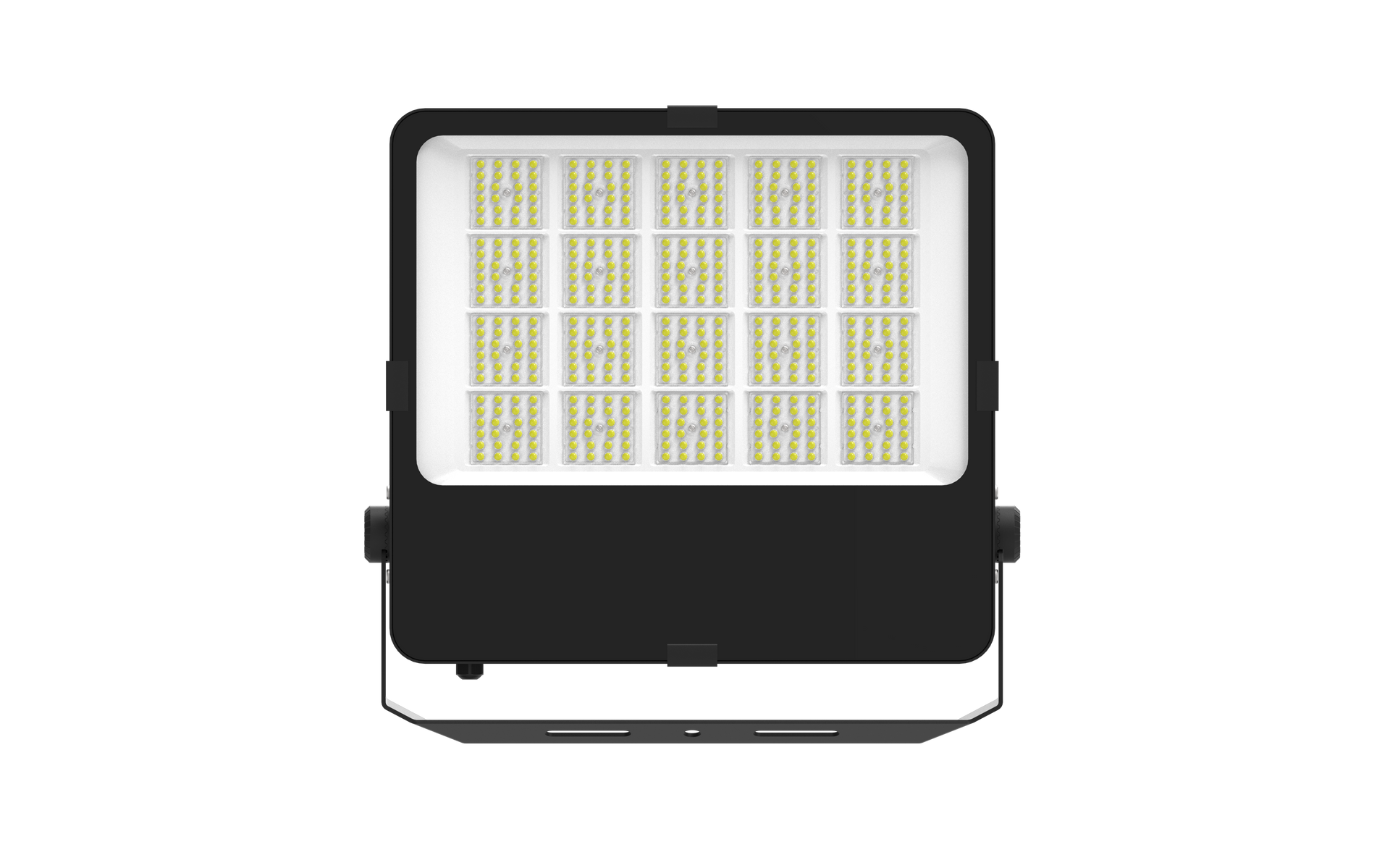

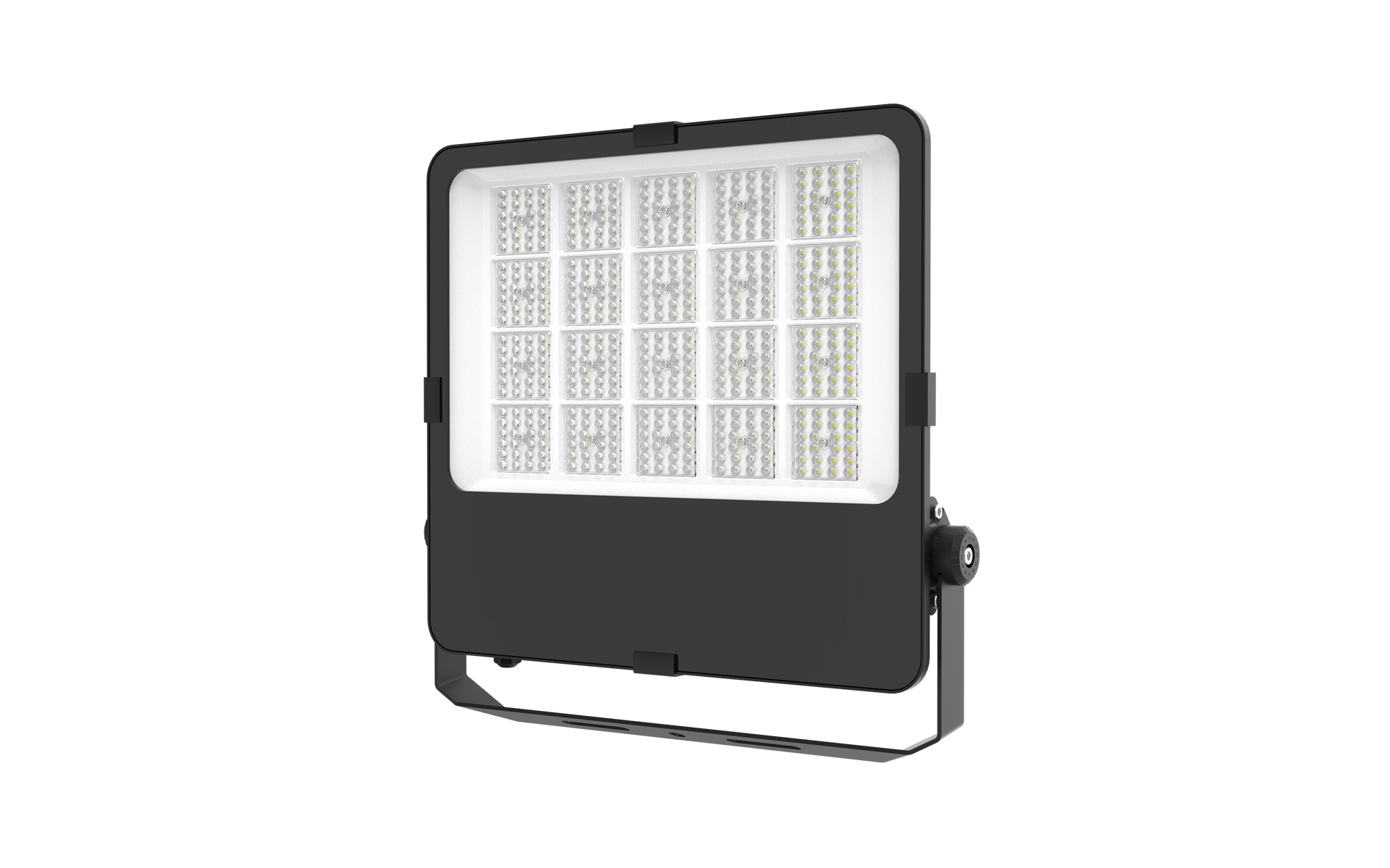

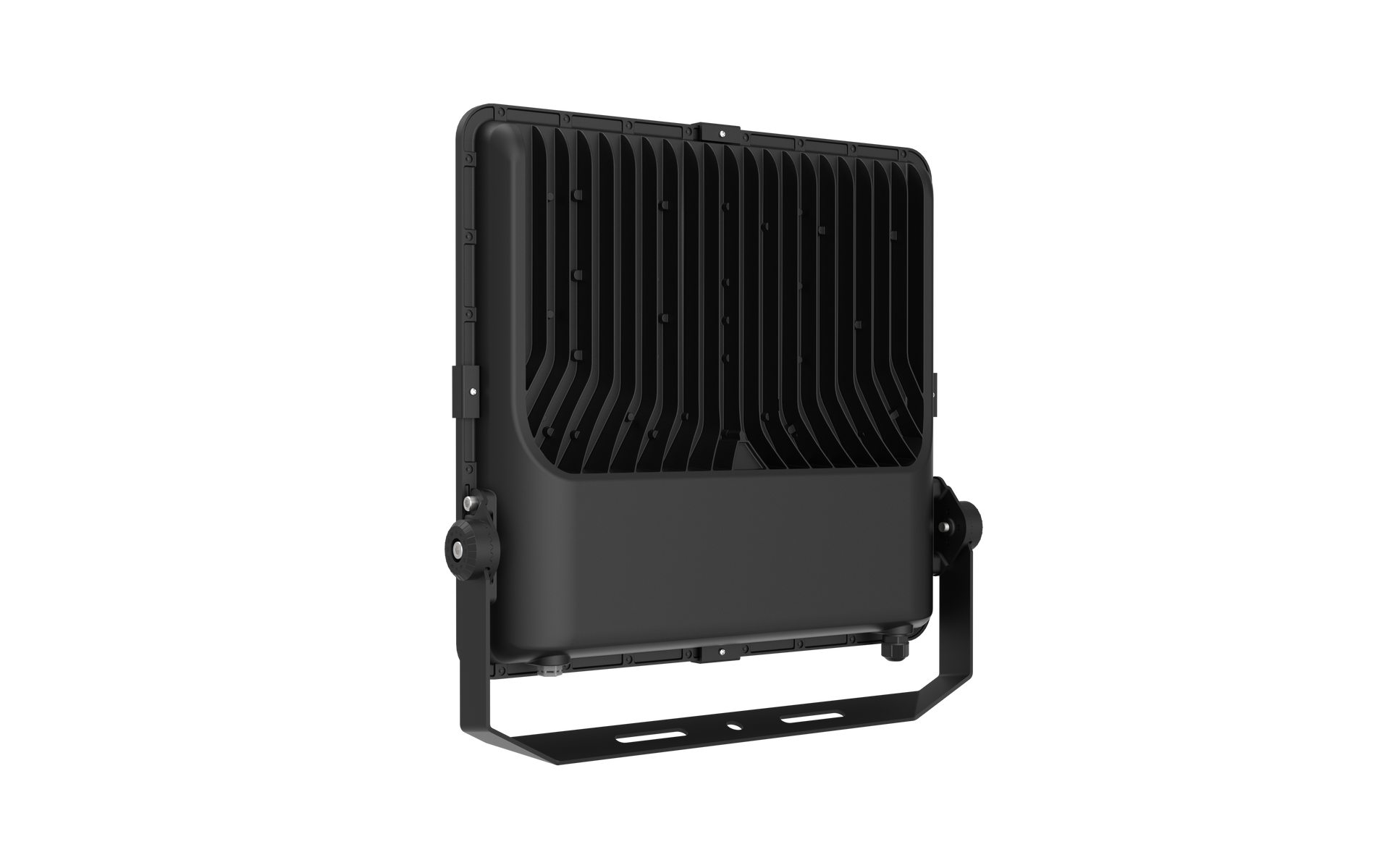

300 Watts - Ajustable
200W: 14,000 Lumens
250W: 21,000 Lumens
300W: 28,000 Lumens
480 pieces
Product dimensions
460 x 447 x 54 mm
Packaging dimensions
490 x 520 x 80 mm
Weight 6 kg

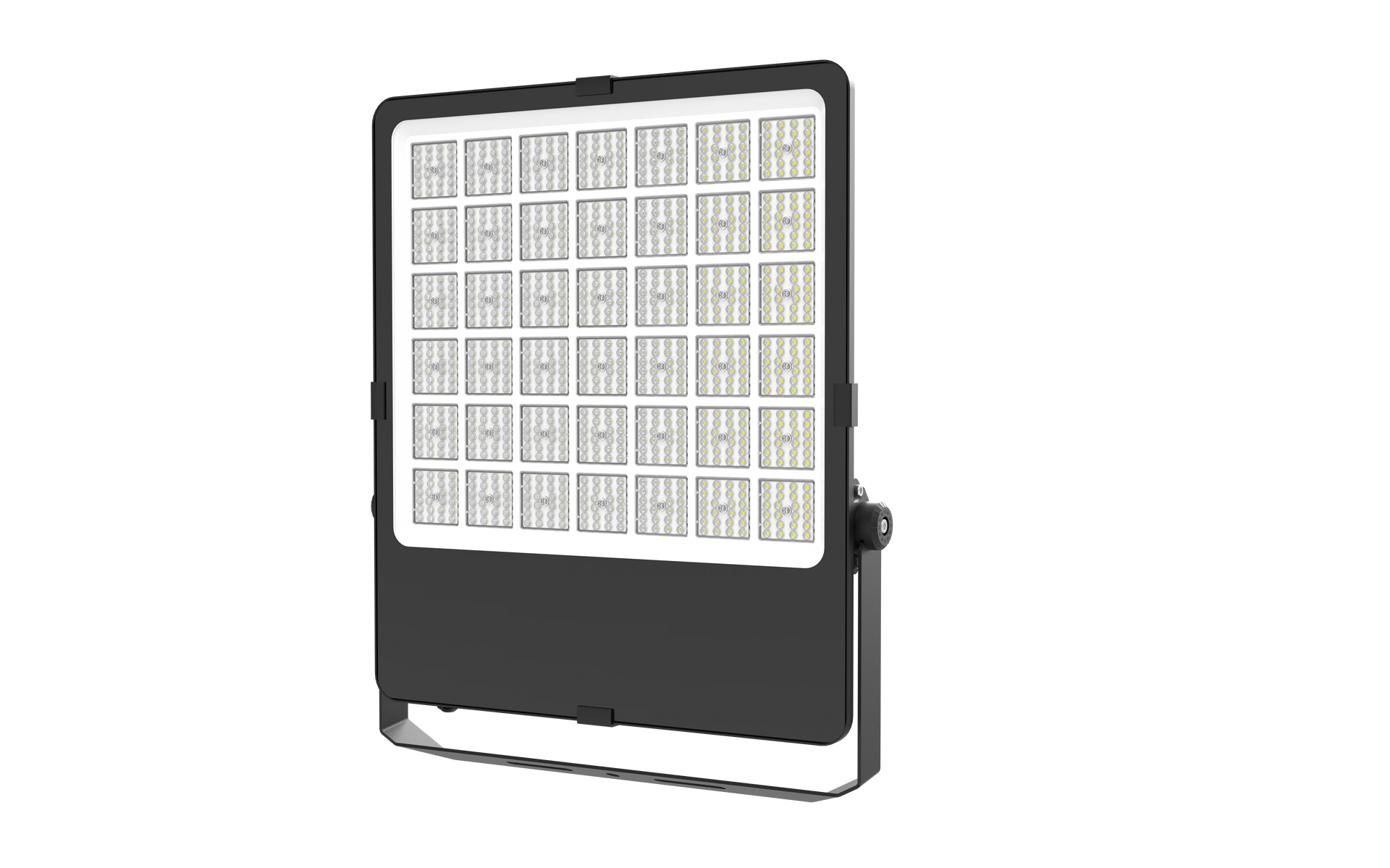

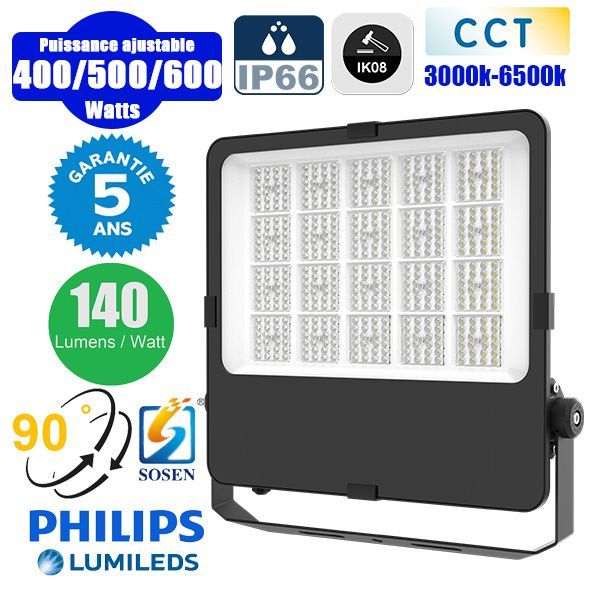

600 Watts - Adjustable

400W: 56,000 Lumens
500W: 70,000 Lumens
600W: 84,000 Lumens
1008 pieces
Product dimensions
622 x 520 x 62.5 mm
Packaging dimensions
665 x 600 x 85 mm
Weight 10 kg
