FUSION CCT Series - Adjustable Power

Linear industrial lamp
FUSION Series
9 in 1
Adjustable power 80 / 110 / 165W
Adjustable color 3000k / 4000k / 6000k

ADJUSTABLE temperature color!

1 Light, 3 temperature colors!
- Warm white 3000K
- Neutral white 4000K
- Cool white 6000k

Adjust the lighting color as you like directly with the adjustable button!

Spécifications techniques générales

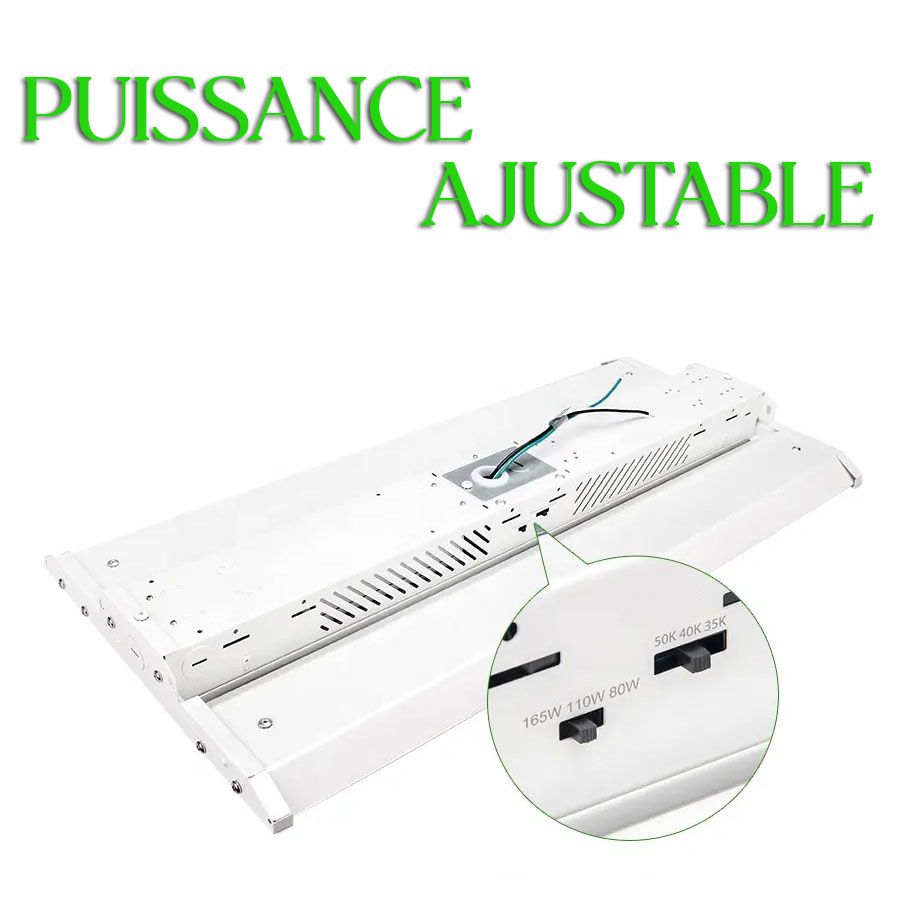

Adjustable power
Lumens
Lumens / Watt
Angle
Rules
RA
PF
Tension d’alimentation
Adjustable lighting color(button on the lamp to change the color)
Dimmable
Material
Fréquence
Minimum lifespan
Type de LED
Transformateur
Mounting type
Operating temperature

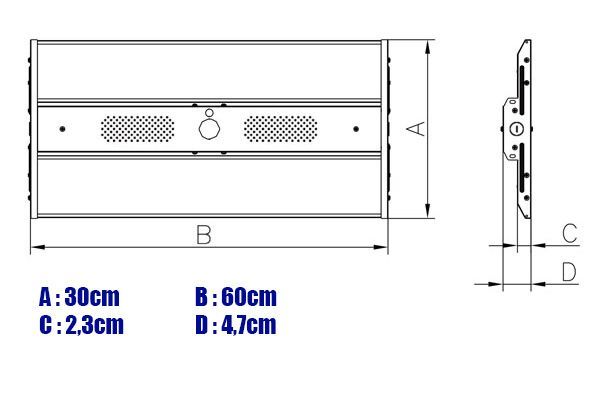

Dimensions
Certification
Poids
Garantie
Accessories included
Technical sheet
IES file
80 Watts
110 Watts
165 Watts
11 200 lumens - 80W
15 400 lumens - 110W
23 000 lumens - 165W
140 Lumens/Watt
120°
IP40
> 80
> 0,95
AC 100 - 277V
3000k / 4000k / 6000k
1 - 10V
Aluminium PC
50 - 60 Hz
50 000 heures
SMD 2835
WELED POWER
A suspension
-40°C / +50°C
60 x 30 x 4,7 cm
CE & ROHS
6,55 kg
5 years
- 2 x 1 meter hanging chain - 2 x V-hook
Fiche Technique PDF
Fiche Technique PDF
Adjustable power
80 Watts
110 Watts
165 Watts
Lumens
11 200 lumens - 80W
15 400 lumens - 110W
23 000 lumens - 165W
Lumens / Watt
140 Lumens / Watt
Angle
120°
Rules
IP640
RA
> 80
Supply voltage
AC 100 - 277V
Dimmable
1 - 10V
Material
Aluminium PC
Fréquence
50 - 60 HZ
Minimum lifespan
50 000 heures
Type de LED
SMD 2835
Transformateur
WELED POWER
Type de montage
A suspension
Operating temperature
-40°C / +50°C
Dimensions
60 x 30 x 4,7 cm
Certification
CE ROHS
Poids
6,55 kg
Garantie
5 years
Accessories included
- 2 x 1 meter hanging chain - 2 x V-hook
Technical sheet
Fiche Technique PDF
IES file
Fiche Technique PDF
