Série ULTIME P1 - CCT - Puissance ajustable

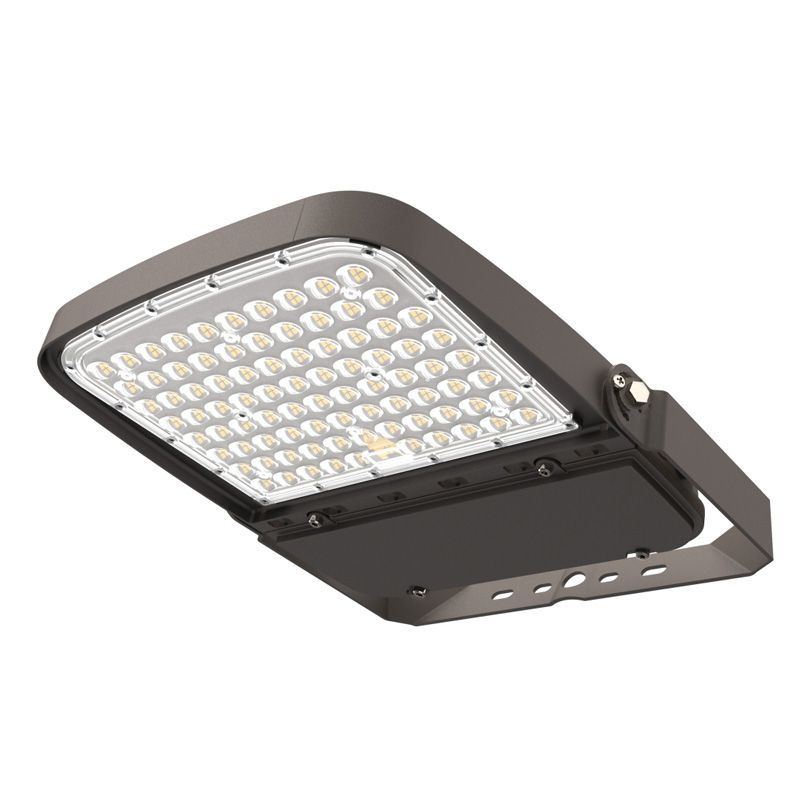

Wired LED projector
ULTIMATE P1 Series
CCT - Adjustable Power

ADJUSTABLE temperature color!

1 Light, 3 temperature colors!
- Warm white 3000K
- Neutral white 4000K
- Cool white 6000k

Adjust the lighting color as you like directly with the adjustable button!

Spécifications techniques générales
Adjustable power
(button on the projector)
Lumens
Lumens / Watt
Angle
Rules
RA
PF
Tension d’alimentation
Protection de surcharge
Adjustable lighting color(button on the lamp to change the color)
Minimum lifespan
Material
Fréquence
LED Name
Type de LED
Transformateur
Color
Operating temperature
Storage temperature
Dimensions produit
Dimensions emballage
Dimmable
Certification
Poids
Garantie
Technical sheet
IES file
100 Watts
150 Watts
200 Watts
18 000 lumens - 100W
25 500 lumens - 150W
32 000 lumens - 200W
100W : 180 Lumens/Watt 150W : 170 Lumens/Watt 200W : 160 Lumens/Watt
150 x 90°
IP66
> 70
> 0,95
AC 100 - 277V
6KV / 10KV
3000k / 4000k / 6000k
100,000 Hours
Aluminium moulé sous pression
50 - 60 Hz
336 pieces
Philips Lumileds SMD 3030
BQ Driver
Dark bronze
-40°C / 50°C
-40°C / 70°C
42,7 x 30 x 6,5 cm
61 x 34,5 x 12,5 cm
0 à 10V
CE & Rohs, ETL, cecl, DLC 5.1 Premium
6.65 kg
5 ans
Fiche Technique PDF
Fiche Technique PDF
Adjustable power
100 Watts
150 Watts
200 Watts
Lumens
18 000 lumens - 100W
25 500 lumens - 150W
32 000 lumens - 200W
Lumens / Watt
100W : 180 Lumens/Watt
150W : 170 Lumens/Watt
200W : 160 Lumens/Watt
Angle
150 x 90°
Rules
IP66
RA
> 80
PF
> 0,95
Protection de surcharge
6KV / 10KV
Couleur d'éclairage ajustable
(bouton sur la lampe pour modifier la couleur)
3000k / 4000k / 6000k
Supply voltage
AC 100 - 277V
Minimum lifespan
100,000 Hours
Fréquence
50 - 60Hz
Material
Aluminium moulé sous pression
LED Name
336 pieces
Type de LED
Philips Lumileds SMD 3030
Transformateur
BQ Driver
Color
Dark bronze
Operating temperature
-40°C / 50°C
Storage temperature
-40°C / 70°C

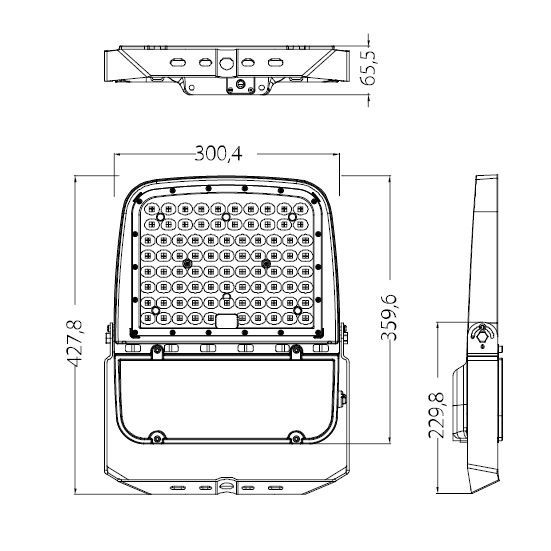

Dimensions produit
42,7 x 30 x 6,5 cm
Dimensions emballage
61 x 34,5 x 12,5 cm
Dimmable
0 à 10V
Certification
CE & Rohs, ETL, cecl, DLC 5.1 Premium
Poids
6.65 kg
Garantie
5 years
Technical sheet
Fiche Technique PDF
IES file
Fiche Technique PDF
