Series OVALI BASIC

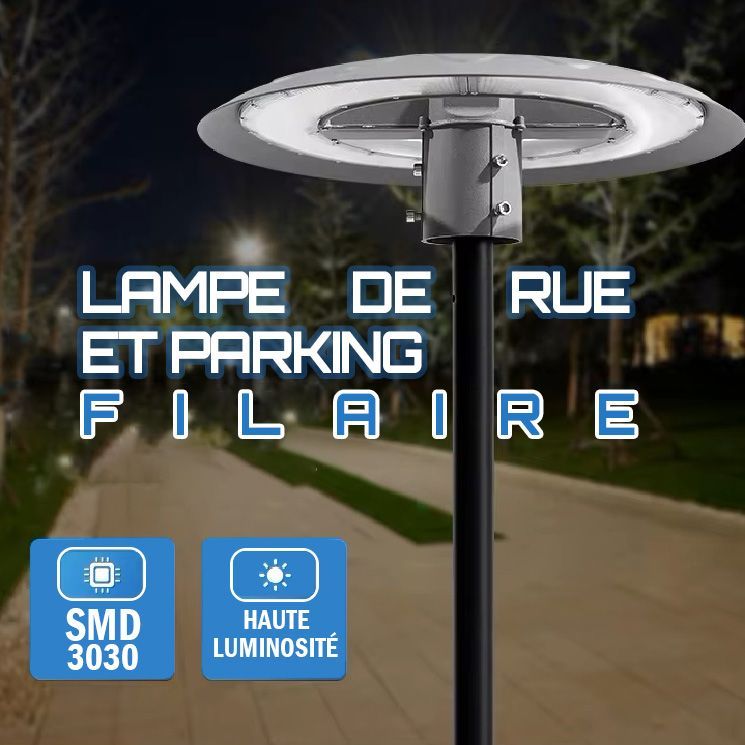

Wired street lamp and parking lot
OVALI BASIC Series

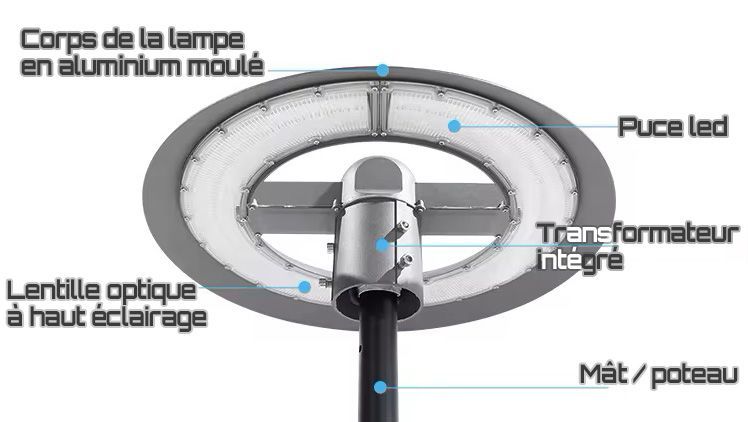

1 - Characteristics and application: This product is a patented model, with high-end atmosphere, beautiful structure and superior performance. The entire lamp is made of high-purity aluminum, which has a strong and durable structure and good heat dissipation, effectively extending the service life of the lamp. This product is IP65 protection grade, making it easy to install and maintain.


2 - Characteristics of the light source:

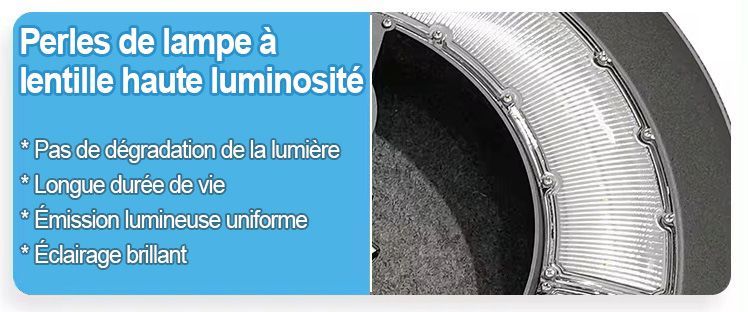

Using famous brand SMD-3030 light source, featuring high brightness, low light attenuation and long service life.

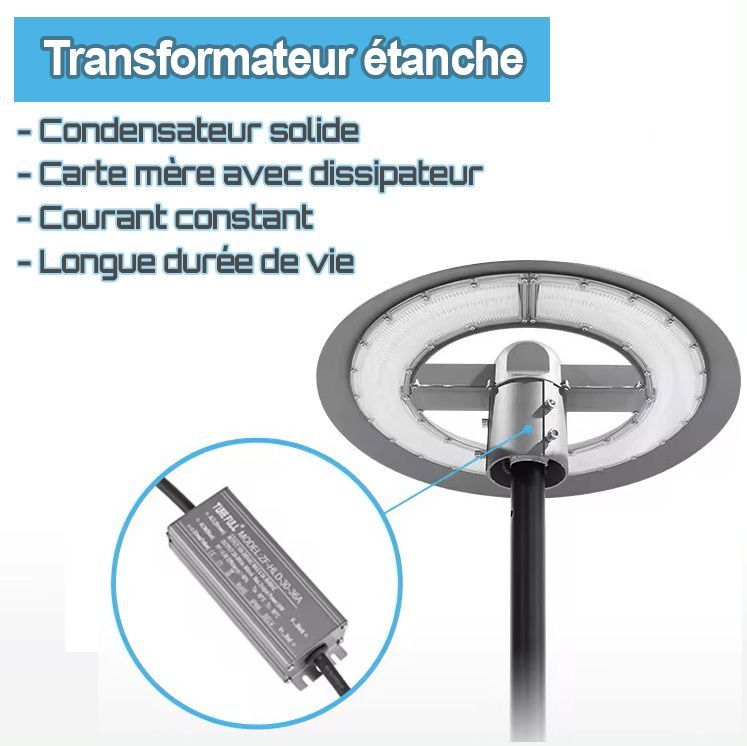

3 - Power supply characteristics:

Adopting high stability isolated power supply.


4 - Heat sink characteristics:

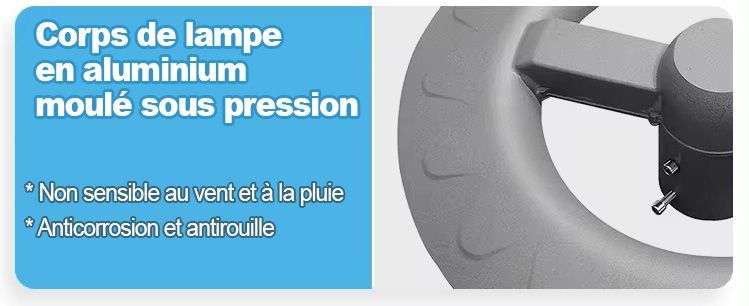

Using high-purity aluminum radiator with high thermal conductivity. The radiator is specially designed with full consideration of aerodynamics and hydromechanics, maximizing the heat dissipation area and heat exchange efficiency with hot and cold air. This can effectively dissipate the heat generated by the light source and maintain a reasonable temperature, thereby ensuring the stability of product functions and extending its service life.

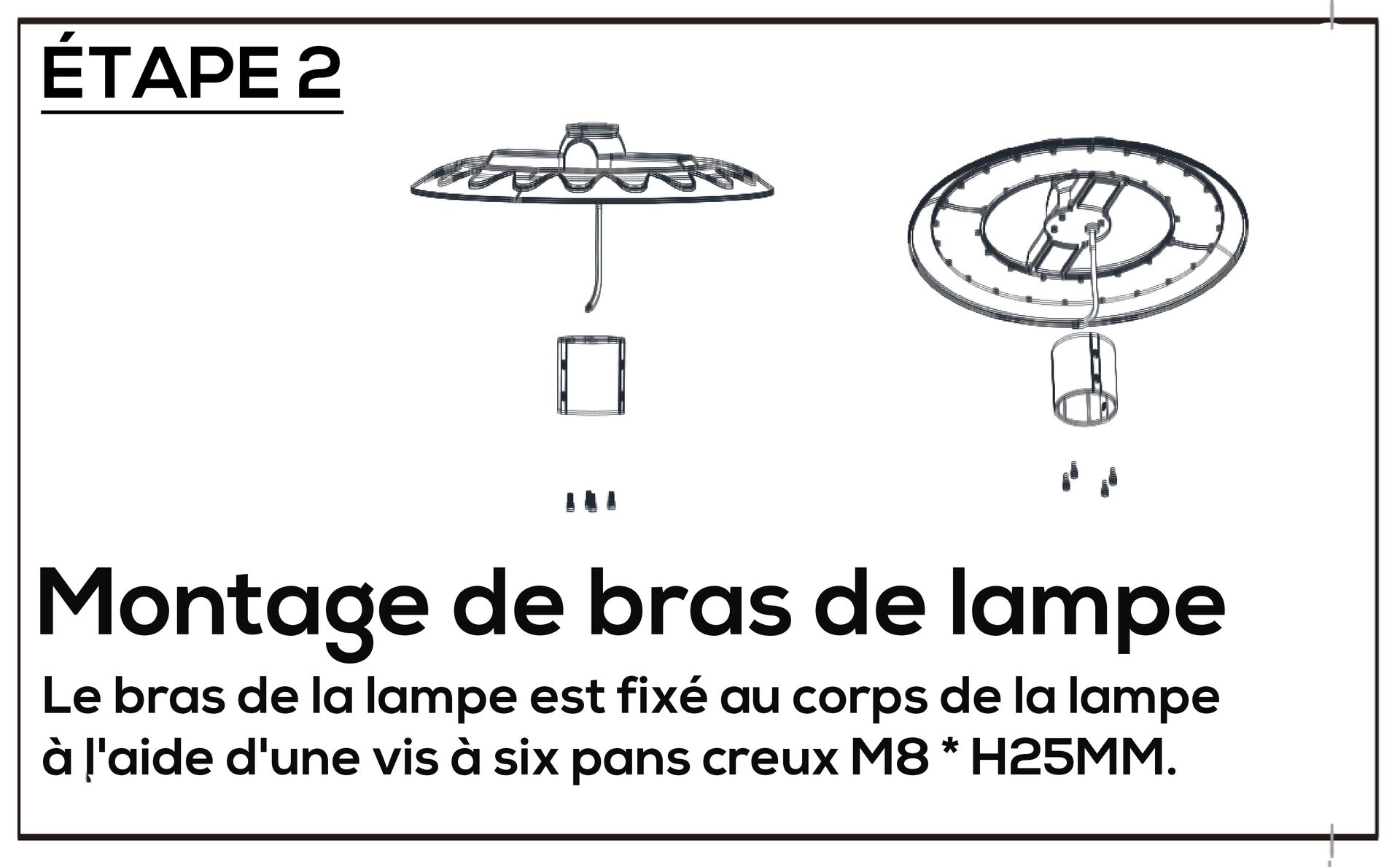

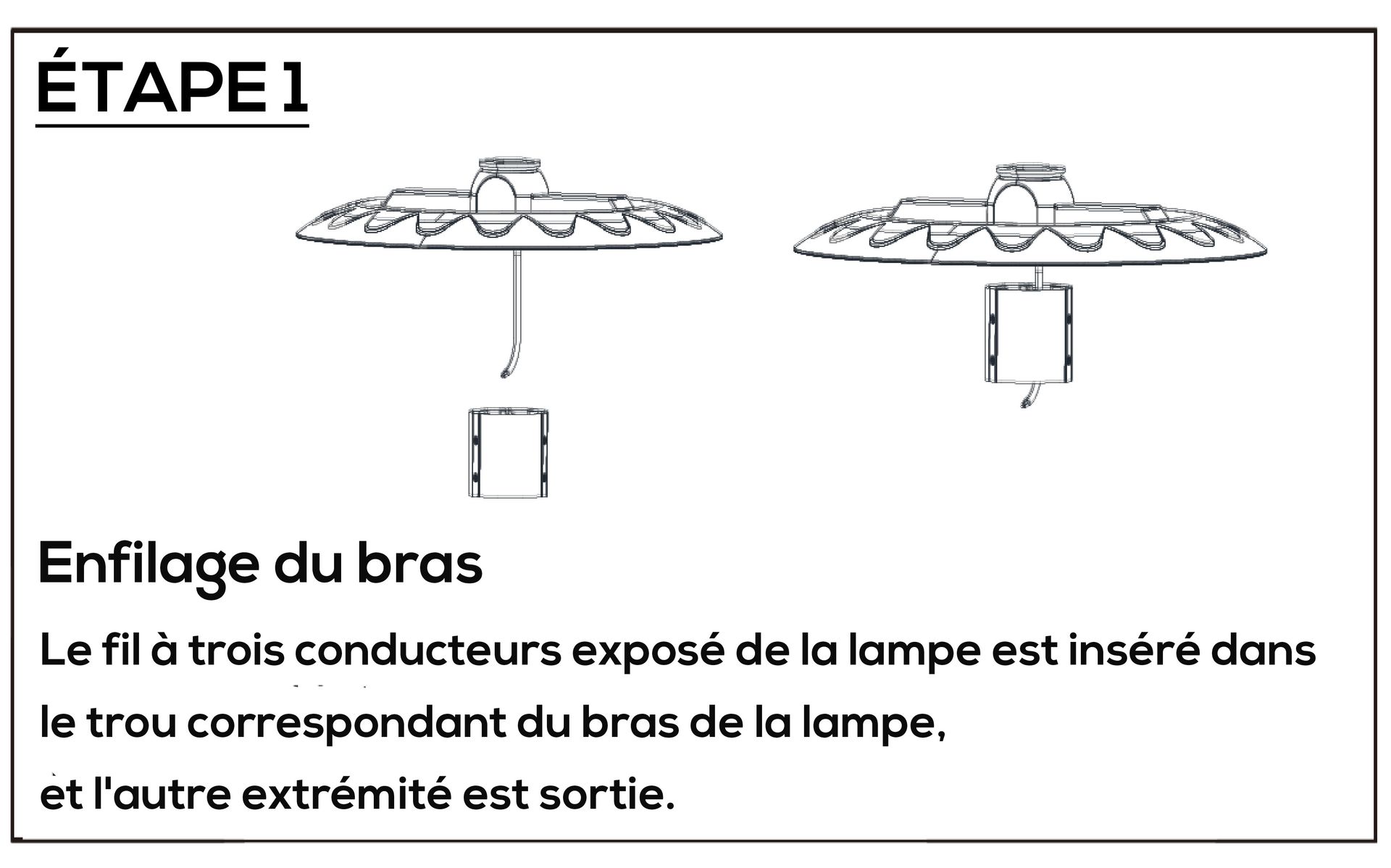

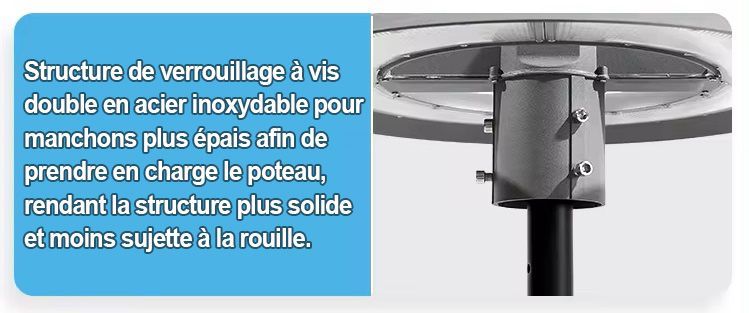

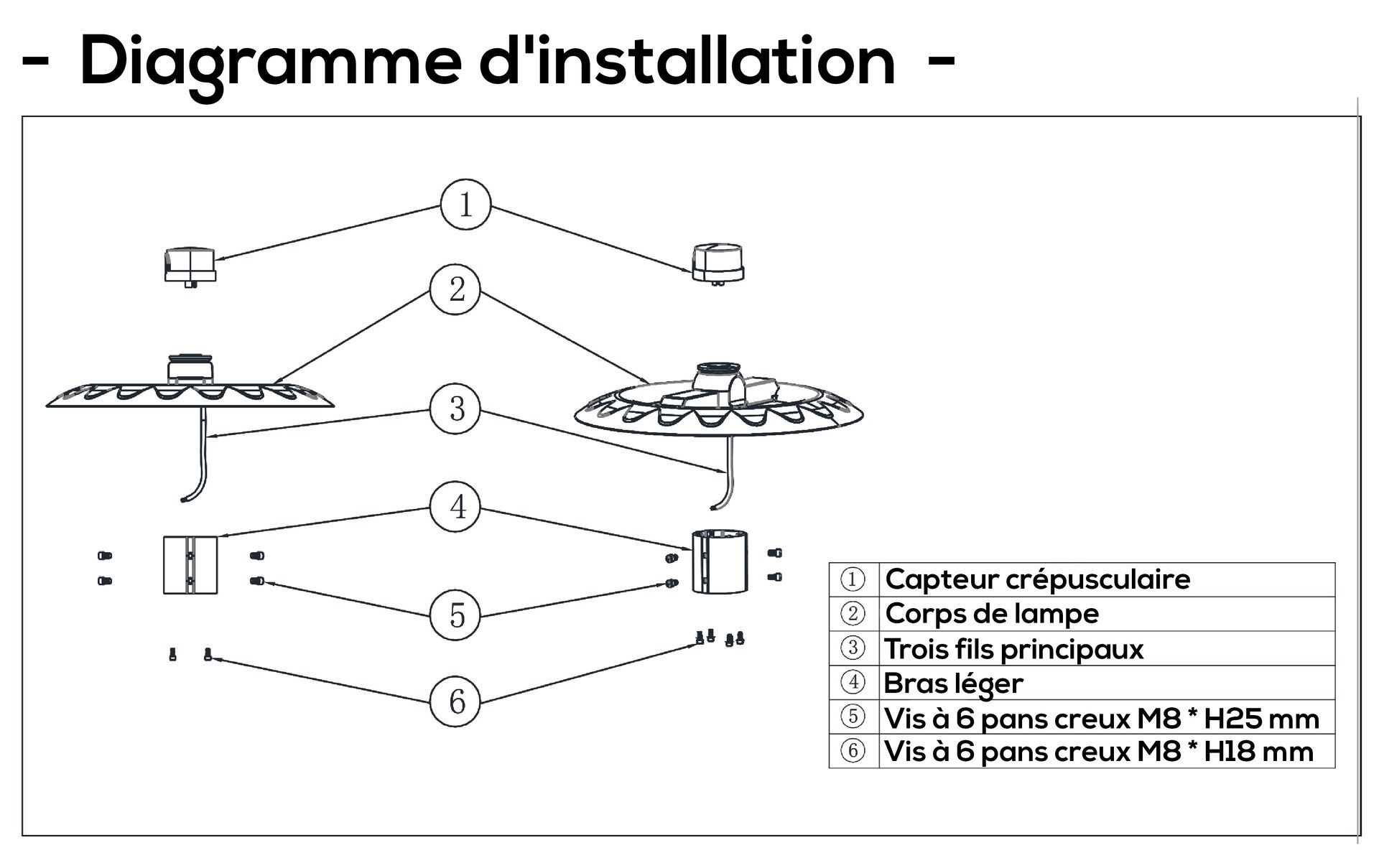

5 - Installation mode:

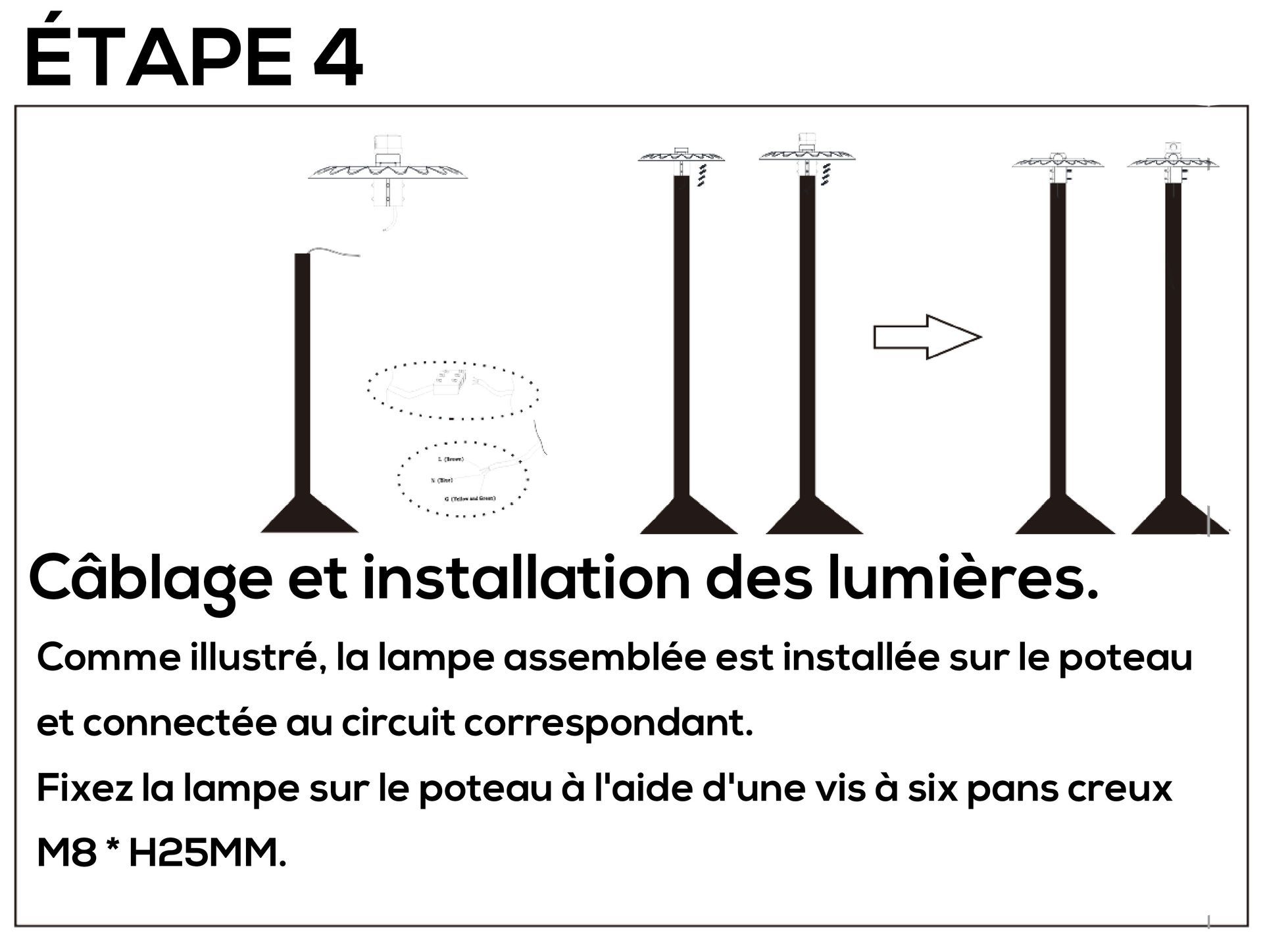

Installation on a lamp post.

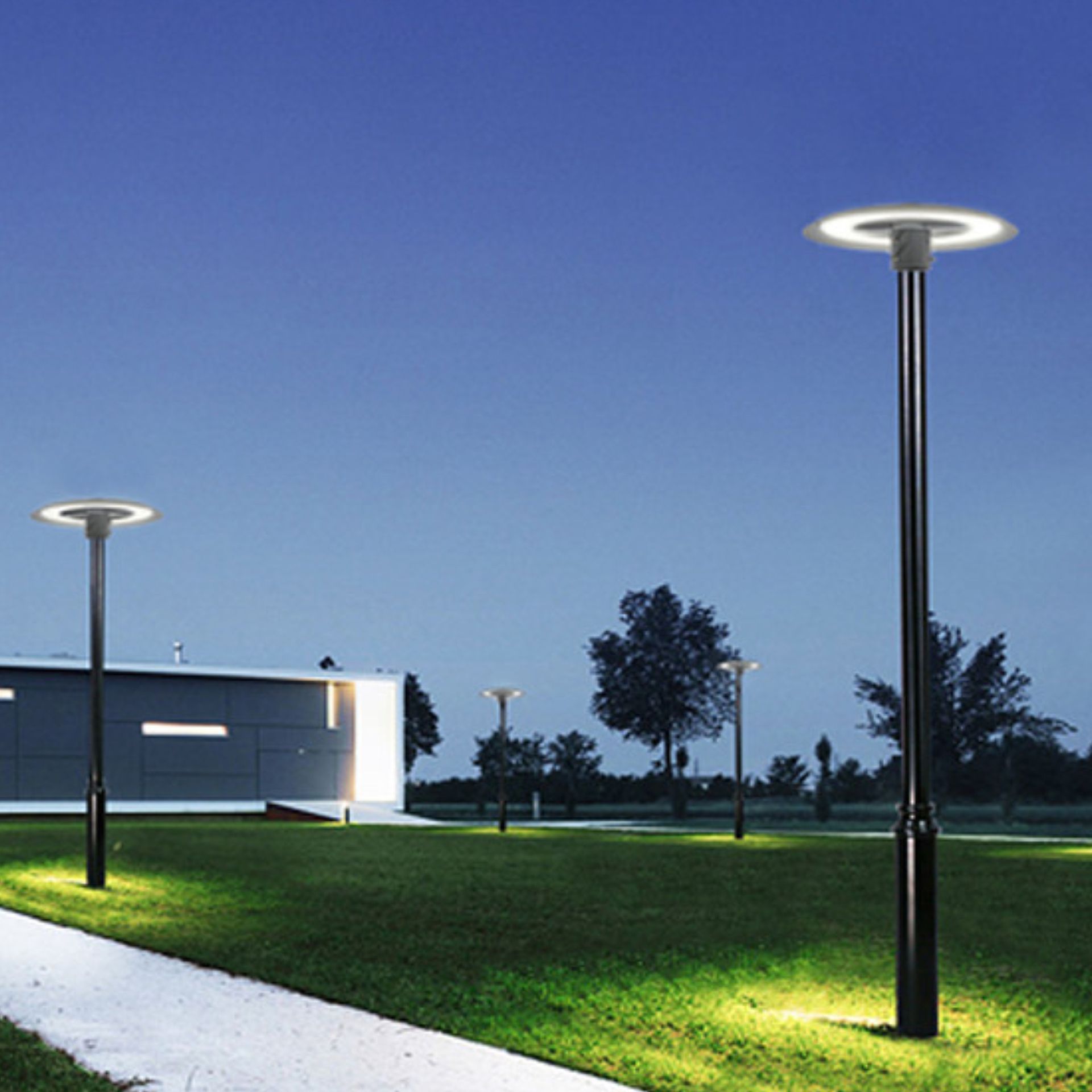

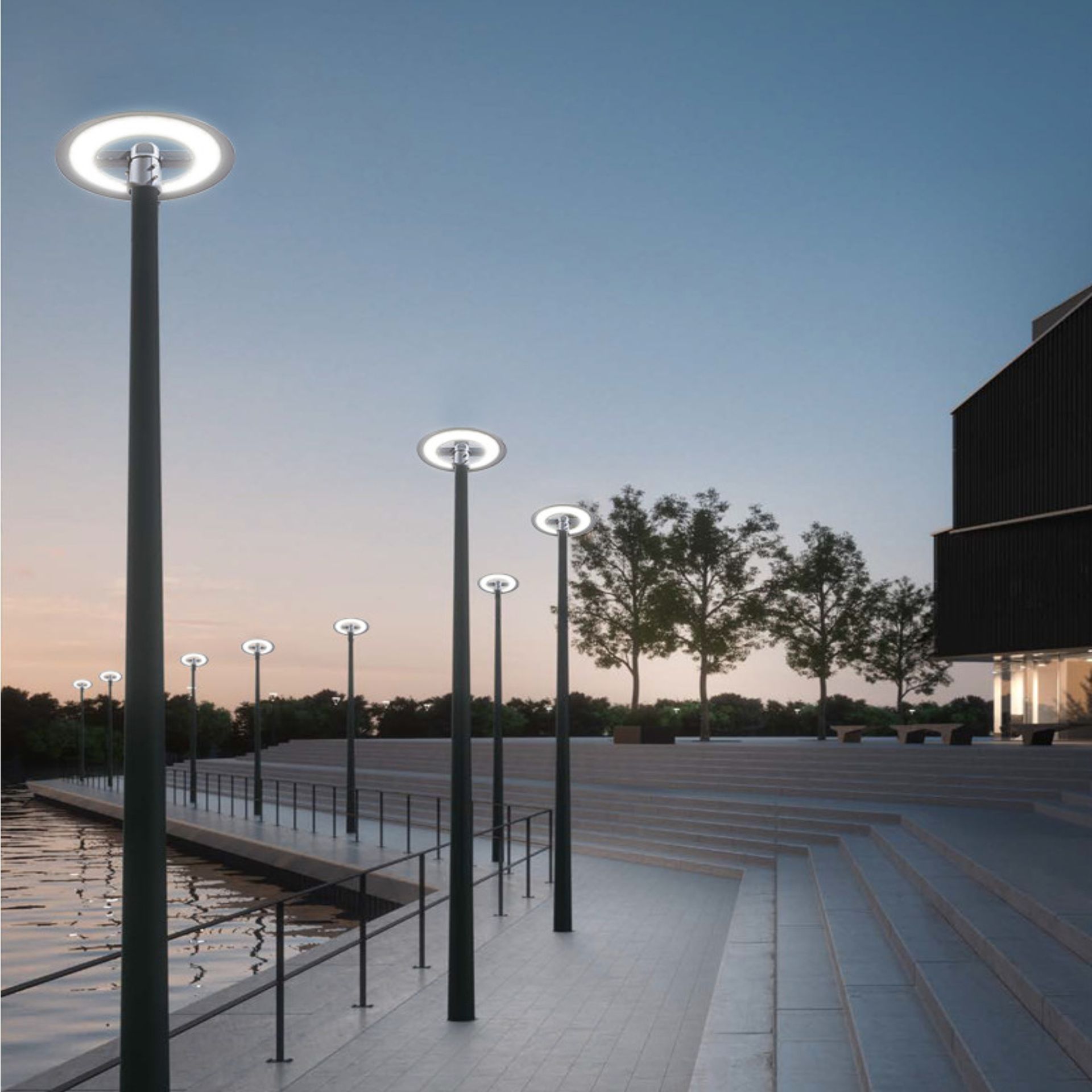

6 - Application of the product:

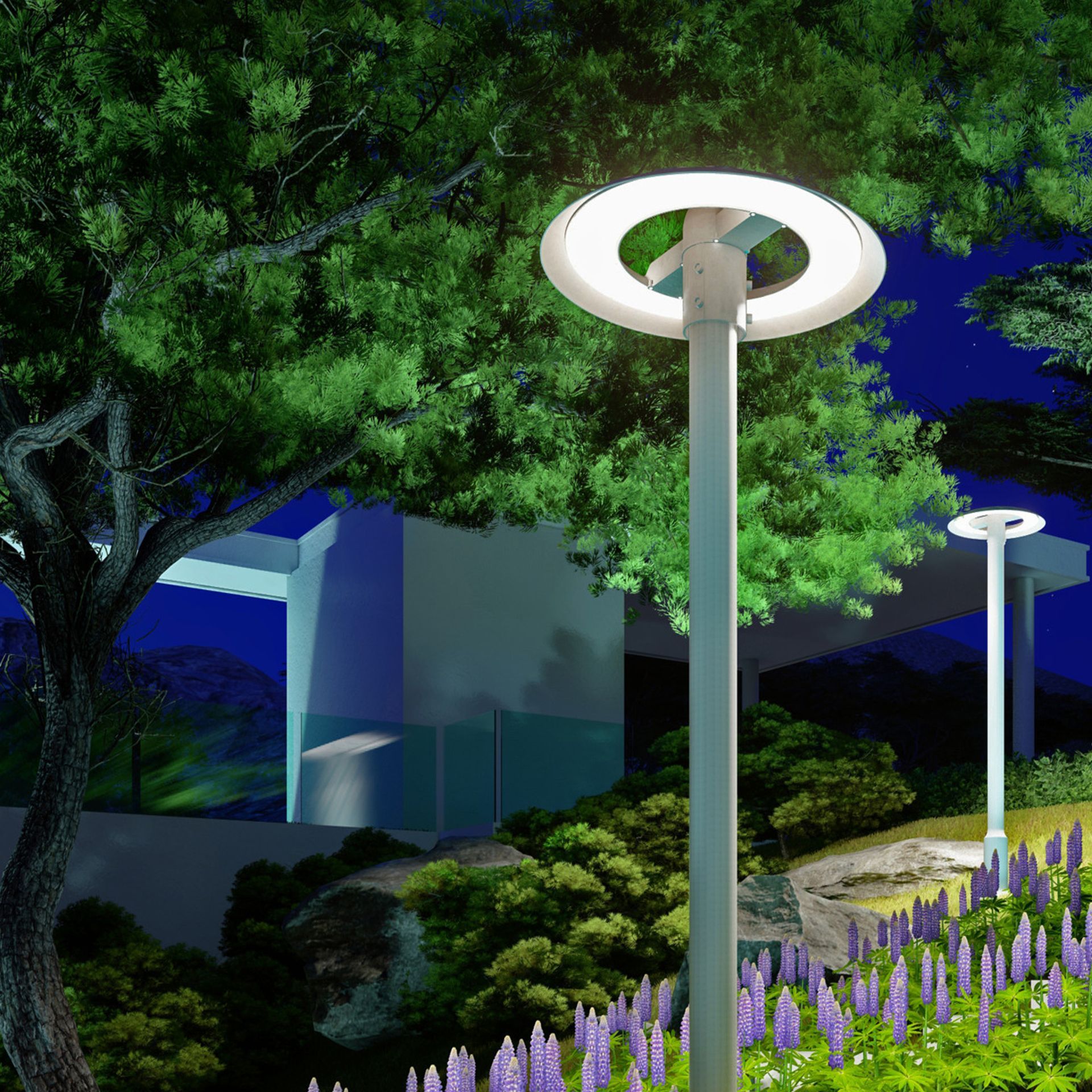

This product is widely used for road lighting on one side or both sides of public places such as slow lanes, narrow alleys, residential areas, tourist attractions, parks, squares, private gardens, courtyard corridors, etc.


Spécifications techniques générales
Power
Lumens
Lumens/Watt
Norme
Angle
RA
PF
SDCM
THD
Energy efficiency
Surge protection
   Classe de protection
Supply voltage
Minimum lifespan
Fréquence
Lighting color
Material
Nombre de LEDs
Type de LED
Operating temperature
Hauteur d'installation maximum recommandée

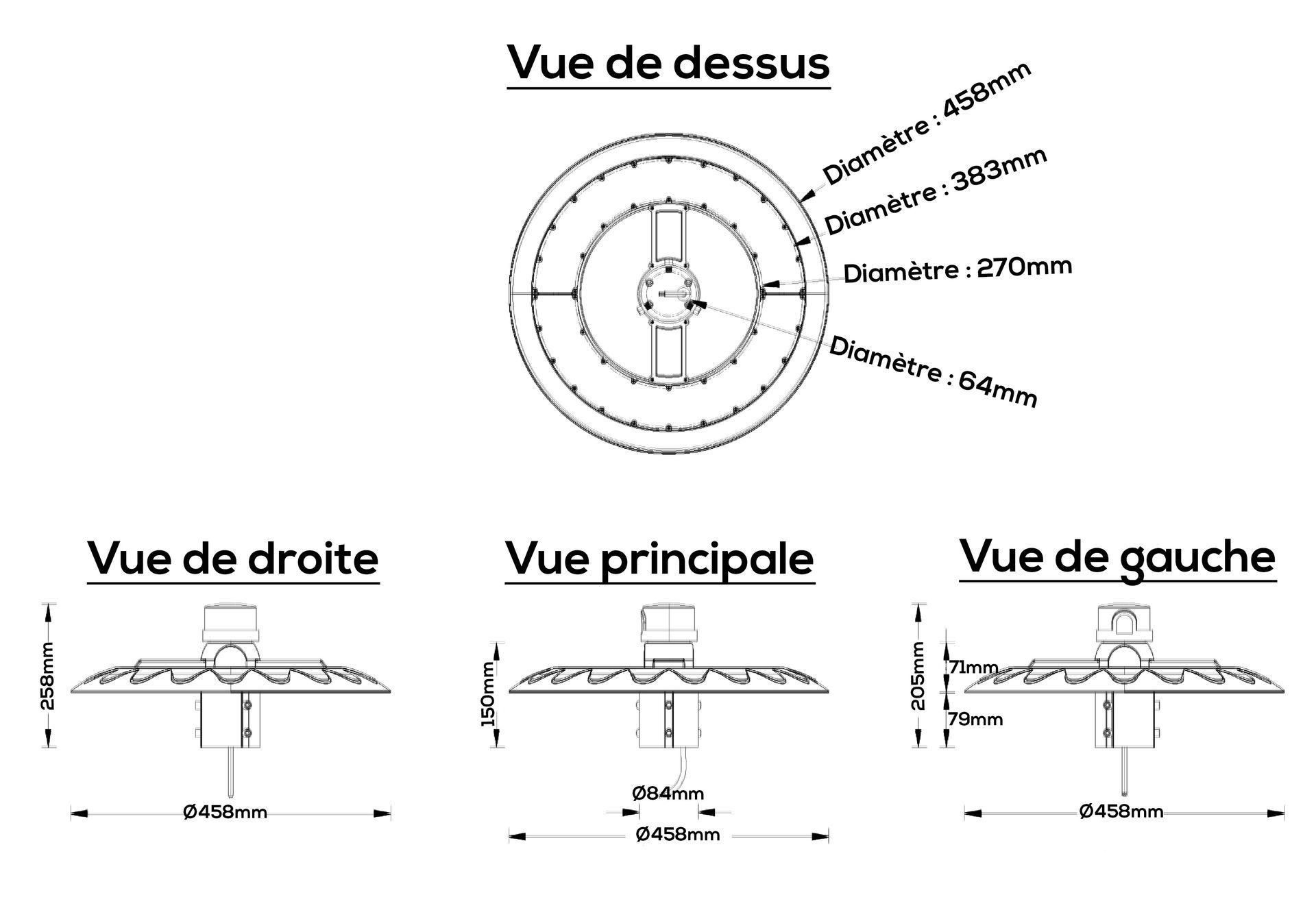

Dimensions
Tube d'insertion
Certification
Poids
Guarantee
Fiche Technique
100 Watts
12 000 Lumens
120 Lumens/Watt
IP65
360°
> 70
0,9
≤ 10
≤ 15%
≥ 85%
4KV
Classe I
AC100 - 305V / Constant current isolation
50,000 Hours
50 - 60 Hz
3000k
Aluminium PC
120 pieces
SMD3030
-25℃ / 40℃
6 meters
458 x 205 mm
60 mm
CE & ROHS
3 kg
2 ans
Fiche Technique PDF
Power
100 Watts
Lumens
12 000 Lumens
Lumens/Watt
120 Lumens/Watt
Rules
IP65
Angle
360°
RA
> 70
PF
0,9
SDCM
≤ 10
THD
≤ 15%
Energy efficiency
≥ 85%
Overload protection
4KV
Protection class
Classe I
Fréquence
50 - 60 Hz
Supply voltage
AC100 - 305V / Constant current isolation
Minimum lifespan
50,000 Hours
Lighting color
3000k
Materials
Aluminium PC
Nombre de LEDs
120 pieces
Type de LED
SMD3030
Operating temperature
-25℃ / 40℃
Hauteur d'installation maximum recommandée
6 meters
Dimensions
458 x 205 mm
Tube d'insertion
60 mm
Certification
CE & ROHS
Poids
3 kg
Garantie
2 ans
Technical Sheet
Fiche Technique PDF
