STANDARD V3 Series

Street lamp pole / post
New design
STANDARD V3 Series

Once equipped with lighting, this mast, 3/4/5/6 meters long for the black model and 3/4 meters for the gray model, can illuminate the street, garden, path or parking lot. Its black color blends discreetly into the landscape, making this support a functional and space-saving product. It is delivered in its original box in the form of parts to be assembled with its manual and the complete set of screws for installation.


Outdoor lamp holder


This pole is designed to accommodate a projector, a spotlight or a lantern. Because it is intended for outdoor access areas, it is made of consolidated aluminum materials that are resistant to humidity, temperature changes and possible shocks. The assembled product weighs a total of 13 kilos for the 3 meters, 18.5 kilos for the 4 meters, 20.5 kilos for the 5 meters and 26 kilos for the 6 meters. It is easily transported and can be installed by a single adult. The fixed crosspiece for placing the lighting is perfectly stable. It is a tube of a standard size that can accommodate different types of outdoor lamps in complete safety.


Easy installation without major work

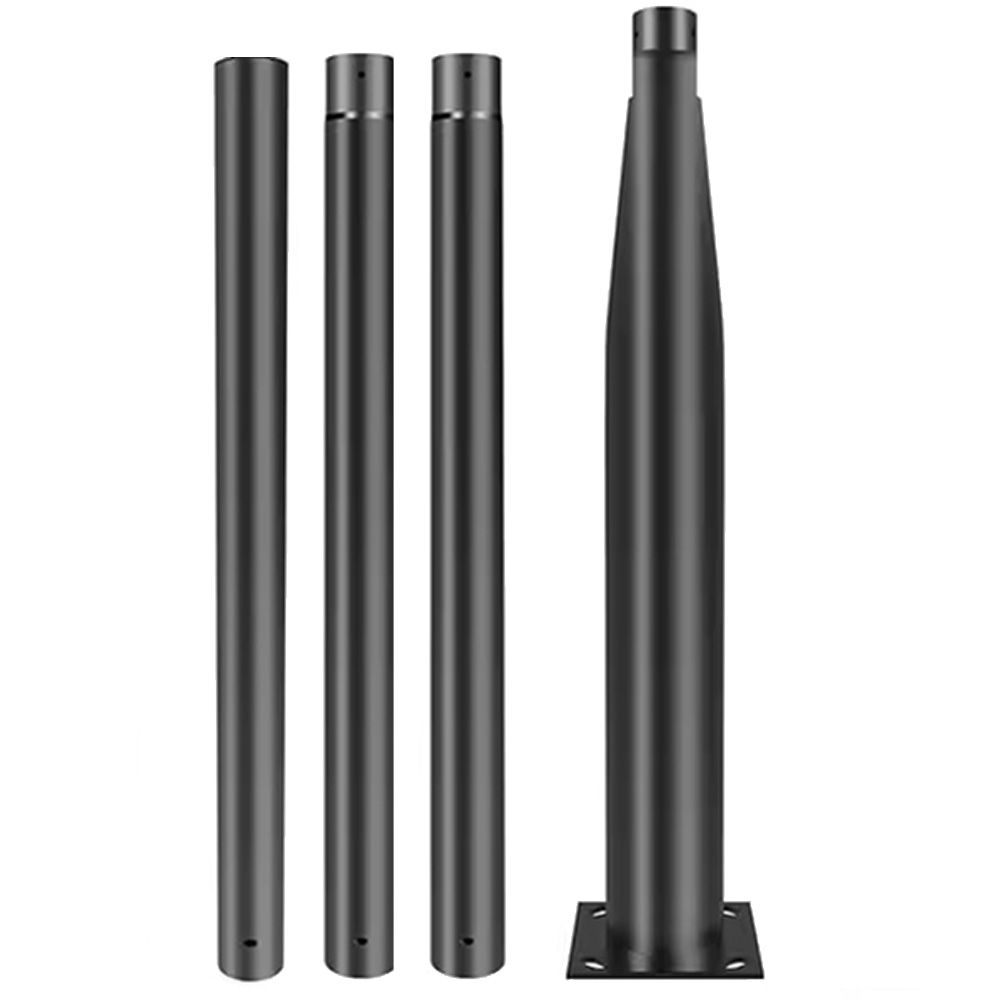

The post is delivered in 4 parts. The assembly is done by fitting the parts together. Installation is simple. Once you have determined the place where you want to place your outdoor lighting, all that remains is to fix the previously assembled mast. No need to plan major works. The fixing screws necessary to establish the base in the location of your choice are included in the pack. This model is suitable for sealing in a concrete block. In this case, it is preferable to use the appropriate anchor rods.

General Technical Specifications
Diameter of insertion tube
Mounting base
Hole spacing
Material
Color
Certification
Maximum recommended weight
Pole delivered in 3 / 4 / 5 interlocking sections
Mat 3 meters
Mat 4 meters
Mat 5 meters
Mat 6 meters
Ground fixing screws
Datasheet PDF
 76 mm
200 x 200 mm
200 mm
Galvanized steel Q235
Matte Black / Gray
CE & RoHS
15kg
Once assembled, they cannot be disassembled
- 1x Base - 1 meter / Diameter 114 mm
- 2x interlocking tubes - 1 meter / Diameter 76 mm
- 1x Base - 1 meter / Diameter 114 mm
- 3x nestable tubes - 1 meter / Diameter 76 mm
- 1x Base - 1 meter / Diameter 114 mm
- 4x interlocking tubes - 1 meter / Diameter 76 mm
- 1x Base - 1.2 meters / Diameter 114 mm
- 4x nestable tubes - 1.2 meters / Diameter 76 mm
Included
Datasheet PDF
Insertion tube diameter
 76 mm
Mounting base
200 x 200 mm
Hole spacing
200 mm
Material
Galvanized steel Q235
Color
Matte Black / Gray
Certification
CE & RoHS
Maximum recommended weight
15kg
Pole delivered in 3 / 4 / 5 interlocking sections (Once assembled, they cannot be disassembled)
Mat 3 meters
1x Base - 1 meter / Diameter 114mm
2x Stackable tubes - 1 meter / Diameter 76mm
Mat 4 meters
1x Base - 1 meter / Diameter 114mm
3x Stackable tubes - 1 meter / Diameter 76mm
Mat 5 meters
1x Base - 1 meter / Diameter 114mm
4x Stackable tubes - 1 meter / Diameter 76mm
Mat 6 meters
1x Base - 1.2 meters / Diameter 114mm
4x interlocking tubes - 1.2 meters / Diameter 76mm
Ground fixing screws
Included
Datasheet PDF
Datasheet PDF
3 meters

Height: 3 meters

Weight: 13kg

Box size

110 x 24 x 23 cm

4 meters

Height: 4 meters

Weight: 18.5kg

Box size

111 x 24 x 23 cm

5 meters

Height: 5 meters

Weight: 20.5kg

Box size

111 x 24 x 23 cm

6 meters

Height: 6 meters

Weight: 26kg

Box size

132 x 24 x 23 cm
