SECURITY Series

Solar LED floodlight - SECURITY series 6000k - Monocrystalline solar panel Infrared detector - Remote control

The SECURITY series solar LED floodlights are equipped with an infrared detector. They are perfect for illuminating and securing outdoor environments such as gardens, parking lots, facades, entrances, etc. The floodlight and its photovoltaic panel are simply installed in a location well exposed to sunlight. When the daylight fades, the light turns on by itself and turns off in the early morning. The detector activates full light when movement is detected within a radius of 8 meters.

Autonomy greater than 30 hours

With a full battery, the SECURITY projector can operate for more than 30 hours. Optimize the life of your lamp by taking advantage of the lighting options offered. Choose the lighting duration that suits you (from 3 to 8 hours), you can then customize the brightness level as you wish. All selections can be made remotely using the multi-function remote control supplied without the pack. The AUTO button activates the automatic lighting mode. Thanks to the integrated infrared motion detector, the lighting controls itself: the light turns on at its maximum to signal movement in the detection zone then returns to its initial level after 60 seconds of calm.

Power and flexibility

The SECURITY solar floodlight has LEDs to provide light output with a color temperature of up to 6000 K. Its high-quality LiFePO4 battery guarantees perfectly uniform and constant brightness in both constant lighting mode and energy-saving mode. The minimum lifespan for this series is over 50,000 hours, or more than 5 years, with no additional costs to be expected for your outdoor lighting system. Ultra-practical. The lighting angle and direction can be configured according to your needs over a 360° angle.

Simplified installation

All the accessories you need to set up the floodlight are delivered together. Allow a charging time of 4 to 6 hours (full sun) to obtain a full charge. Once installed, press the power button located on the body of the lamp and the floodlight will be immediately operational. The recommended installation height for this series of solar floodlights is 5 meters. The product can be fixed on a wall, a facade or a pole depending on the available infrastructure. There is no need to provide any connection other than that of the panel to activate the solar system. SECURITY floodlights are completely autonomous and only need the power supply of the sun's energy to light up your home all year round.

POINTS FORTS

- New modern and simple design with patent protection.

- Super bright, professional lighting distribution with 120°*60° angle, achieving much larger lighting area.

- The specific optical lens makes the output lighting uniform and comfortable.

- The solar panel is 170° adjustable for maximum solar charging flexibility.

- The lamp holder is 360° adjustable to easily define the desired lighting direction and area.

- Optional operation modes by remote control, customized lighting duration and brightness for diversified use.

- Grade A monocrystalline solar panel with laminated glass, large size, 21%+ high conversion for faster charging, 20 years+ lifespan.

- Latest generation LiFePO4 battery of high quality with large capacity, 2000 cycles, with overcharge protection, safe and durable.

- LG brand ABS+PC housing, anti-UV, fireproof, safety guaranteed.

- 5 meters long connection cable with IP67 waterproof connector, strong and durable.

- IP65 waterproof.

MULTIFUNCTION REMOTE CONTROL

OPERATING MODE

Please press the lamp button first, the lamp will automatically turn on and enter the auto-sensing mode, and the remote control will be activated at the same time.

Then please use the remote control to set the desired working mode.

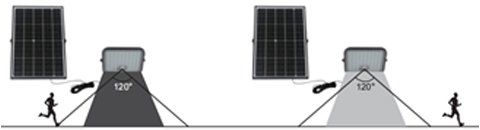

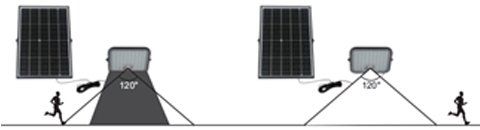

AUTOMATIC DETECTION MODE

When the battery power is greater than 30%:
The light automatically turns on at night and switches to full brightness when motion is detected within the 8 meter detection zone, then switches to a lower brightness after 60 seconds of no motion.

When the battery power is less than 30%:
The light automatically turns on at night and switches to full brightness when motion is detected within the 8 meter detection zone, then turns off after 60 seconds of no motion.

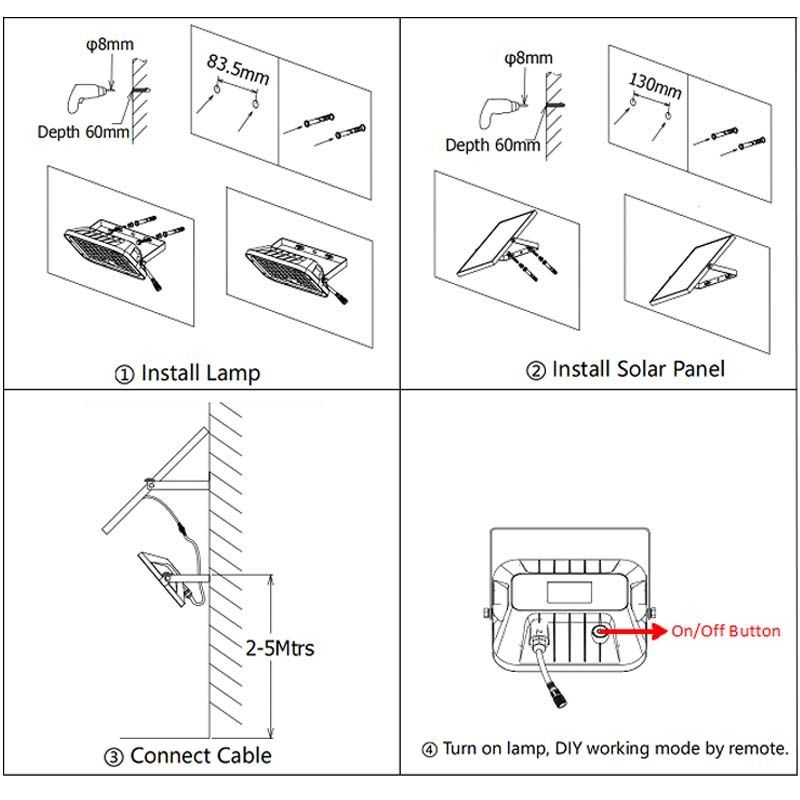

INSTALLATION

Prepare the lamp, accessories and tools well, confirm the installation location and wire length.


① Drill 2 holes of Φ8mm with a depth of 60mm and a spacing of 83.5mm on the wall, fix the lamp on the wall with expansion anchors and screws.


② Drill 2 holes of Φ8mm with a depth of 60mm and a spacing of 130mm on the wall, fix the solar panel to the wall using expansion plugs and screws.


③ Connect the solar panel wire to the lamp and screw it tightly.



④ Press the button on the lamp to activate the remote control, and then use the remote control to set the desired working mode.

Technical specifications

  • Slide Title

    Écrivez votre légende ici
    Button

  • Slide Title

    Écrivez votre légende ici
    Button
Angle
Adjustable solar panel angle
Adjustable lamp angle (Bracket)
Standard
Lighting color
Material
Minimum lifespan
Frequency
LED type
Dimensions
Cable length
Mode
Charging time
Lighting duration
Operating temperature
Storage temperature
Certification
Warranty
Included in the box
Datasheet PDF
120° x 60°
170°
360°
IP65
3000k / 4000k / 6000k
ABS PC, aluminum support, anti-UV and fire-resistant
50,000 Hours
50 - 60 Hz
SMD2835
- Lamp: 144 x 153 x 31.5 mm
- Adjustable solar panel: 221 x 186 x 24 mm
5 meters - IP67
- Sensor mode

- Permanent lighting mode

- Adjustment of brightness and lighting duration by remote control
4 - 6 Hours in strong sunlight for a full charge
> 30 Hours
-20°C / 60°C
0°C / 45°C
CE & ROHS
 3 years
1x Lamp / 1x Solar Panel / 1x Remote Control / 1x User Manual / 4x Screws
Fiche Technique PDF
Angle :
120° x 60°
Adjustable solar panel angle
170°
Adjustable lamp angle (Bracket)
360°
Rules
IP65
Lighting color
6000k
Matériau
ABS PC, aluminum support, anti-UV and fire resistant
Minimum lifespan
50,000 Hours
Fréquence
50 - 60 Hz
Type de LED
SMD2835
Cable length
5 meters - IP67
Charging time
4 - 6 Hours in strong sunlight for a full charge
Lighting duration
> 30 Hours
Operating temperature
-20°C / 60°C
Storage temperature
0°C / 45°C
Certification
CE & ROHS
Weight
1.6kg
Guarantee
3 years
Included in the box
1x Lamp / 1x Solar Panel / 1x Remote Control / 1x User Manual / 4x Screws
Technical Sheet
Fiche Technique PDF
DETAILS BY POWER
Luminous renduring 150 watts
Solar panel: 4.5W / 5.5V - Monocrystalline silicon
Battery: LiFePO4 / 18650 / 3.7V 3600mAh / 13.32Wh
Number of LEDs: 44 pieces
Lamp: 144 x 153 x 31.5 mm
Adjustable solar panel: 221 x 186 x 24 mm
Motion detector: 180° / Range 6 meters
Weight: 1.6kg
Reference: SECURITY 150 Watts Series
Luminous renduring 300 watts
Solar panel: 12.5W / 10V - Monocrystalline silicon
Battery: LiFePO4 / 32700 / 6.4V, 6000mAh / 38.4Wh
Number of LEDs: 90 pieces
Lamp: 199 x 189 x 49 mm
Adjustable solar panel: 254 x 350 x 41 mm
Motion detector: 180° / Range 8 meters
Weight: 1.62kg
Reference: SECURITY 300 Watts Series
